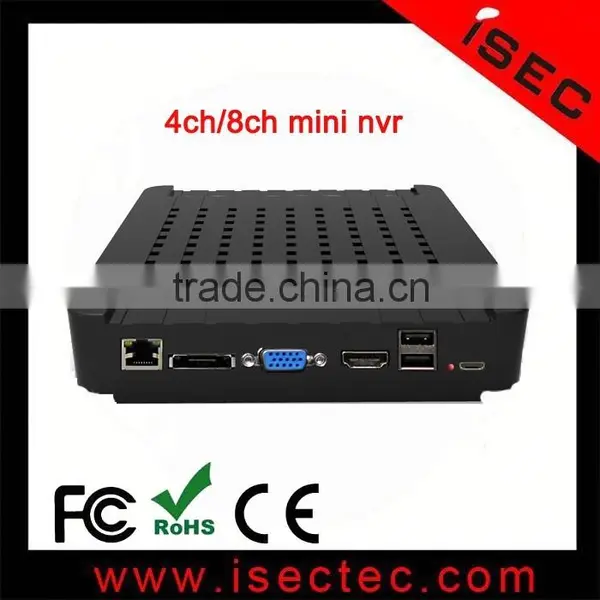

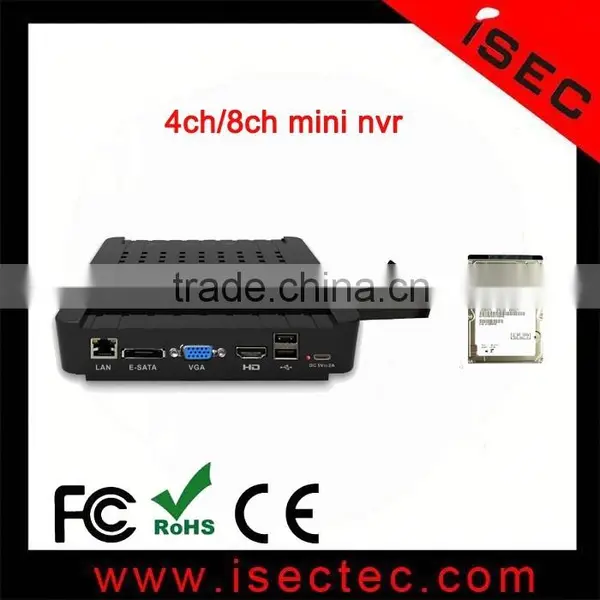

Small 4ch/8ch 1080p super mini nvr for ip securiry system
Features
> Support ONVIF version2.0 and above version, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
> H.264 codec decoding
> P2P cloud service to access IPC and NVR at any time and any place
> Preview channel can be switched to other channel randomly without changing the MAC
which is convenient for the project construction
> The dendritic menu can be moved. Man-machine communication is more direct and the
settings of parameters are more easy and convenient
> The mouse roller can realize 15X digital zooming which the enlarged image can be
dragged and moved randomly under preview and playback modes
> Immediate snapshot and immediate view the picture will be stored in an independent
area in the HDD
> Smart phone monitoring, such as iPhone, iPAD, android, Windows Mobile, BlackBerry, Symbian, smart phone
> The recording playback is shown by time bar and different color represents different
recording type. It is very fast and easy to find check the recording
> Recording backup can be accurate to second. Any time period of backup is available
> The recording files in the USB disk can play directly in the playback interface while the
snapshot pictures can be viewed directly
> Standard resolution which can be adjusted according to the display device in order to get
the best image quality
> Adopt HDD sequence writing method and the data is written from 0 track which
increase 2.5X lifetime of the HDD
> Via IE, Chrome, Firefox, remote visit and operate NVR
> Friendly and humanized menu interface, easy to operate
> Search, playback and backup by event
> WIFI and 3G wireless connection to internet
> Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream and 4 channels playback
> Multi-Language menu interface, support English, French, Spanish, Portugal, Korean, Russian, German, Turkey, Hebrew, Dutch, Italian, Farsi, Thai, Hungarian, Czech, Romanian, Kazakhstanmore language can be customized.
Pictures
Specifications about Small 4ch/8ch 1080p super mini nvr for ip securiry
Model |
IC-NVR3204 |
IC-NVR3208 |
Main Processor |
Hi3515A |
Hi3520D |
Operating system |
Embedded LINUX OS |
|
Video compression format |
H.264 |
|
IP camera input |
4ch channel |
8ch channel |
Operation Mode |
live view, record, playback, backup, network |
|
HDMI output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
|
VGA output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
|
Live view channel |
4ch 1080P simultaneously |
8ch 1080P simultaneously |
Record channel |
4ch 1080P simultaneously |
8ch 1080P simultaneously |
Playback channel |
4ch 720P or 1ch 1080P simultaneously |
|
Record resolution |
1080P/960P/720P/D1/HD1/CIF |
|
Recording model |
Manual/Schedule/Motion Detection/alarm |
|
Recording Search |
Time Point / Calendar / Event / Channel |
|
Audio Input |
4ch IPC Composite Audio Input |
8ch |
Audio Output |
1CH, RCA (2.0Vp-p, 1KΩ) |
|
Two-way Talk |
1 channel Input( Linear electrical level , impedance : 1kΩ), 1 channel Output, RCA |
|
Alarm Input |
N/A |
|
Alarm Output |
N/A |
|
Search method |
Time, Event, Channels and Calendar |
|
Display Split |
1/4/16/25 channel |
1/4/9/16/25/36 channel |
NETWORK protocol |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE, NTP, WIFI, 3G |
|
Network |
RJ45 10M / 100M / 1000M adaptive Ethernet port |
|
Backup |
HDD, USB Flash Disk, USB DVD-RW |
|
USB |
2*USB2.0 port |
|
HDD |
1pcs 2.5" SATA HDD, 1pcs E-SATA HDD, each port support max 4TB HDD |
|
eSATA port |
Yes |
|
Power supply |
2A Power supply, 50-60Hz |
|
power consumption(without HDD) |
≤50W |
|
Operation temperature |
0℃-+55℃ |
|
Operation humidity |
10%-90% |
|
Demension(W*D*H) |
162*162*35mm |
|
Weight(net/gross weight) |
0.28/0.7kg(without HDD) |
|
