Specifications
nvr system for ip cameraSupport 2pcs*3T SATA HDD
P2P, 4ch alarm, 4ch audio
4ch 1080P Playback
Free CMS for 256ch IP cam

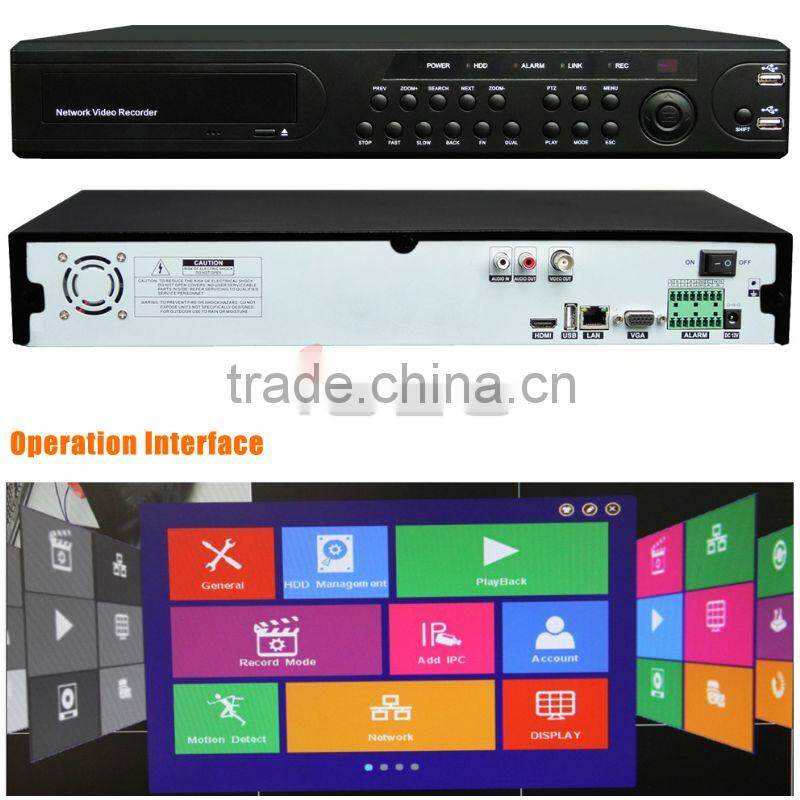

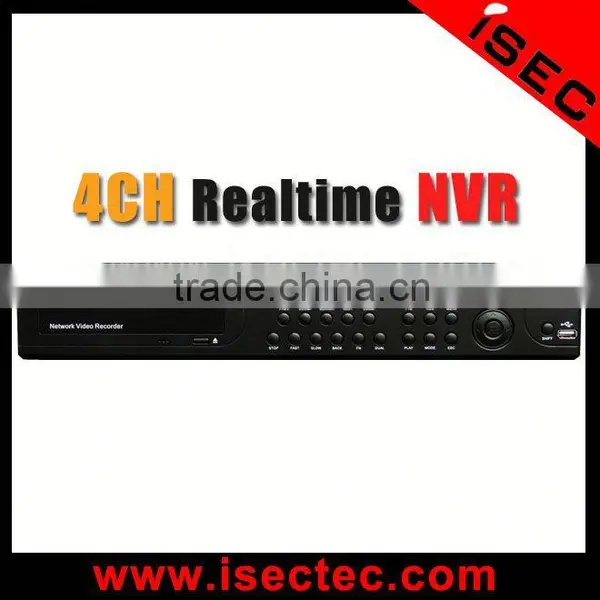

Real time recording 1920*1080P supporting p2p 4ch nvr system for ip camera
nvr system for ip camera
Features
♦ Product type: nvr system for ip camera
♦ Supports ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers.
♦ P2P function, a key to the Internet
♦ Humanized design, easy to operate;
♦ Supports a variety of mobile devices;
♦ Gigabit Ethernet port (optional);
♦ HD video, HD playback;
♦ Support dual-stream; support 4ch 1080P playback simultaneously;
♦ Support zoom in. Simple and beautiful software management interface (similar to win 8) .
♦ CMS centralized network management software, 256 free access.
Pictures
Specifications
| Product Type | nvr system for ip camera | |
| Model No. | IC-NVR1104 | |
| System | Main Processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS | |
| Video spec. | Video compression format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
|
| Privacy Masking | depends on ipc | |
| Audio spec. | Audio compression format | adpcm |
| two-way audio | 1ch | |
| Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Recording Playback | 4ch 1080P synchronously playback | |
| Backup Mode | Support HDD,CD-R,USB Flash Disk store & backup | |
| Video | Network Video Input | 4ch |
| Video output | 1ch CVBS(BNC), 1ch VGA and 1ch HDMI | |
| Audio | Audio Input | 4ch IPC Composite Audio |
| Audio Output | 1ch(support two-way audio) | |
| Alarm | Alarm Input | 4ch Alarm input |
| Alarm Output | 1ch Alarm Output | |
| Other | Network | 1x10/100Mbps,RJ45 port; |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |
| HDD | support 2pcs SATA HDD inside | |
| Power | DC +12V /5A | |
| power consumption | 20W(not include HDD and PoE) | |
| Operation temperature | 0C-+55C | |
| Operation humidity | 10%-90% | |
| Demension | 365mm * 426mm * 65 mm(1.5U height) | |
| Weight | 3.5---4.05KG(not include HDD) | |
Software Management
Why Choose ISEC ?
♦ Wide Products Range. CCD / CMOS camera, HD-SDI camera, IP camera, PTZ camera, DVR, NVR, Cable, BNC, other accessories, etc.
♦ Quick Reply. Your inquiry will be replied within 24 hours. (except the holidays in China)
♦ Quality Control. All cameras have been strictly checked and tested before packing.
♦ Warranty. 2 years warranty for all products. Provide replacement or repairment within 2 years.
♦ Service. Keep customers posted for every step of production, shipping, etc info, and do best to help save the purchase cost.
♦ Technical support. Provide all-around technical support and counselling all the time.
♦ ODM/OEM. Accept special design and customize specification; Free logo silk print service ( only need 30pcs for each model); Customize retail boxes.
♦ MOQ. 1 piece. Suggest our clients test sample first before bulk order.
Shenzhen Isec Tchnologies Co., Ltd is a leading manufacturer of nvr system for ip camera, analog cameras, IP cameras, HD-SDI cameras, DVR, NVR, and accessories in Shenzhen, China.
Delivery: 1-3 working days for sample order, 3-8 days for bulk production.
Payment: Accept T/T, Western Union, Paypal, Escrow, L/C, B/L. ect.
Shipping: UPS, DHL, TNT, FedEx, by air cargo, by sea or per as your instruction.
......
------------------------------------------------------------------More Products, please click below----------------------------------------------------------
nvr system for ip camera, warmly welcome your inquiry about our products!
