Specifications
Hd NvrSupport 2pcs*4T SATA HDD
P2P, 4ch alarm, 4ch audio
4ch 1080P Playback
2014 New 1080P HD 16CH NVR for IP Camera Recording, Video Recorder
Features
> Support ONVIF version2.0 and above version
> H.264 codec decoding
> P2P cloud service to access IPC and NVR at any time and any place
> Smart phone monitoring, such as iPhone, iPAD, android smart phone
> Via IE, Chrome, Firefox, Safari etc. remote visit and operate NVR

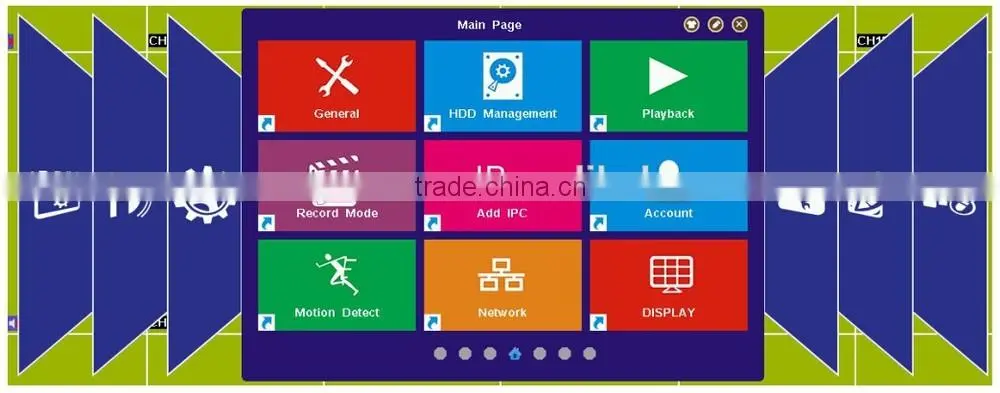

> Friendly and humanized menu interface, easy to operate
> Picture in picture, view other channels at the same time
> Auto sequence live view for all channels or part of channels
> Search, playback and backup by event
> Multi-points auto focus to view more details
> Slice playback intelligent position the lost items video
> WIFI and 3G wireless connection to internet
> Email alarm, snapshot and send picture to specific email while NVR alarm
> Close any channels while playback to save resource
> Automatically select the optimal streams for different bandwidth
> Video editor, accurate and efficient backup specific video to save USB disk capacity
> With power switch
> Free CMS to manage 255 channel IP camera
> QR code scan, easy to get cloud ID and download APP for smart phone
> Multi-Language menu interface, support English, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Poland, Portugal, Romanian, Russian, Spanish, Swedish, Thai, Turkey, Vietnamese, Korean, more language can be customized.
Pictures
Specifications about 2014 New 1080P HD 16CH NVR for IP Camera Recording, Video Recorder
Model |
IC-NVR1004 |
IC-NVR1009 |
IC-NVR1016 |
Main Processor |
Hisilicon Hi3515A |
Hisilicon Hi3520D |
Hisilicon Hi3520D |
Operating system |
Embedded LINUX OS |
||
Video compression format |
H.264 |
||
IP camera input |
4ch channel |
9ch channel |
16ch channel |
Operation Mode |
live view, record, playback, backup, network |
||
HDMI output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
||
VGA output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
||
Live view channel |
4ch 720P simultaneously |
9ch D1 simultaneously |
16ch CIF simultaneously |
Record channel |
4ch 1080P simultaneously |
9ch 1080P simultaneously |
16ch 1080P simultaneously |
Playback channel |
4ch 720P or 1ch 1080P simultaneously |
4ch 960P or 2ch 1080P simultaneously |
4ch 960P or 2ch 1080P simultaneously |
Record resolution |
3M/1080P/960P/720P/D1/HD1/CIF |
||
Recording model |
Manual/Schedule/Motion Detection/alarm |
||
Recording Search |
Time Point / Calendar / Event / Channel |
||
Audio Input |
4ch IPC Composite Audio Input |
9ch |
16ch |
Audio Output |
1CH, RCA (2.0Vp-p, 1KΩ) |
||
Two-way Talk |
1 channel Input( Linear electrical levell , impedance : 1kΩ), 1 channel Output, RCA |
||
Alarm Input |
4ch |
||
Alarm Output |
1ch |
||
Search method |
Time, Event, Channels and Calendar |
||
Display Split |
1/4 channel |
1/4/9 channel |
1/4/9/16 channel |
NETWORK protocol |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE, NTP, FTP, ARSP,WIFI, 3G |
||
Network |
RJ45 10M / 100M adaptive Ethernet port |
||
Backup |
HDD, USB Flash Disk |
||
USB |
2*USB2.0 port |
||
HDD |
2pcs SATA HDD, each port support max 4TB HDD |
||
eSATA port |
N/A |
||
Power supply |
4A Power supply, 50-60Hz |
||
power consumption(without HDD) |
≤50W |
||
Operation temperature |
0°C-+55°C |
||
Operation humidity |
10%-90% |
||
Demension(W*D*H) |
335*275*50mm (1U case) |
||
Weight(net/gross weight) |
1.4/1.9kg(without HDD) |
||
