rfid 13.56mhz hf card reader / writer for time and attendance management

    The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support not only Mifare and ISO 14443 Type A and B cards but also FeliCa and NFC tags.

   By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR122U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.

Features

    CCID-compliant

    PC/SC-compliant

    Read/write speed up to 424 kbps

    Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

    Supports new Mifare Ultralight C, Mifare Plus and DESFire EV1

    Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes

    Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)

    USB PnP

    User-controllable bi-color LED

    Compact size: 98 mm (L) x 65 mm (W) x 12.8 mm (H)

    Light Weight: 70 g

    User-controllable buzzer

 Typical Applications

      e-Government

      e-Banking and e-Payment

      e-Healthcare

     Transportation

     Network Security

     Access Control

     Loyalty Program

Universal Serial Bus Interface

Power sourceFrom USB

Speed12 Mbps (Full Speed)

Supply VoltageRegulated 5 V DC

Supply Current 200 mA (maximum); 50 mA (standby); 100 mA (normal)

Contactless Smart Card Interface

StandardISO/IEC 18092 NFC, ISO 14443 A and B, FeliCa, Mifare

ProtocolFeliCa protocol, T=CL protocol

Operating Frequency13.56 MHz

Smart card read / write speed106 kbps, 212 kbps, 424 kbps

Casing

Dimensions98 mm (L) x 65 mm (W) x 12.8 mm (H)

Weight70 grams

MaterialPolycarbonate (PC)

ColorPearl White

Antenna Size50 mm x 40 mm

Operating distanceUp to 50 mm (depending on tag type)

Built-In Peripherals

Bi-Color LEDBi-color LED, red and green

BuzzerMonotone

Operating Conditions

Temperature0 – 50 °C

Humidity10% - 80%

Cable Connector

Length1.0 M (USB)

Certifications/Compliance

PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed

Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7

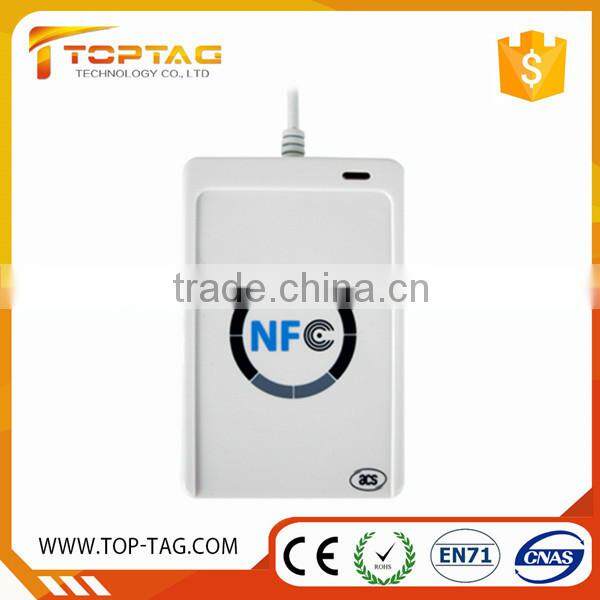

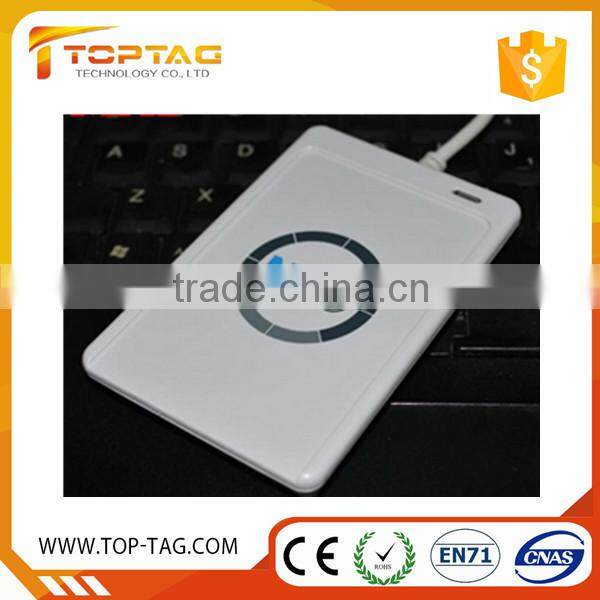

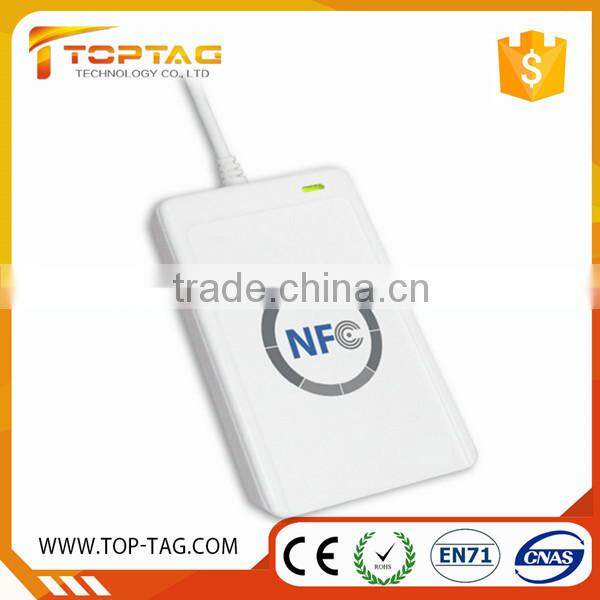

 2.Product images

     established in 2008 ,Our conpany has two main offices located in Hong Kong and Shenzhen, China. Our company is founded by a group of passionate and creative people with rich RFID trading and manufacture experience.

    Our company is specialized in various RFID tags and labels with different shapes and materials. Our tags range from low frequency to ultra-high frequency, which are widely used in NFC field, mobile payment, access control, supply chain management, inventory management, storage & logistics management, livestock management and so on.

    Our company not only involves the R&D of RFID tags, manufacturing, sales but also provides technical consulting service and support. Customized service is available for our customers to customize their tags and labels in terms of function, shape and material.

Choose Toptag, Choose Quality and Service

1. High Quality Control ----We have strict QC system, Twice QC lines arranged before delivery.
2. High Reputation ---- Our clients include many World Brand Companies.
3. Responsible Sales ----We concern what you concern.
4. All-around ON TIME service ---- We work late to meet your urgent needs.
5. Competitive Price----OEM supplier offering direct Factory price.
6. On Time Deliver ---- Powerful production capability ensure shortest deliver schedule.
We have been trying our best to prove ourselves to be your Best Reliable Professional supplier .

FAQ

Q1: I’m interested in your products, but now I’m out of China; could you offer you labels to my country?

A1: Sure! We’ve got full exportation experience, and no matter where you are, we may arrange the delivery.

Q2: Could I get the free samples for testing?

 A2: Yes, we could provide free samples for your testing.

Q3: Is it possible to custom the labels with my own design?

A3: Yes, and you just need send us your drawings or artworks, then you can get what you want.

Q4:Do you provide OEM service?

 A4: Yes. Actually, we’re already OEM for some brand, and also do the specific packing for them.

Q5: Can I get Sales support?

A5: Definitely. Our products have been strictly tested by QC before delivery.

Taking photos of products before delivery.

Q6: How many days can I get my products?

A6: Normally within one week. If you have urgent request, please just let us know. We will try our best to shorten the lead time to meet your requirements.

Following is the normal shipping time for your reference.

DHL: 3-5days

UPS: 4-5days

FedEx: 6-7days

TNT: 6-7days

By sea: 25-35days

Q7: How can I release the payment to you?

A7: We can receive your payment by L/C,T/TPaypal, Western union or Bank Account.
