ISO 14443 Mini USB RFID Reader / Wrtier ACR122 Smart Chip Card Reader
The ACR122S NFC Contactless Smart Card Reader is the serial interface reader in the ACR122 family developed based on the 13.56 MHz Contactless (RFID) Technology and compliant with the ISO/IEC 18092 Standard for Near Field Communication (NFC). It supports for Mifare, ISO 14443 Type A and B, FeliCa and NFC cards and devices, including all three NFC modes (reader, card emulation and peer-to-peer) and four types of NFC tags.
ACR122S is a plug and play device which does not require any driver installation. It comes with a built-in ISO 7816 SAM slot for enhanced security, plus a buzzer and two LEDs for rich user interaction. The reader can also read and write faster and more efficiently by making use of up to 424 Kbps for tag access. The proximity operating distance of ACR122S is up to 5cm, depending on the type of tag in use.
ACR122S is also available in module form for easy integration into bigger machines, like physical access devices and vending machines.
Features
Serial RS-232 Interface: Baud Rate = 115200 bps, 8-N-1.USB interface for power supply.
CCID-like frame format (Binary format).
Read/write speed up to 424 kbps.
Built-in antenna for contactless tag access, with reading distance of up to 50mm(depending on tag type).
Support for ISO 14443 Part 4 Type A and B cards, for Mifare, FeliCa, and all four types of NFC (ISO/IEC 18092 tags).
Built-in anti-collision feature.
ISO 7816-compliant SAM slot.
Two user-controllable LEDs.
User-controllable buzzer.
Applications
Public Transportation Terminals;
Customer Loyalty;
Time and Attendance;
Contactless Public Phones;
Network Security;
Access Control;
Physical Access Control, etc.
Specifications
Dimensions |
120.5 mm (L) x 72 mm (W) x 20.4 mm (H) |
Weight |
148 g |
Interface |
RS232 for data communication, USB for power transmission |
Operating Distance |
Up to 50 mm (depends on the tag type) |
Supply Voltage |
Regulated 5V DC |
Supply Current |
200 mA (operating); 50 mA (standby); 100 mA (normal) |
Operating Temperature |
0 - 50°C |
Operating Frequency |
13.56 MHz |
Smart Card Interface Support |
ISO14443 Type A & B MF FeliCa 4 types of NFC (ISO/IEC18092) tags |
Compliance / Certifications |
ISO 14443, CE, FCC, KC, VCCI, RoHS |
Operating System Support |
Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 Linux |

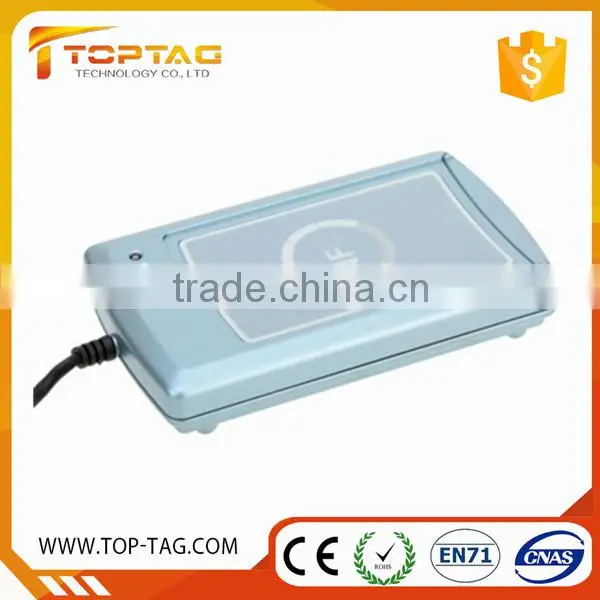

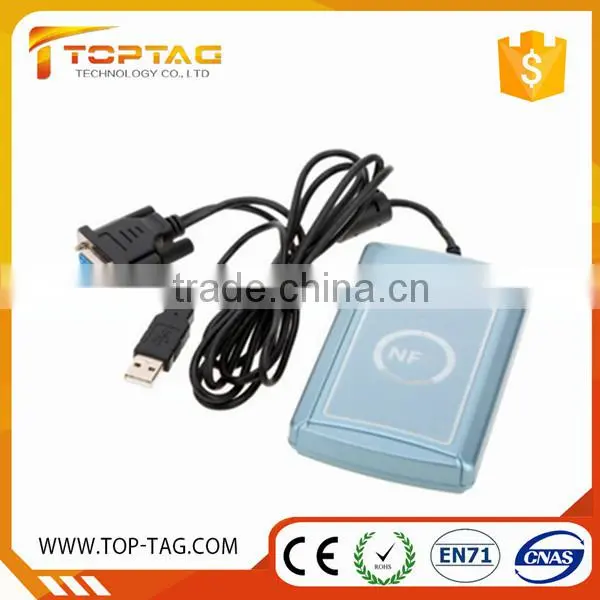

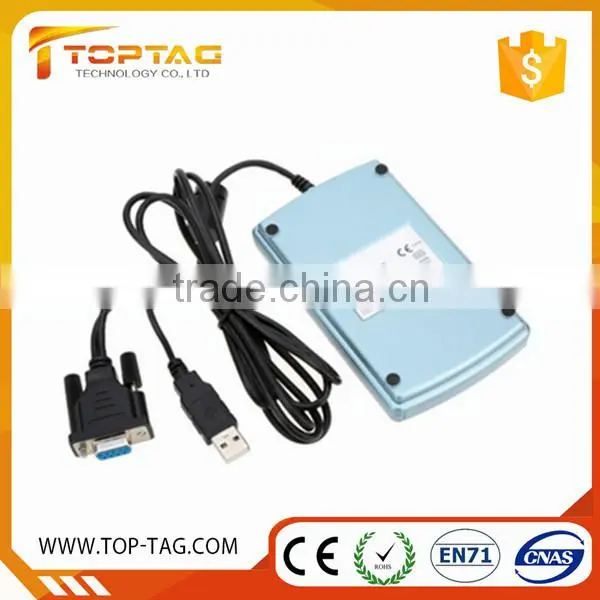

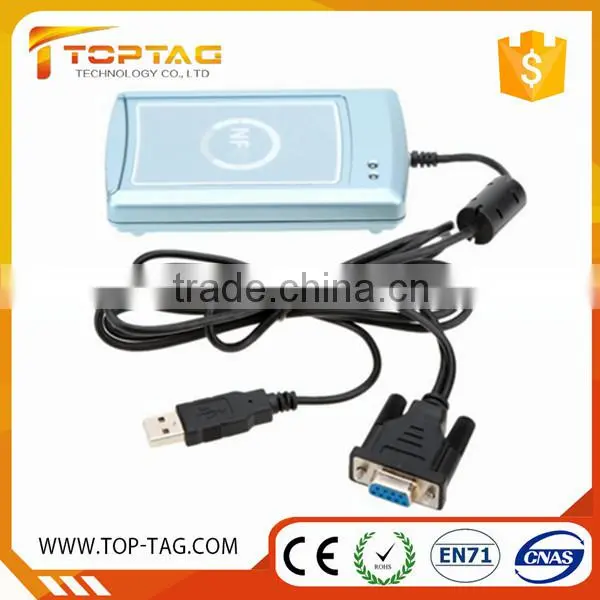

2.Product images
established in 2008 ,Our conpany has two main offices located in Hong Kong and Shenzhen, China. Our company is founded by a group of passionate and creative people with rich RFID trading and manufacture experience.
Our company is specialized in various RFID tags and labels with different shapes and materials. Our tags range from low frequency to ultra-high frequency, which are widely used in NFC field, mobile payment, access control, supply chain management, inventory management, storage & logistics management, livestock management and so on.
Our company not only involves the R&D of RFID tags, manufacturing, sales but also provides technical consulting service and support. Customized service is available for our customers to customize their tags and labels in terms of function, shape and material.
Choose Toptag, Choose Quality and Service
1. High Quality Control ----We have strict QC system, Twice QC lines arranged before delivery.
2. High Reputation ---- Our clients include many World Brand Companies.
3. Responsible Sales ----We concern what you concern.
4. All-around ON TIME service ---- We work late to meet your urgent needs.
5. Competitive Price----OEM supplier offering direct Factory price.
6. On Time Deliver ---- Powerful production capability ensure shortest deliver schedule.
We have been trying our best to prove ourselves to be your Best Reliable Professional supplier .
FAQ
Q1: I’m interested in your products, but now I’m out of China; could you offer you labels to my country?
A1: Sure! We’ve got full exportation experience, and no matter where you are, we may arrange the delivery.
Q2: Could I get the free samples for testing?
A2: Yes, we could provide free samples for your testing.
Q3: Is it possible to custom the labels with my own design?
A3: Yes, and you just need send us your drawings or artworks, then you can get what you want.
Q4:Do you provide OEM service?
A4: Yes. Actually, we’re already OEM for some brand, and also do the specific packing for them.
Q5: Can I get Sales support?
A5: Definitely. Our products have been strictly tested by QC before delivery.
Taking photos of products before delivery.
Q6: How many days can I get my products?
A6: Normally within one week. If you have urgent request, please just let us know. We will try our best to shorten the lead time to meet your requirements.
Following is the normal shipping time for your reference.
DHL: 3-5days
UPS: 4-5days
FedEx: 6-7days
TNT: 6-7days
By sea: 25-35days
Q7: How can I release the payment to you?
A7: We can receive your payment by L/C,T/TPaypal, Western union or Bank Account.
If you have any questions, please feel free to contact us
