Help Center12V AC Power Adapter for 3M MicroTouch LCD Monitor
Related Products
-
AC Power Adapter For3M Touchscreen 11-9552-78-00 LCD MonitorUS$ 0.1 - 10MOQ: 100 Units -
12V AC Power Adapter for 3M M150 MicroTouch LCD MonitorUS$ 0.1 - 10MOQ: 100 Units
-
12v Power Supply for Cctv Camera Lcd MonitorUS$ 0.1 - 10MOQ: 100 Units
-
Din 4 Pin 24v 5a ac dc Adapter for LCD TVUS$ 0.1 - 10MOQ: 200 Units
-
dc 25.5v 1.57a Power Supply for Verifone Omni 3000US$ 0.1 - 10MOQ: 100 Units
Specifications
12V AC power adapter for 3M microTouch LCD monitor1.input :AC 110V-AC 240V
2.output:12v2.5a
tection:OCP,SCP,OVP

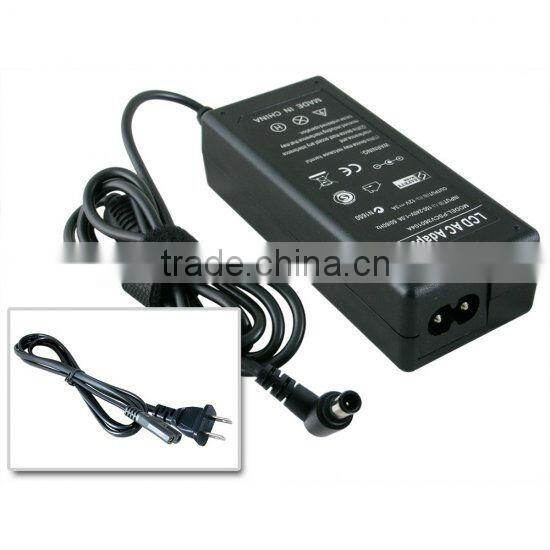

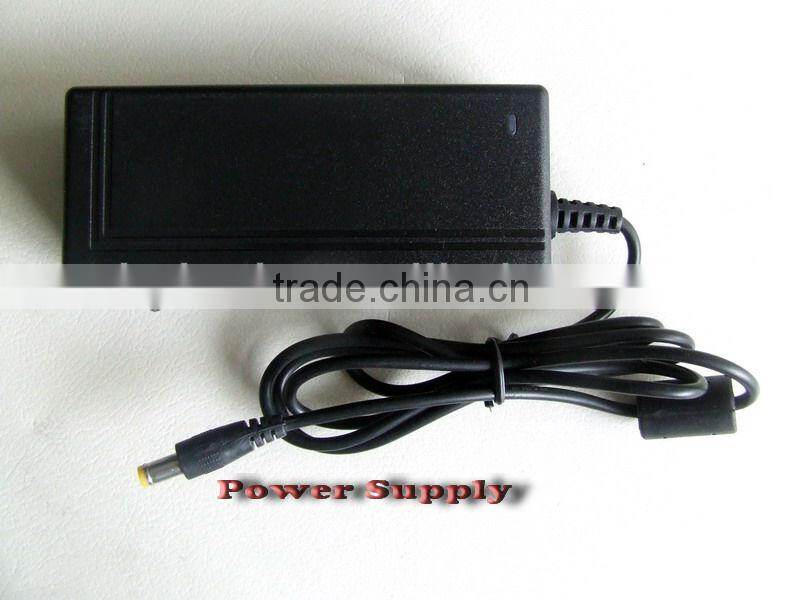

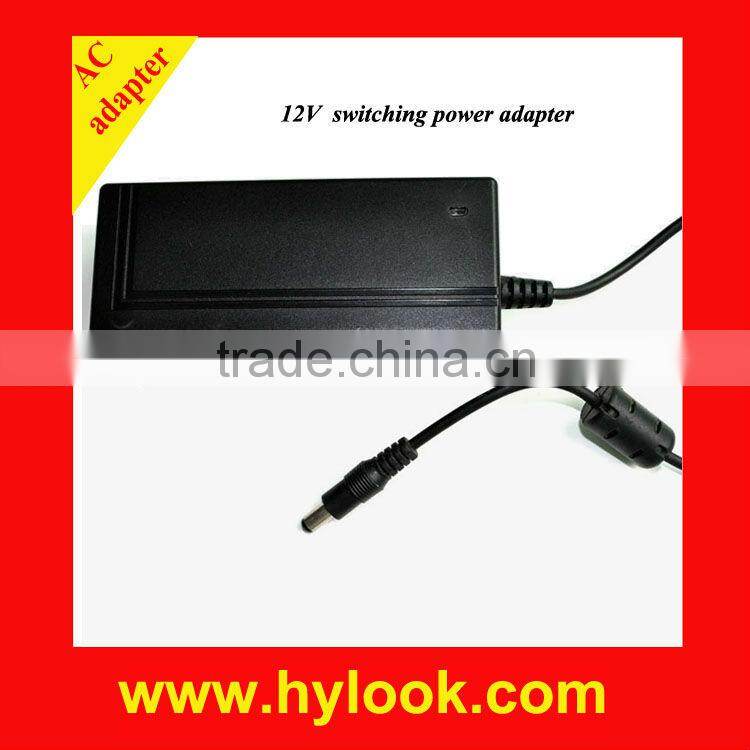

12V AC power adapter for 3M microTouch LCD monitor
1.Features:
Input voltage: |
110-240V(AC) |
Input power: |
100W |
Output voltage: |
12V(DC) |
Output voltage accuracy: |
±5%(no load) |
Dc connecter: |
customized |
Input Rated Current: |
1.0Amp |
Input Min. Current: |
0.1A |
Output DC wire: |
1.2m |
Ripple noise: |
100mv |
Protection: |
OCP,OSP,OVP |
2.Technical specification:
|
Input voltage Rated Voltage: 100~240Vac |
|
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
|
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection:The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us.You will receive a prompt reply from us
5.About us:
our company is the professional manufacturer and specialized in power adapter of laptop ,cctv camera,tablet,router ,pos printer etc.
6.Photos:
The other one of popular products:
24v 2a adapter for pos printer
