Specifications
Din 4 pin 24v 5a ac dc adapter for LCD TV1.Input:AC 110V-AC 240V
2.output:24v 5a
tection:OCP,OVP ,SCP
4.efficiency:80
Din 4 pin 24v 5a ac dc adapter for LCD TV
1.Features:
Input voltage: |
110-240V(AC) |
Input power: |
100W |
Output voltage: |
24V(DC) |
Output voltage accuracy: |
±5%(no load) |
Dc connecter: |
3 pin |
Input Rated Current: |
1.0Amp |
Input Min. Current: |
0.1A |
Output DC wire: |
1.2m |
Ripple noise: |
100mv |
Protection: |
OCP,OSP,OVP |
2.Technical specification:
|
Input voltage Rated Voltage: 100~240Vac |
|
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
|
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
|
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
3.Suitable for:

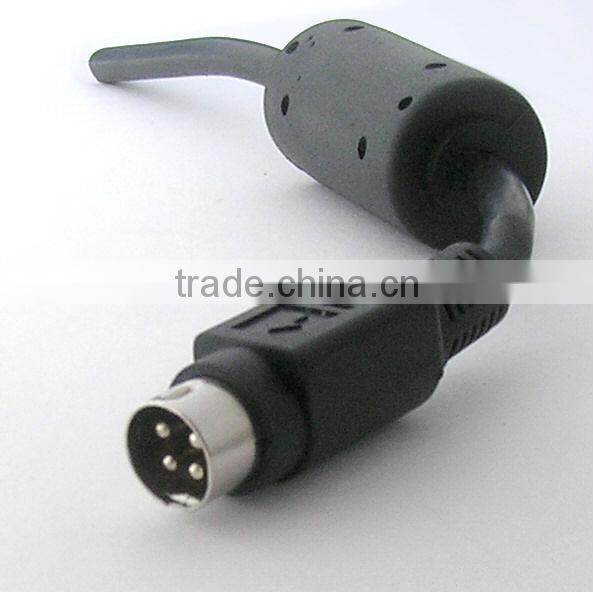

LCD Monitors, LCD TV, CCTV system, and other equipment requiring 24V 5A (or less current) with DIN 4-Pin type connector (Pin1,2 are positive poles, Pin3,4 are negative poles).
4.Compatibility:
This switching power adapter works for most LCD monitors that require 24V vlotage less than 5A current, including but not limited to:
Toshiba TVs with model number
- 20WL56B (24V version)
- 20WLT56B (12V version)
- 20WLT56B (24V version)
- 23WL46G (24V version)
- 23WLT46B (24V version)
- 23WLT56B (24V version).
Goodmans TVs with model number
- LD2050FVT (24V version)
Bush TVs with model numbers
- IDLCD23TV022
- LCD23TV022
- LCD23022X.
5.warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us.You will receive a prompt reply from us
6.Remarks:
1. delivery time:10 days (if quantity more than 4000Pcs,it will subject to our final
confirmation)
2. Payment: TT or western Union,30% TT before produce,70% balance payed before delivery
7.About us:
Our company is the professional manufacturer specialized in power adapter for laptop ,cctv ,lcd ,tablet pc ,router ,pos printer etc.

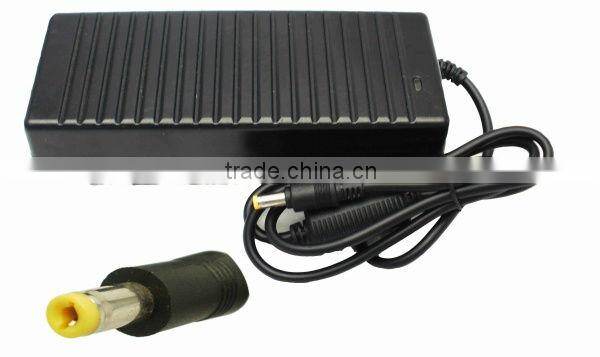

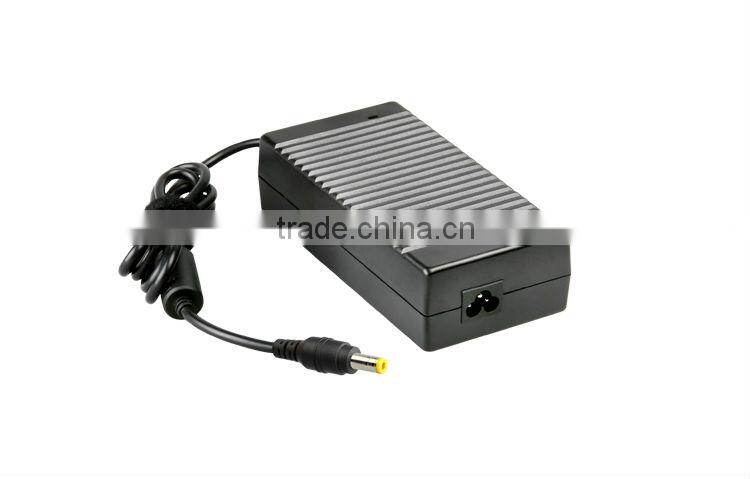

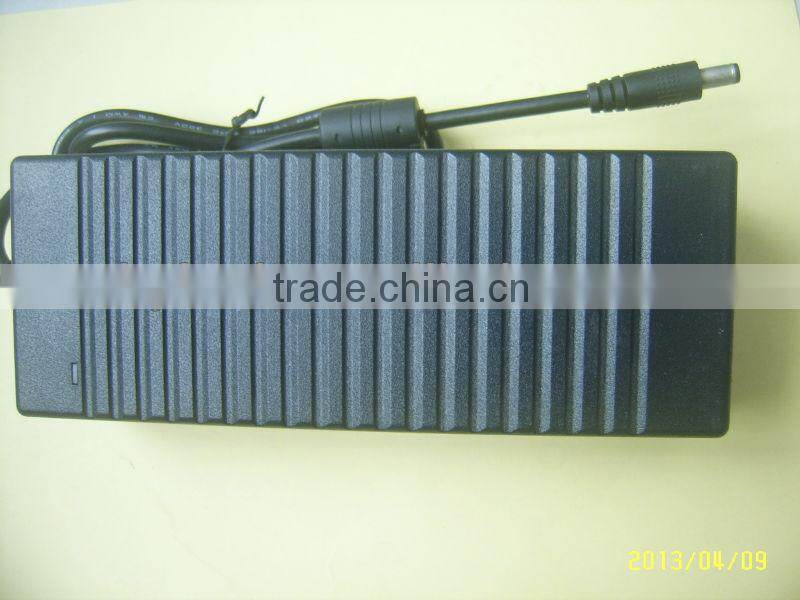

8.Photos:
