High quality low chrome g10 chrome steel ball
Product Show http://bjpascal.en.china.cn/

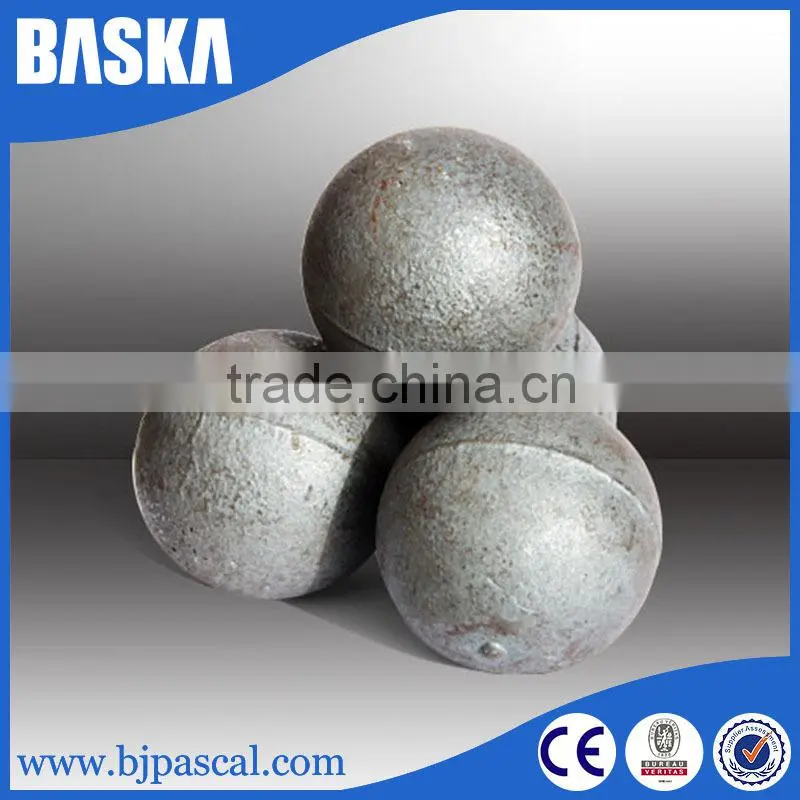

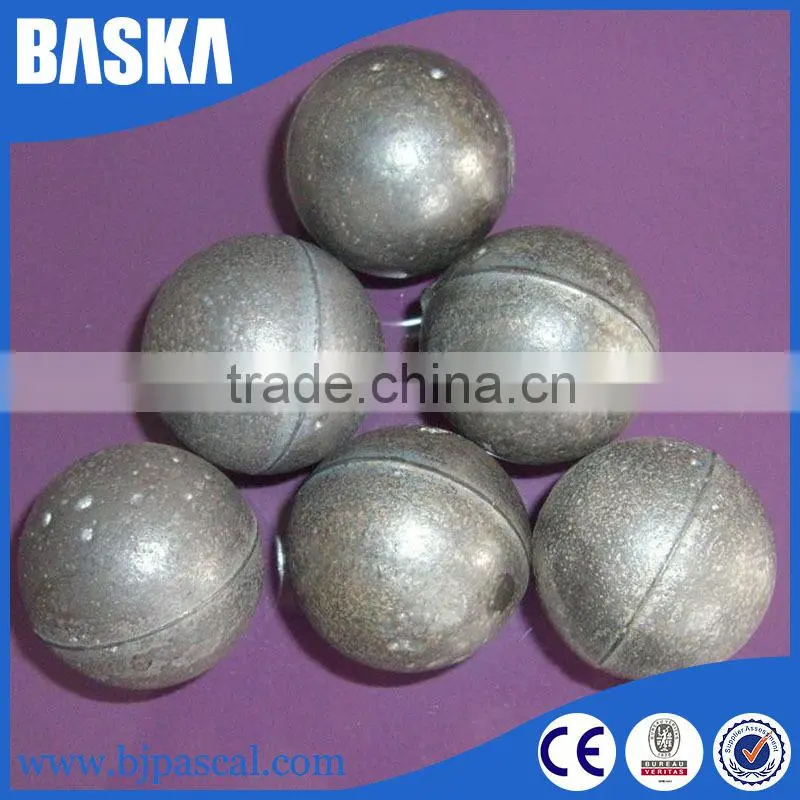

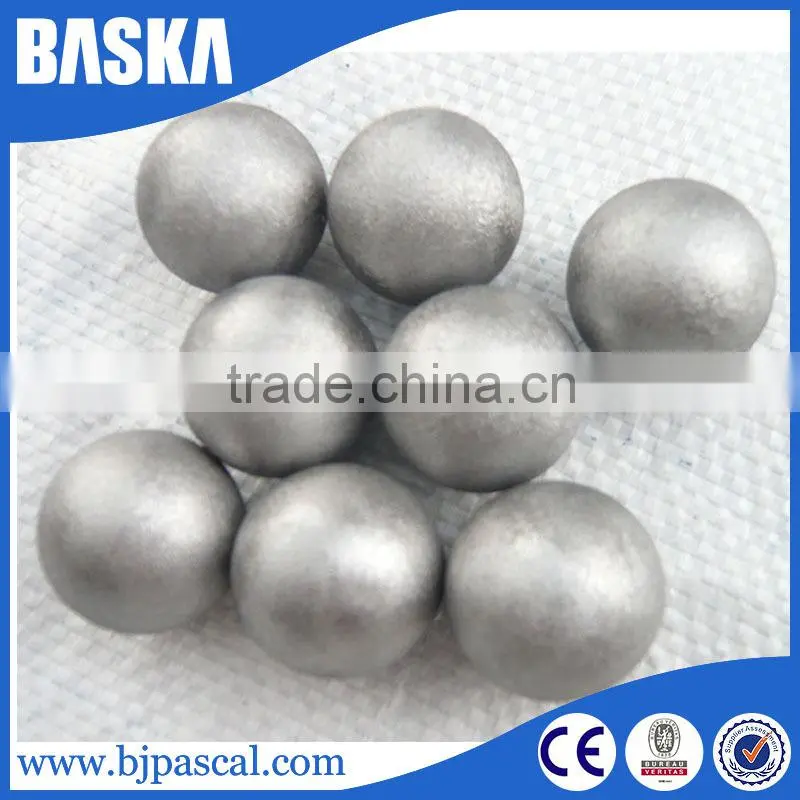

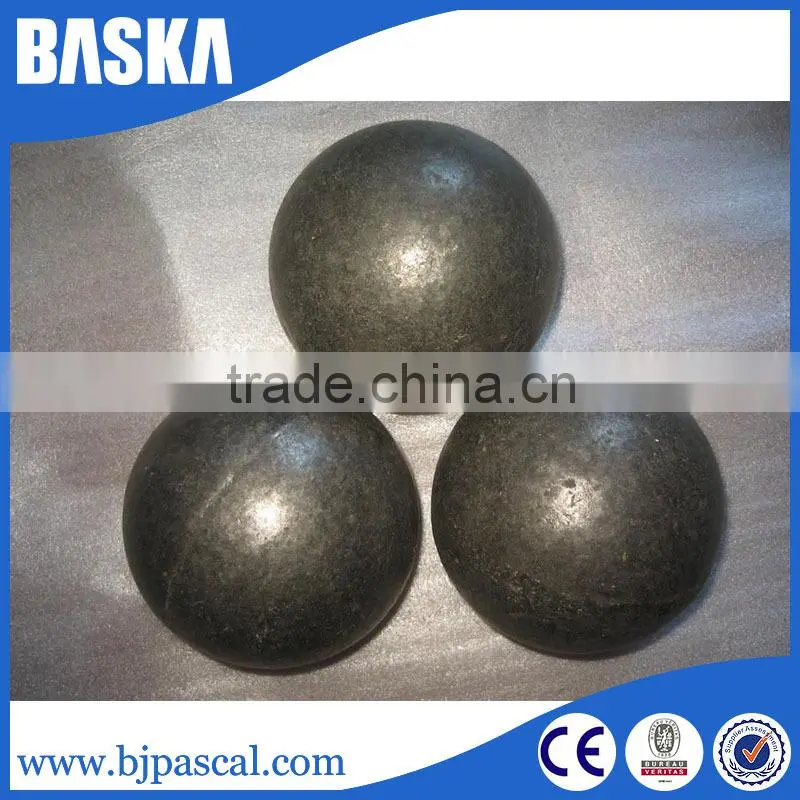

1. Product Pictures of g10 chrome steel ball
2. Product Description of g10 chrome steel ball
High Chrome Grinding Balls for Cement Industry
| Diameter | Cr % | Equipment | |||
| 13-60mm(1/2"-2 1/4'') | 10-13 | Ball mills-2nd compartment | |||
| 50-100mm(2''-4'') | 15-18 | Ball mills-1st compartment | |||
| 13-100mm(1/2"-4'') | 15-22 | Ball mills-1st and 2nd compartments | |||
High Chrome Grinding Balls for Mining Industry
| Diameter | Cr % | Equipment | |||
| 13-100mm(1/2"-4'') | 10-35 | Ball mills | |||
| 100-160mm(4''- 6 1/2'') | 10-35 | Ball mills and SAG mills | |||
Casting Grinding Balls for Caol Grinding, Limestone Grinding, and Other Applications
| Type | Cr % |
| Low-Cr | 1-3 |
| Medium-Cr | 4-9 |
| High-Cr | 10-18 |
| Superhigh-Cr | 19-35 |
Detailed Description
Chemical Components
| Type | Chemical components | |||||||
| C | Si | Mn | Cr | Mo | Cu | P | S | |
| Low-Cr | 1.8-3.2 | ≤1.2 | ≤1.5 | 1-4 | ≤1.0 | ≤0.5 | ≤0.15 | ≤0.15 |
| Medium-Cr | 1.8-3.2 | ≤1.2 | ≤1.5 | 4-9 | ≤1.5 | ≤1.0 | ≤0.15 | ≤0.15 |
| High-Cr | 1.8-3.2 | ≤1.2 | ≤1.5 | 10-18 | ≤1.0 | ≤1.5 | ≤0.10 | ≤0.10 |
| Superhigh-Cr | 1.8-3.2 | ≤1.2 | ≤1.5 | 22-25 | ≤2.0 | ≤1.5 | ≤0.10 | ≤0.10 |
Mechanical Properties and Microstructure
| Type | Mechanical properties | Microstructure | ||||||
| HRC | Falling ball times | |||||||
| Low-Cr | ≥45 | ≥8000 | P+C | |||||
| Medium-Cr | ≥50 | ≥12000 | M+C | |||||
| High-Cr | ≥58 | ≥15000 | M+C | |||||
| Superhigh-Cr | ≥60 | ≥22000 | M+C | |||||
P-Pearlite C-Carbide M-Martensite | ||||||||
3. More Products for You to Choose
4. Advantages
*16 years experience in mining machinery manufacturing
*Well equipped with complete facilities, more than 50 rich experienced engineers and
more than 2000 skilled employees
*Highly advanced digital processing equipment.
*All mining machinery we made are also performing in our self owned coal mine.
Company Show http://bjpascal.en.china.cn/
1. About us
BEIJING BASKA GUANHUA TECHNOLOGY CO., LTD was established in 2013 and is located in Beijing as an international trading company. Our factory - Tonghua Mining Machinery Co., Ltd was founded in 1998 and is located in Datong City, Shan Xi Province, which is a professional manufacturer engaged in the research, development, production, sale
and service of belt conveyor, scraper conveyor, couplings, backstop, shaft lock assembly and so on. It occupies an area of 120,723 square meters, which has more than 260 employees.As a professional mining machinery supplier, our factory has excellent teams who focus on product development & design, quality control & inspection and company running. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards. Besides, we are making great efforts to develop new products to meet different requirements. Our company has strict quality control system. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices.
2. Manufacturing Process
3. Certificate
4.Contact us
You could order this product according to the diameter and the properties of casting steel ball.
