Digital Video Recorder HD 1080P
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-SVR1008
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Compression H.264 Network 8ch Full d1 Dvr RohsUS$ 30 - 40MOQ: 1 Piece -
Economical 4CH H.264 D1 Recorable DvrNegotiableMOQ: 1 Piece
-
4 And 8Chanel Cctv DvrsNegotiableMOQ: 1 Piece
-
Cheap Cctv 4 Channel DvrNegotiableMOQ: 1 Piece
-
Real Time H 264 VGA / HDMI Output 8 Channel Surveillance DvrNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ISEC or OEM
Model Number
IC-SVR1008
Digital Video Recorder HD 1080P
Specifications:
| Hd Sdi Dvr | |||
| Model | IC-SVR1008 | ||
| System | User Interface | Graphic User Interface (OSD) | |
| OS | Embedded Linux | ||
| Operation Mode | preview, record, playback, backup, network | ||
| Password Security | Multi-level user management | ||
| A/V Input | Video input | 8 CH SDI Connector | |
| Audio input | 8 CH BNC Connector | ||
| A/V Output | HDMI output | Supports | 720P,1080P,1080I 1024X768,1280X1024, 1366X768,1440X900 |
| VGA output | Supports | ||
| Display | 1/4 /9 optional | ||
| Video standard | PAL/NTSC | ||
| Loop | NO | ||
| CVBS main output | 1CH, BNC connector | ||
| Spot output | 1CH,BNC connector | ||
| Audio output | 1CH,BNC connector | ||
| A/V encoding parameters | Video compression | H.264 | |
| Display frame rate | PAL:200 fps(8 x 25 fps).NTSC:240 fps(8 x 30 fps) | ||
| Recording frame rate | PAL:200 fps(8 x 25 fps) NTSC:240 fps(8 x 30fps) | ||
| Video encoding resolution | PAL:D1(704X576)/HD1(704X288)/CIF(352X288)/1080P(1920x1080)/720P(1280X720) NTSC:D1(704X480)/HD1(704X240)/CIF(352X240)/1080P(1920x1080)/720P(1280X720) |
||
| Video frame rate | PAL: 1-25FPS NTSC:1-30FPS | ||
| Video bit rate | 720P:1536kbps-3072kbps, 1080P:4608-6144kbps,D1:768-1536Kbps, HD1:512-1280kpbs,CIF384-768kbps,QCIF:192-384kbps |
||
| Stream Type | Video & Audio/Video | ||
| Audio compression | ADPCM | ||
| Recording mode | Always/Schedule/Alarm recording/Motion detection recording | ||
| Video search | Time/Channel/Event | ||
| Audio bit rate | 32kbps | ||
| Dual-stream | Supports | ||
| Mobile phone Monitor | Supports Android phone/iPhone/iPad | ||
| Recording resolution | 8 CH 1080P Recroding + 1 CH 1080P realtime Playback | ||
| HDD | Type | 8 pieces SATA | |
| Maximum capacity | 2TB for each Sata connector | ||
| External connectors | Voice talk | Support, 1CH BNC line in/1CH BNC line out. | |
| Record mode | Audio & Video recording simultaneously | ||
| Remote control | Supports | ||
| Mouse control | Supports | ||
| Network protocol | Supports IE/PPPoE/DDNS | ||
| Domain name server | Support 88110,3322, dyndns, no-ip, changeip, dnsexit domain name server as default value. | ||
| Network | 1 RJ45 10M/100M/1000M | ||
| Serial port | 2 RS-485 serial port | ||
| RS-232 serial port | |||
| E-SATA Connector | Supports | ||
| USB Connector | 2 USB | ||
| Firmware update | Support USB update/Network update | ||
| Alarm input | 16CH alarm input | ||
| Alarm output | 5CH alarm output | ||
| Others | Power supply | ATX | |
| Power (without HDD) | ≤70 W | ||
| Operation Temperature | -10°C--+55°C | ||
| Operation Humidity | 10%--90% | ||
| Chassis | Standard 2U | ||
| Dimension | 435mm(W)×440mm(D)×90mm(H) | ||
| Weight(without HDD) | ≤6Kg | ||

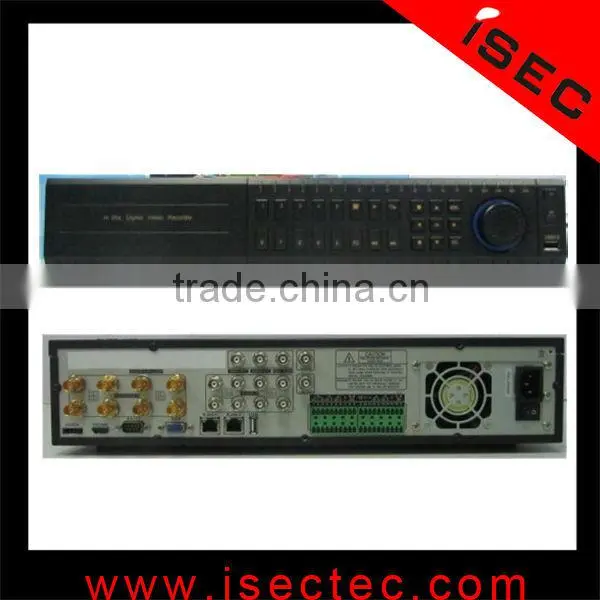

Picture:
Factory Package:
Certificates:
Welcome to Isec Factory !
After-Sale Services:
♦ We provide 1 years guarantee for all these dvrs on the basis of ship date.
♦ Logo Printing, OEM order welcome
Contact us now ! We are quiet ready for you !
