Specifications

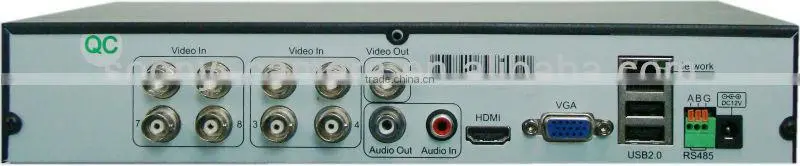

Real Time H 264 VGA / HDMI output 8 channel surveillance dvrSupport IE / phone
Support client software
VGA/HDMI output
Real Time H 264 VGA / HDMI output 8 channel surveillance dvr
Including
DVR:1 Manual:1 Certificate:1
Disk:1 Mouse:1 Screw:1
Power line:1 Power Adapter:1 SATA dataline:1
Main Fetures
♦ H.264 real-time high compression, support dual stream network transmission
♦ Video output:VGA and BNC can be independent local output.VGA display resolution max to 1280*1024
♦ Realtime display resolution: D1(4CIF) 704*576 (PAL),D1(4CIF) 704*480(NTSC)
♦ Backup: CD-RW (Option: DVD-RW), USB 2.0 and NET backup supported
♦ Search& playback Categories:channel, Date/Time, Event
♦ RJ-45 Ethernet connector,support Static, Dynamic IP and support TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP
♦ Support NAT: network adress transfer, no need router and port setting unless network connecting
♦ Support IE,Mobile phone and special client software
♦ Support the partial graphic of monitoring to be enlarged onmousedrag
♦ Support Pelco-P&Pelco-D PTZ control
♦ Multi-language OSD
Specification
H 264 8 Channel DVR Model IC-DVR1408
| Compression standard | H.264 |
| Video input | BNC(1.0V p-p/75Ω)×8-channel |
| Video output | BNC(1.0V p-p/75Ω)×1-channel |
| VGA×1,800×600,1024×768,1280×1024 | |
| HDMI×1,resolution max to 1920*1080p | |
| Audio input | RCA(2.0Vp-p/600Ω)×1 |
| Audio output | RCA(600Ω)×1 |
| Display resolution | D1 |
| Playback resolution | 8D1/1D1,3D1+5CIF/3D1+5CIF |
| Frame rate | 0.1F/S-25F/S(PAL) 0.1 F/S-30 F/S(NTSC) |
| Stream set | Adjustable five-speed stream |
| HDD | 1SATA |
| Network interface | 10/100M |
| USB interface | USB2.0*2 |
| RS485 interface | 1 |
| Power supply | DC12V/2A |
| Power(without HDD) | ≤15W |
| Work temperature | -10°C- +55°C |
| Humidity | 10%-90% |
Boxing
DVR size: 280*205*50mm
N.W.: 1.1kg
G.W.:1.6kg
Color box size: 355*275*100mm
5pic/ctn: 525*385*305mm
PKG G.W.: 8.8kg
