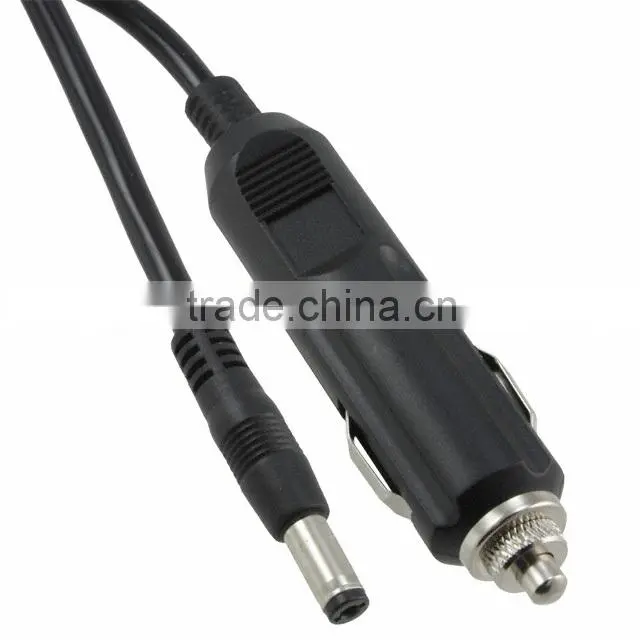

12V 2A Car Charger for Verifone Magic3 M- serial

Input characteristics

1. Input voltage

  Rated Voltage: 100~240Vac

  Variation Range: 80V~280Vac

2. Input Frequency

  Rated Frequency: 50/60HZ

  Variation Frequency: 47~63Hz

3. Input current

  0.5Amax. at any input voltage and rated, DC output rated load.

4. Inrush Current

  30Amax. @ 264Vac input

5. Efficiency:

  80% min at 100Vac input and output rated .Load.

  80% min at 240Vac input and output rated .Load

Output characteristics:

1. Turn on delay time:

  3S max. @ 100 Vac to 240 Vac input & Full load

2. Rise time

  20mS max. @ Rated load

3. Hold up time:

  5mS min. @ Full load &230Vac/50Hz input turn off at worst case

protection requirement:

1. Short circuit protection:

  The power supply will be auto recovered when short circuit faults remove.

2. Over current Protection:

  The power supply will be auto recovered when over current faults remove

3. Over Voltage Protection:

  The power supply will auto recovered when faults remove 120%~150%.

Environmental requirement:

  Operating Temperature: 0~40°C ,full load , normal operation.

  Storage Temperature: -20~80°C with package

  Relative Humidity: 10%(0°C) ~90%(40°C) RH

3.Application:

• For pos terminal machine ,credit card terminal verifone Magic 3-serial
• we also produce some other items for verifone  ,if there is some other verifone pos teminal accessories you need ,please feel free to conetact us

• For businesses that are always on the road, this handy car charger plugs into the front of the Magic 3 M-serial to keep the battery fully charged and allows you to run the device from the power in your car.

 5. photos:
