Specifications
All-in-one Standalone DVR4CH H.264 CIF real-time
Cable,power,mouse,manual,CD,Remote Controller
Support phone
Factory 100%

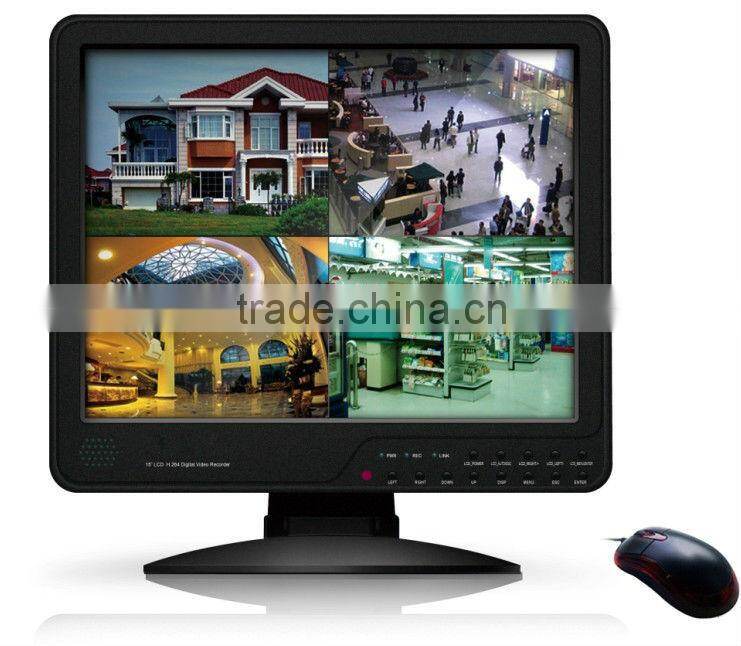

4CH H.264 CIF real-time all-in-one Standalone DVR
Main Fetures
1. Adopts the standard Main profile H.264 compression technology, D1/HD1/CIF can be adjusted, supports 4ch recording, Network transmission, and playback simultaneously
2. Support dual-stream transmission for all channels
3. Support Multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance
4. Support backup with USB Flash Disk, Movable hard, USB writer, Network
5. Support 1channel VGA output
6. Support video channel hidden and S.E.Q for single channel
7. Support Digital Zoom and PIP preview
8. Support password watermark function to avoid data modification
9. Support Action with Alarm and pre-alarm recording function
10. Support Email alarm
11. Mobile phone surveillance (Win CE/ Symbain/iPhone/Blackberry/Android)
12. Support PTZ(pan/tilt zoom) preset and Cruise Control
13. Support Multi-language OSD
14. Central management software and Networked system management
15. Support mouse, remoter controller, panel operating
Specification
Model no. |
IC-DVR0429L |
System |
Embedded Linux OS |
Video Compression Format |
Main Profile H.264 |
Video Input/Output |
4ch BNC input, 1CH BNC output |
VGA |
1 Channel VGA(1280*1024) |
Audio Input/Output |
4ch RCA input, 1CH RCA output |
Intercom |
1 Channel RCA Input,1 Channel RCA Output |
Display Picture |
1/4 |
Digital Zoom,PIP |
Supports |
Multiplex Operation |
Livedisplay PlaybackRecordingBackup |
Mobile phone Surveillance Network simultaneously | |
Display Resolution |
PAL:D1(704*576), NTSC:D(704*480) |
Recording Mode |
ManualTimerMotion DetectionAlarm |
Recording Frame Rate |
PAL:D1@50fps,HD1@80fps,CIF@100fps, |
NTSC:D1@60fps,HD1@96fps ,CIF@120fps | |
Recording Resolution |
PAL:D1(704*576),HD1(704*288), CIF(352*288), |
NTSC:D1(704*480),HD1(704*240),CIF(352*240) | |
Recording Playback |
4 channel playback simultaneously |
Recording Backup |
USB,Moved Hard Disk,USB Writer,Network |
Network transmission |
4 Channels real-time Network transmission with CIF resolution |
JPEG capture function |
Support,3M Pixels@10fps |
Alarm input/output |
4 channels input, 1 channel output |
Alarm |
Support Action with Alarm, |
Email Alarm |
Send pieces to the designated email |
PTZ |
Supports PTZ preset ,Cruise Control |
HDD |
Support 1x2TB SATA HDD, Support HDD Remain Time Hint |
Dual Stream |
Support(Main and secondary interchange) |
S.E.Q |
Support single channel and grouping S.E.Q |
Watermark |
Support |
Multi-language |
Support |
Mobile Phone Surveillance |
Support Windows Symbian iPhoneBlackberry Operation System |
SDK Package |
Available |
Interface |
Mouse interface:USB2.0, Backup interface: USB2.0 |
Remote Controller |
Support(Supports controller ID matching) |
User Authority |
Support Multi-level user authority distribution |
Date and time Format |
Adjustable |
Management |
Central management software and Network system management |
Working Condition |
Temperature: 0°C-50°C,Humidity: 10%-90% |
Accessories |
USB Mousex1, IR Remote Controllerx1, Powerx 1, Manualx1, CDx1 |
