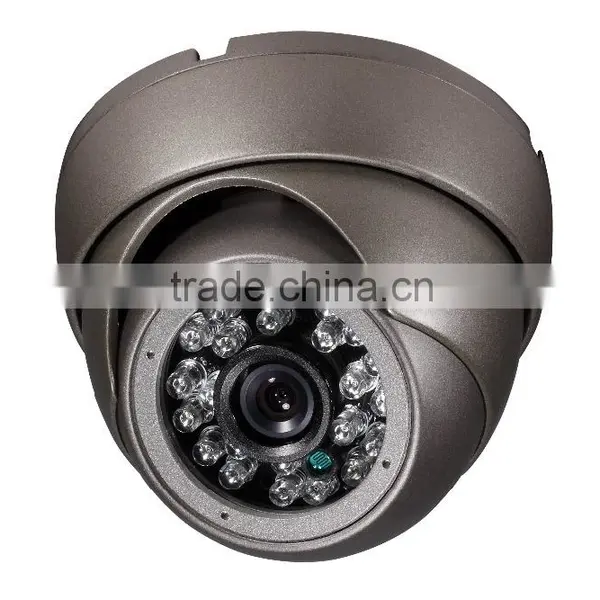

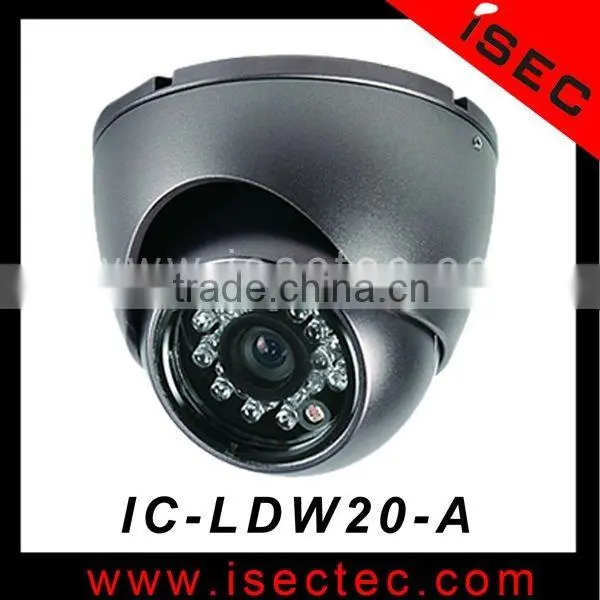

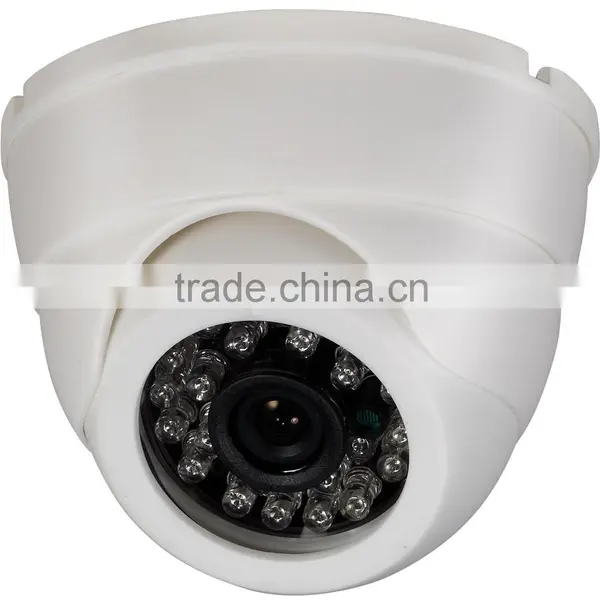

Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens

Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens thumbnail-1
Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens thumbnail-2
Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens thumbnail-3
Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens photo-1
Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens photo-2
Waterproof Dome Style 960P hd Cvi Cctv Camera With Varifocal Lens photo-3
US$ 12.9 - 23.4 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-LDW20-A Series
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC or OEM
Model Number IC-LDW20-A Series
Type Analog Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
Product Description



ISEC do your Security Backing, Taking Care Of your loved ones wherever you are...

Waterproof Dome style 960P hd cvi cctv camera with varifocal lens







960P IR Dome HD CVI Camera



Feature:

1, Alibaba Best Selling HD 720P 1080P CVI TVI AHD Cctv Camera
2, 720P/960P/1080P Optional, Built OSD Menu, Controlled By Cable
3, 24(f 0.5) LED IR Illuminators View Up To 20Meters Night Vision
4, 3.6mm fixed Lens,  2.8/6mm Lens Optional
5, DC12V Power Supply , Easy To Install
6, Cctv Camera Manufacturer China Factory, CE/FCC/RoHS



What is details of ISEC Cctv Camera?



What is Specification of ISEC Cctv Camera?

Model NO. IC-LDW20-AC7B IC-LDW20-AC9A IC-LDW20-AC2A IC-LDW20-AC2B
VIDEO
Image Device 1/4" 1MP AR0141 CMOS  1/3" 1.3MP  OV9750 CMOS 1/2.7" 2MP OV2710 CMOS  1/3" 2MP IMX322 CMOS
DSP FH8530 FH8530C FH8530
TV System PAL/NTSC
Effective Pixels 1280(H)×720(V)  1280(H)*960(V) 1920(H)×1080(V) 1920(H)×1080(V)
Resolution 720P 960P 1080P 1080P
Scanning System Progressive Scan
Synchronization Internal
Frame rate PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720)
Min. Illumination Color: 1.0lux F1.2; B/W: 0 Lux(IR ON)
S/N Ratio >50dB
Video Output AHD/CVBS (960H)
OSD no no available available
LENS
Focal Length 3.6mm lens
2.8/6mm lens option
IR-CUT 3MP IR filter cut
General
Infrared LED 24pcs Ø5mm IR LEDs
IR Distance about 20 Meters
Infrared Spectrum 850nm
Input Current 400mA
Adapter Requirement DC 12V, 1A
Water-proof  IP66
MECHANICAL
Color White/Black/Grey case
Bracket /
Dimensions Ø95.2X123mm
Net Weight 0.4kg/pcs
ENVIRONMENTAL
Operation Temperature -10℃~ +50℃
Storage Temperature -20℃~ +60℃



How to connect Cctv Camera Dvr?



 Waterproof Dome style 960P hd cvi cctv camera with varifocal lens

Where does ISEC Cctv Camera use?

Waterproof Dome style 960P hd cvi cctv camera with varifocal lens



Certification:
