Specifications
CVI camera kitsWaterproof IR dome camera
2Y warranty
Fast delivery & Payment by T/T
CE/FCC

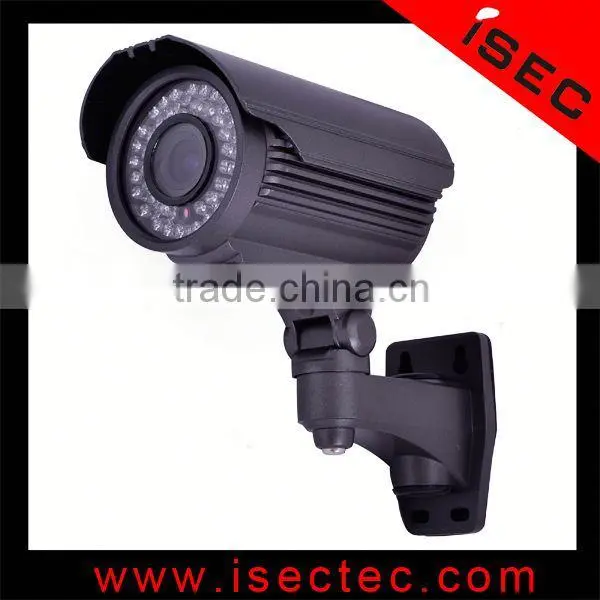

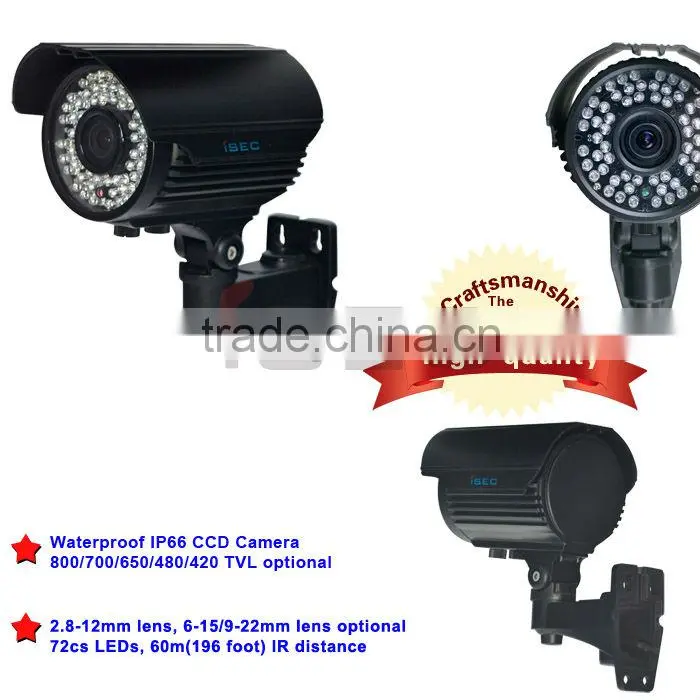

Bullet IP66 Waterproof Ir Cctv Security Camera CVI camera kits
| Model NO. | IC-LBMW60-CSR | IC-LBMW60-CHO | IC-LBMW60-CSO | IC-LBMW60-CSS | IC-LBMW60-CSA | IC-LBMW60-CSF |
| VIDEO | ||||||
| Image Device | 1/3" SONY 960H CCD | 1/3" SHARP 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY Super HAD II CCD |
| CCD model no. | ICX811AK(PAL) ICX810AK(NTSC) |
RJ2341(PAL) RJ2331(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
| DSP model no. | AVS03P | Nextchip 2090E | Nextchip 2090E | Effio-E CSD4140GG |
AVS03A-H | SONY CXD3142R |
| Horizontal Resolution | 800TVL | 700TVL | 420TVL | |||
| TV System | PAL/NTSC | |||||
| Total Pixels | PAL:1020(H)*596(V) , NTSC:1020H*508(V) | PAL:537(H)*597(V) NTSC:537(H)*505(V) | ||||
| Effective Pixels | PAL:960(H)*582(V) , NTSC:976H*494(V) | PAL:500(H)*582(V) NTSC:510(H)*492(V) | ||||
| Scanning System | 2:1 Interlace | |||||
| Synchronization | Internal | |||||
| Min. Illumination | 0 Lux (LED ON) | |||||
| S/N Ratio | More than 48dB(AGC OFF) | |||||
| Video Output | 1Vp-p,75ohm, BNC | |||||
| LENS | ||||||
| Standard Lens | 2.8-12mm manaul zoom lens | |||||
| Option | 6-15mm, 9-22mm manaul zoom lens | |||||
| Audio | optional | |||||
| IR distance | ||||||
| Infrared LED | 72pcs Ø5mm IR LEDs | |||||
| IR Distance | 60 Meters | |||||
| Infrared Spectrum | 850nm | |||||
| ENVIRONMENTAL | ||||||
| Operation Temperature | -10C ~ +50C RH95% MAX | |||||
| Storage Temperature | -20C ~ +60C RH95% MAX | |||||
| ELECTRICAL | ||||||
| Input Voltage/Current | DC12V,700mA | |||||
| Adapter Requirement | DC12V 2A | |||||
| MECHANICAL | ||||||
| Case Color | Standard color: Default | |||||
| Bracket | ceiling/wall/stand installation | |||||

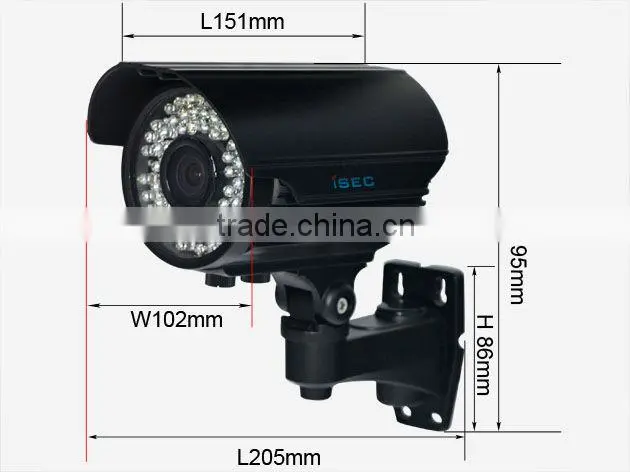

| Dimensions | 161(W) x94(H) x102(D)mm | |||||
| Gross Weight | 1.5kg | |||||
Features
1. New style design easy for installation
2. Bottom screws for zoom/focus adjustment
3. Cable is built in bracket
4. Metal waterproof IR camera IP66 waterproof standard
5. High definition up to 800TVL (700/600/540/480/ 420TVL option)
6. 800TVL to 600TVL camera with built-in OSD, controlled by cable
7. IR distance more than 60meters
8. Case color: black
9. OEM and ODM are welcome
Why choose us?
u Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.
u 9 years R&D and export experience and leading and professional manufacturer in CCTV industry.
u High quality (material) with competitive and reasonable price.
u 2 year warranty and lifetime maintenance.
u Fast delivery: usually within 3-10 work days since payment arrived.
u Professional technical support; Best pre-sale, sale and after-sale service.
u Welcome OEM & ODM, mixed order.
u CE, FCC, RoHS passed.
Quality Control:
u All raw materials are carefully selected and inspected.
u Advanced production equipment is used and routinely inspected and serviced.
u All operators and employees are thoroughly trained.
u All products have passed the European Union RoHS standard and are CE, FCC certified.
u Professional logistics personnel are employed to control the damage during the physical distribution of products
Questions about our Bullet IP66 Waterproof Ir Cctv Security Camera:
u Q: How long is the warranty?
u A: 2 -years-warranty since delivered out.
u Q: What's the MOQ?
u A: 1pc for sample, 20pcs for OEM order.
u Q: How long is the delivery time?
u A: Sample order 3-5 working days, bulk order 5-10 working days.
u Q: How do make payment?
