Specifications
150W Universal power adapter for home use1.input:110v -240v
2.Output voltage:15v-24v
3.use for LAPTOP and LCDWith USB port

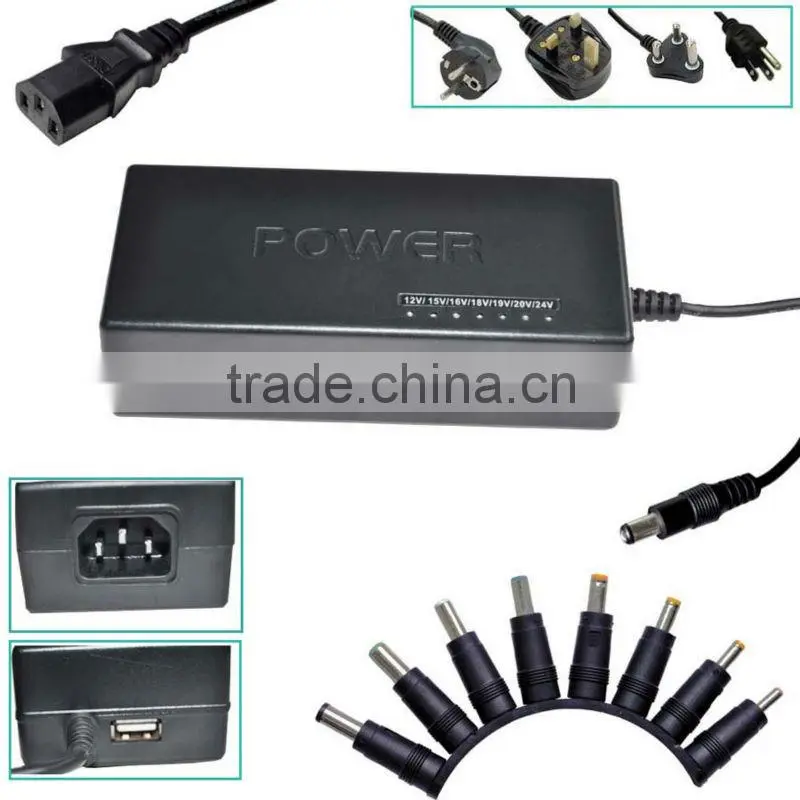

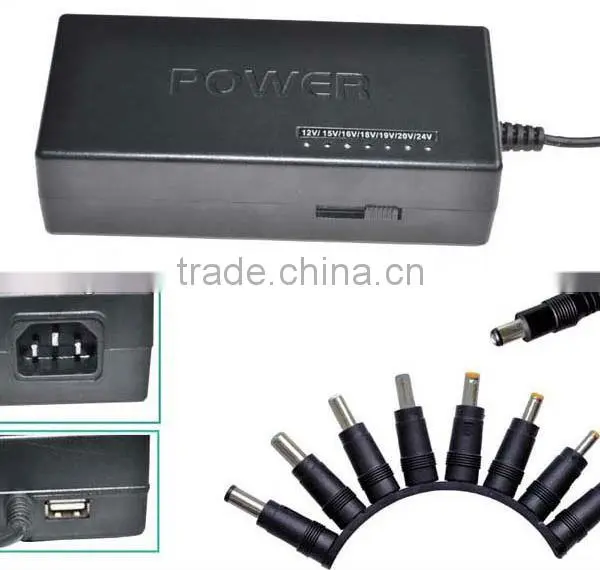

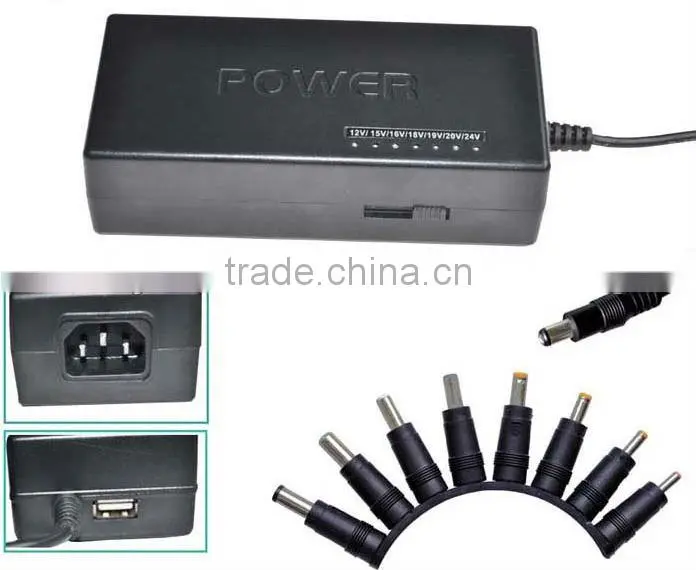

150W Universal power adapter for home use
1.features:
1.Input Voltage Range:AC110V-240V
2.Input Rated Current:1.5Amp
3.Input Power:150VA
4. Output voltage: DC 15V/16V/18V/19V/20V/22V/24V
5. Output current:15V-22V @6A 22/24V@5A
6. USB port voltage: 5.5-6.5V
7. USB limited current: 1.0Amp max
8.Suit for most brand laptops such as Dell, IBM and Toshiba,Acer,ASUS,COMPAQ
PDA, Cell Phones, MP3,Mp4,iPod
9.AC Cord: US/EUR/UK/AU Plug
2.Technical specification:
|
Input voltage Rated Voltage: 100~240Vac |
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
|
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
|
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
|
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
3.The dimension and usage of DC connectors:
6.3*3.0 Suitable for the notebook parameter:
TOSHIBA ,NEC
6.0*1.0 Suitable for the notebook parameter:
SONY ,FUJITSU ,SAMSUNG
5.5*2.5 Suitable for the notebook parameter:
FUJITSU,TOSHIBA,ACER,DELL,IBM,HP,DELTA
5.5*2.1 Suitable for the notebook parameter:
COMPAQ ,ACER,IBM,HP,NEC,TOSHIBA
5.5*1.7 Suitable for the notebook parameter:
ACER, HP
4.8*1.7 Suitable for the notebook parameter:
ASUS,HP,NEC,DELTA ,COMPAQ
4.0*1.7 Suitable for the notebook parameter:
ASUS,BENQ,ACER,SONY
3.5*1.35 Suitable for the notebook parameter:
SHARP,DELL
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us. You will receive a prompt reply from us
A. Different ac power cord for US,UK, AU, EU to meet local market
B. You are buying a 100% Brand New Product, Guaranteed to be a Compatible !
C. We save your money and offer you quality product that meets safety & environmental standards !
D. our mission is to provide people with the electronics and computer parts to create and design their own figures .
E. We are growing and changing all the time. But our goal remains the same to keep providing "Customer Satisfaction" for our customers!
F. We are committed to offering high-quality and low-cost electronics, computer equipment and parts.
G. Our primary mission is your satisfaction with our products. We try our best to ensure at most customer satisfaction.
s:
6.Reliability:
- 1)Heat-resistance: The universal power adapter shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and (Storage) it shall be subjected to standard astrospheres conditions for 2 hours,
- 2)Heat resistance: The universal power adapter shall be placed at a temperature of 25+/-2 °C and operating at No abnormity (Operation) full load for 4 hours. Measurement shall be made.
- (3)Cold-resistance: The universal power adapter shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function error after which measurement shall be made.
- 4)Cold-resistance: The universal power adapter shall be placed at temperature of 0+/-2 °C and operating at No abnormity (Operation) rate75% full load for 4 hours. Measurement shall be made.
- 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°CFor 2 hours, measure central section of sueface (thermoelectric couple method)
- 6) M.T.B.F: 50K Hours At 25°C With 80%Loading No abnormity
- 7) Life : Average Life Expectancy Or 3 Years
