Specifications
Cctv Hidden Camera2Y warranty
Fast delivery & T/T for payment
8Y factory experience
CE/FCC/ROHS
Top 10 sale Sony Ccd Sensor 420tvl-800tvl High quality Cctv Hidden Camera from China factory
Features
1. PIR Hidden Camera
2. Sony Color CCD or Sharp Color CCD option
3. Sony Low Illumination CCD 0.1lux
4. Sharp ccd 0.5lux
5. High definition up to 700TVL(650/540/480/ 420TVL option)
6. 700TVL and 650TVL camera with built-in OSD, controlled by OSD cable
7. Standard lens: 3.7mm pinhole lens 2.5/2.8mm pinhole lens is optional
8. Without IR LED

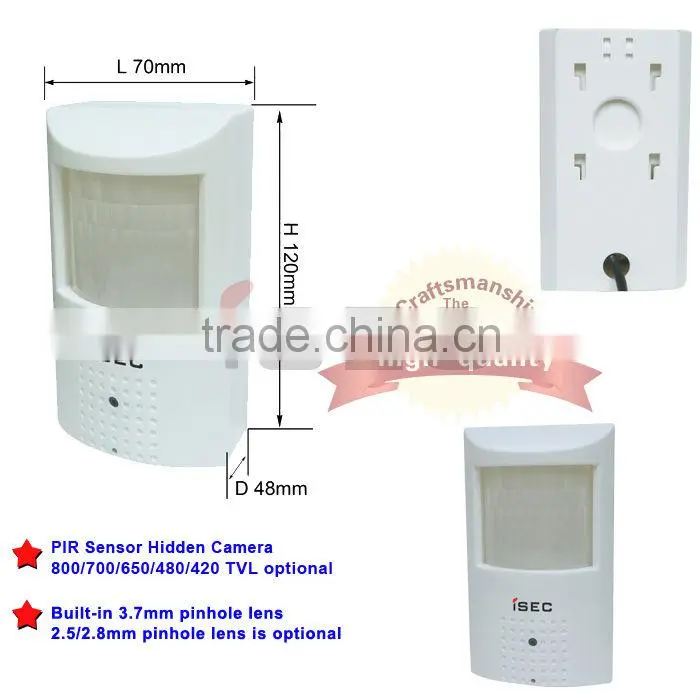

9. 70(W)x120(H)x48(D)mm
10. 0.25kg
| Model | IC-H-ESR | IC-H-ESS | IC-H-ESQ | IC-H-EHM | IC-H-ESK | IC-H-ESF |
| Image Sensor | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 760H CCD | 1/3" SHARP 760H CCD | 1/3" SONY Super HAD II CCD | 1/3" SONY Super HAD II CCD |
| CCD model no. | ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX639BK(PAL) ICX638BK(NTSC) |
RJ2365DB(PAL) RJ2355DB(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
| DSP model no. | AVS03P | Effio-E CSD4140GG |
Nextchip 2040E | Nextchip 2040E | Nextchip 2030E | SONY CXD3142R |
| Horizontal Resolution | 800TVL OSD |
700TV Lines OSD |
650TV Lines OSD |
650TV Lines OSD |
480TV Lines Hi-sensitivity |
420TV Lines Hi-sensitivity |
| TV System | PAL / NTSC | |||||
| Effective Pixels | PAL:1020(H)*596(V) NTSC:1020H*508(V) |
PAL:752(H)*582(V) NTSC:768(H)*494(V) |
PAL:500(H)*582(V) N:510(H)*492(V) |
|||
| Lens | built-in 3.7mm pinhole lens; 2.5mm pinhole lens is optional | |||||
| Scanning System | 2:1 Interlace | |||||
| Sync System | Internal Synchronization | |||||
| S/N Ratio | More than 48dB(AGC OFF) | |||||
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec; PAL 1/50~1/100,000Sec | |||||
| Video Output | 1Vp-p,75ohm, BNC | |||||
| Gain Control(AGC) | adjustable | Auto | ||||
| White Balance | adjustable | Auto | ||||
| Backlight Compensation | adjustable | Auto | ||||
| Mirror | ON/OFF | |||||
| Privacy Masking | ON/OFF (8 areas) | |||||
| Operation Temperature | -10C~ +50C RH95% MAX | |||||
| Storage Temperature | -20C~ +60C RH95% MAX | |||||
| Power Supply | DC12V, 300mA | |||||
| Dimension | 70(W)x120(H)x48(D)mm | |||||
| Case Color | white | |||||
| Weigt | 0.25kg | |||||
Deatails
Why choose us?
u Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.
u 9 years R&D and export experience and leading and professional manufacturer in CCTV industry.
u High quality (material) with competitive and reasonable price.
u 2 year warranty and lifetime maintenance.
u Fast delivery: usually within 3-10 work days since payment arrived.
u Professional technical support; Best pre-sale, sale and after-sale service.
u Welcome OEM & ODM, mixed order.
u CE, FCC, RoHS passed.
Quality Control:
u All raw materials are carefully selected and inspected.
u Advanced production equipment is used and routinely inspected and serviced.
u All operators and employees are thoroughly trained.
u All products have passed the European Union RoHS standard and are CE, FCC certified.
u Professional logistics personnel are employed to control the damage during the physical distribution of products.
Questions about our Cctv Hidden Camera:
u Q: How long is the warranty?
u A: 2 -years-warranty since delivered out.
u Q: What's the MOQ?
u A: 1pc for sample, 20pcs for OEM order.
u Q: How long is the delivery time?
u A: Sample order 3-5 working days, bulk order 5-10 working days.
u Q: How do make payment?
More products for you option:

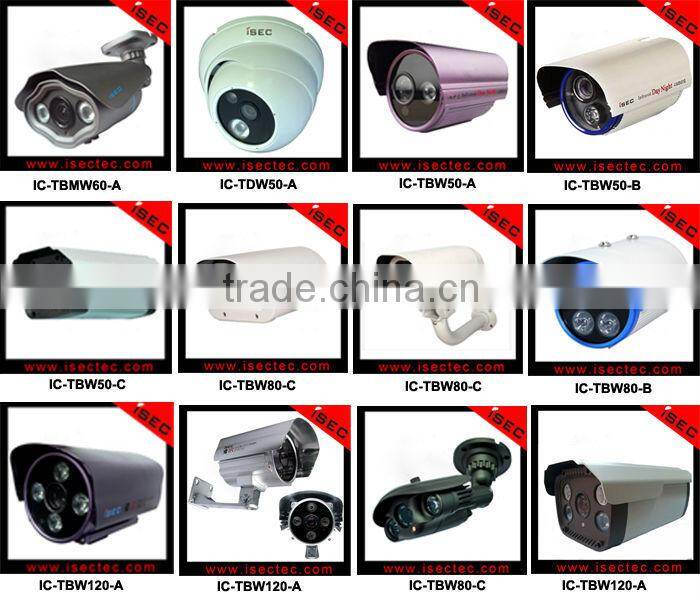

Third Generation array led ir camera:
