Specifications
90W universal adapter for home and car use1.input:100W
2.Output :15V-24V
tection: OCP,OVP ,SCP
4.efficiency:80%
90W universal adapter for home and car use
1.General description :
- 90W universal adapter for all kinds of laptop
- Good quality and competitive price.
- All kinds of DC connectors and AC plug.
- Both home and car use
- The length of ac cable is customized.
2.Features:
Rated Input Voltage: |
AC 110V or AC240V |
Vibration Input Voltage Range: |
AC80V-280V |
Input Rated Current: |
0.4-0.6AMP |
Input Power: |
100w |
Efficiency: |
>88%(TYP) |
Out Power: |
90W |
Output voltage: |
15V/16V/18V/19V/20V/22V/24V(0/+0.5V NOLOAD): DC15V-24V |
Output current: |
15-20V/4.5A@22V-24V/4.0A: 4.5AMP(max) |
Overload protection: |
YES |
Short Circuit Protection: |
YES |
Ripple Noise: |
200mv |
3.The dimension and usage of DC connectors:
6.3*3.0 Suitable for the notebook parameter: TOSHIBA ,NEC
6.0*1.0 Suitable for the notebook parameter: SONY ,FUJITSU ,SAMSUNG
5.5*2.5 Suitable for the notebook parameter: FUJITSU,TOSHIBA,ACER,DELL,IBM,HP,DELTA
5.5*2.1 Suitable for the notebook parameter: COMPAQ ,ACER,IBM,HP,NEC,TOSHIBA
5.5*1.7 Suitable for the notebook parameter: ACER, HP
4.8*1.7 Suitable for the notebook parameter: ASUS,HP,NEC,DELTA ,COMPAQ
4.0*1.7 Suitable for the notebook parameter: ASUS,BENQ,ACER,SONY
3.5*1.35 Suitable for the notebook parameter: SHARP,DELL
4.Technical specification:
|
Input voltage: Rated Voltage: 100~240Vac |
Variation Range: 80V~280Vac Input Frequency: Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
|
Input current: 0.5Amax. at any input voltage and rated, DC output rated load. |
|
Inrush Current: 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
|
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |

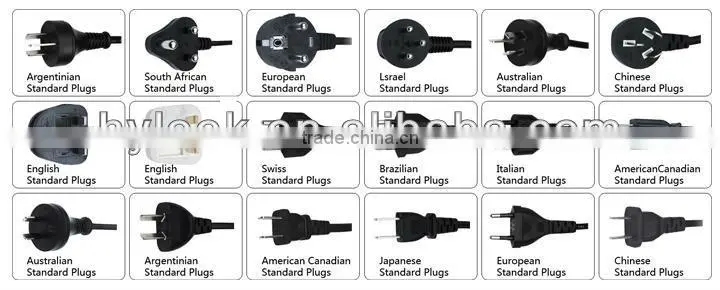

5.All kinds of AC plug :
6.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us. You will receive a prompt reply from us
7.Package include:
1x 90W universal adapter with dc 8pins
8.Remarks:
1. delivery time:10 days (if quantity more than 4000Pcs,it will subject to our final
confirmation)
2. Payment: TT or western Union,30% TT before produce,70% balance payed before delivery
3. MOQ:100pcs
4. Price term: EXW ,currency:USD . All of above price do not including AC power cord
5. OEM available.

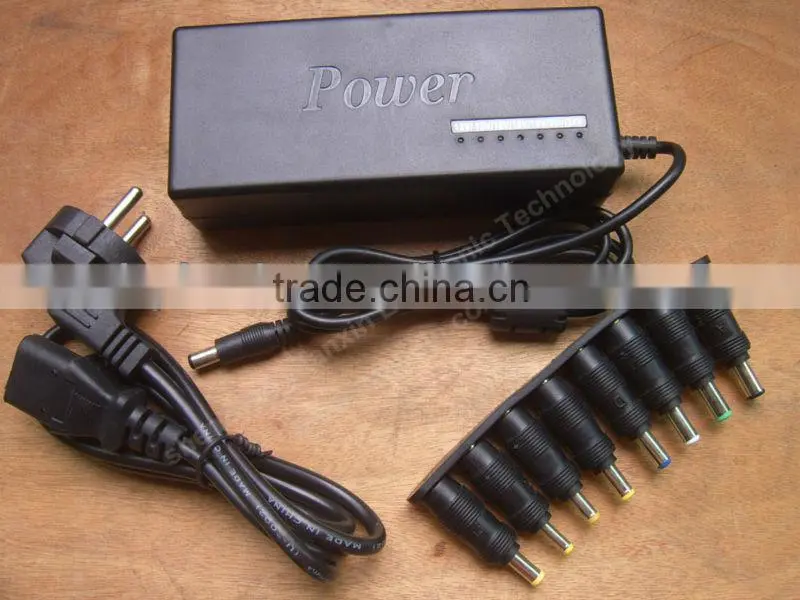

9.The photos:
10.Reliability:
- 1)Heat-resistance: The 90W universal adapter shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and (Storage) it shall be subjected to standard astrospheres conditions for 2 hours,
- 2)Heat resistance: The 90W universal adapter shall be placed at a temperature of 25+/-2 °C and operating at No abnormity (Operation) full load for 4 hours. Measurement shall be made.
- (3)Cold-resistance: The 90W universal adapter shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function errorafter which measurement shall be made.
- 4)Cold-resistance: The 90W universal adapter shall be placed at a temperature of 0+/-2 °C and operating at No abnormity (Operation) rate75% full load for 4 hours. Measurement shall be made.
- 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°CFor 2 hours, measure central section of sueface (thermoelectric couple method)
- 6) M.T.B.F: 50K Hours At 25°C With 80%Loading No abnormity
- 7) Life : Average Life Expectancy Or 3 Years

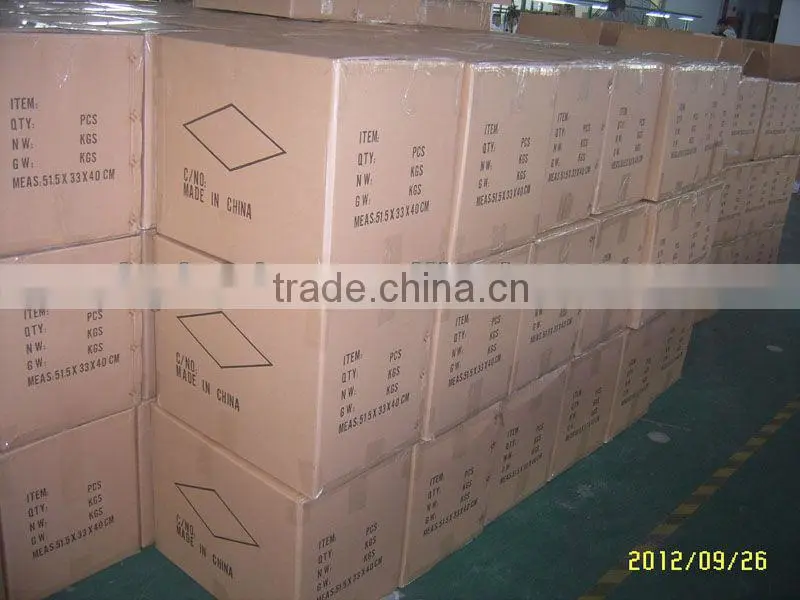

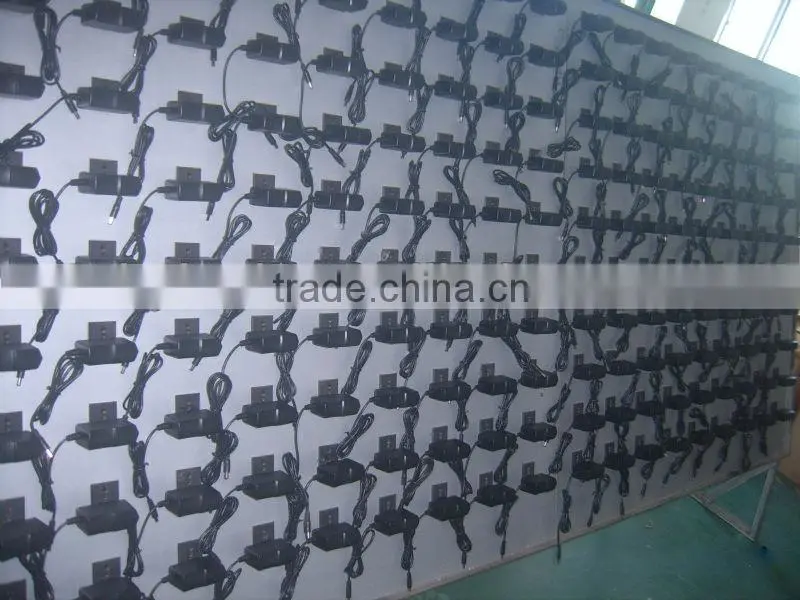

12.Our factory:
