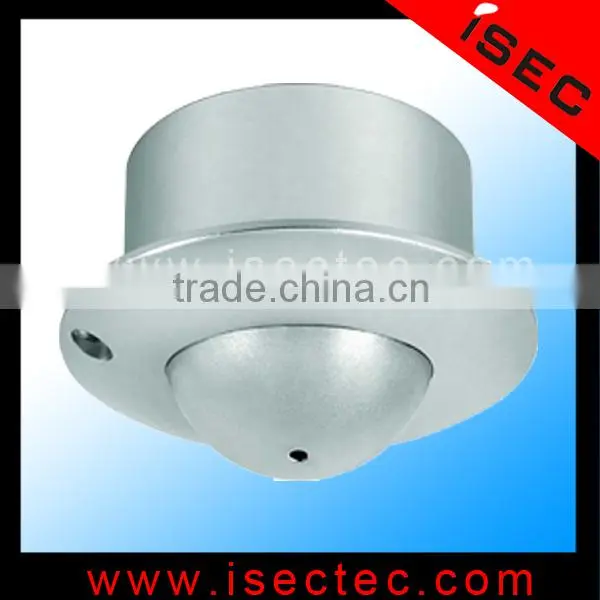

metal UFO Hidden camera IC-H-A series

Specifications

1/3" sony Ccd hidden camera video
-Hidden Secret Camera
-2Y Warranty fcc/ce/rohs
-100% manufacturer
-OEM/ODM

1/3" sony Ccd hidden camera video





Features





1. Metal UFO Hidden camera

2. Sony Color CCD or Sharp Color CCD option

3. Sony Low Illumination CCD 0.1lux

4. Sharp ccd 0.5lux

5. High definition up to 700TVL(650/540/480/ 420TVL option)

6. 700TVL and 650TVL camera with built-in OSD, controlled by OSD cable

7. Standard lens: built-in 3.7mm pinhole lens 2.8mm pinhole lens is optional

8. Without IR LED

9. Ø86x60mm

10. 0.35kg



Deatails



Name of products

1/3" sony Ccd hidden camera video



Model number

IC-H-A series







Model	IC-H-ASS	IC-H-ASQ	IC-H-ASM	IC-H-ASK	IC-H-ASF
Image Sensor	1/3" SONY ICX673AK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX633BK CCD	1/3" SONY ICX633BK CCD
Horizontal Resolution	700TV Lines               Hi-sensitivity           Effio, ATR, OSD, NR	600TV Lines Hi-sensitivity, OSD	540TV Lines             Hi-sensitivity	480TV Lines           Hi-sensitivity	420TV Lines         Hi-sensitivity
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)	PAL:795 (H)× 596(V),                                     NTSC:811 (H) ×508 (V)		PAL:752(H)x582(V) NTSC:768(H)x494(V)	PAL:500(H)x582(v) NTSC:510(H)x492(v)
IR LED	without IR LED
Lens	built-in 3.7mm pinhole lens
	2.8mm pinhole lens is optional
Minimum Illumination	0.1(day)/0.01(night)Lux		0.1Lux
Scanning System	NTSC:525 Lines,60 Field/sec,
	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGC)	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	Ø86x60mm
Camera Case Color	Grey
weigt	0.35kg
