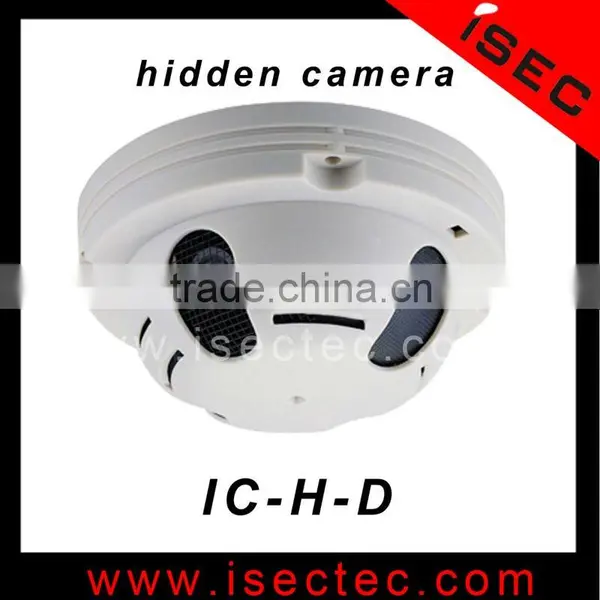

1/3" Sony Color Ccd Hidden Camera

Name: 1/3" Sony Color Ccd Hidden Camera
Brand: ISEC or OEM
SKU: 100464799
Availability: InStock

US$ 13.7 - 30.3 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ISEC or OEM

Model Number:

IC-H-D series

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ISEC or OEM

Model Number IC-H-D series

Type Other, Analog Camera, Cctv Detector

Style Hidden Camera

Sensor CCD

Technology Other, Smoke Detector

Special Features Other, Invisible Camera

Specifications

1/3" Sony Color Ccd Hidden Camera
-Hidden camera
-2Y Warranty,fcc/ce/rohs
-100% manufacturer
-Smoke Detectoer

1/3" Sony Color Ccd Hidden Camera

Features

1. Smoke Detector Hidden Camera
2. Sony Color CCD or Sharp Color CCD option

3. Sony Low Illumination CCD 0.1lux

4. Sharp ccd 0.5lux

5. High definition up to 700TVL(650/540/480/ 420TVL option)

6. 700TVL and 650TVL camera with built-in OSD, controlled by OSD cable

7. Standard lens: 3.6mm board lens 2.1/2.8/6 mm pinhole lens are optional
8. Without IR LED

9. Ø120x56mm
10. 0.25kg

Deatails

Name of products

1/3" Sony Color Ccd Hidden Camera

Model number

IC-H-D series

Model	IC-H-DSS	IC-H-DSQ	IC-H-DSM	IC-H-DSK	IC-H-DSF
Image Sensor	1/3" SONY ICX673AK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX633BK CCD	1/3" SONY ICX633BK CCD
Horizontal Resolution	700TV Lines Hi-sensitivity Effio, ATR, OSD, NR	600TV Lines Hi-sensitivity, OSD	540TV Lines Hi-sensitivity	480TV Lines Hi-sensitivity	420TV Lines Hi-sensitivity
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)	PAL:795 (H)× 596(V), NTSC:811 (H) ×508 (V)		PAL:752(H)x582(V) NTSC:768(H)x494(V)	PAL:500(H)x582(v) NTSC:510(H)x492(v)
IR LED	without IR LED
Lens	built-in 3.6mm board lens
	2.1/2.8/6 mm pinhole lens are optional
Minimum Illumination	0.1(day)/0.01(night)Lux		0.1Lux
Scanning System	NTSC:525 Lines,60 Field/sec,
	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGC)	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	Ø110x50mm
Camera Case Color	white
weigt	0.25kg
