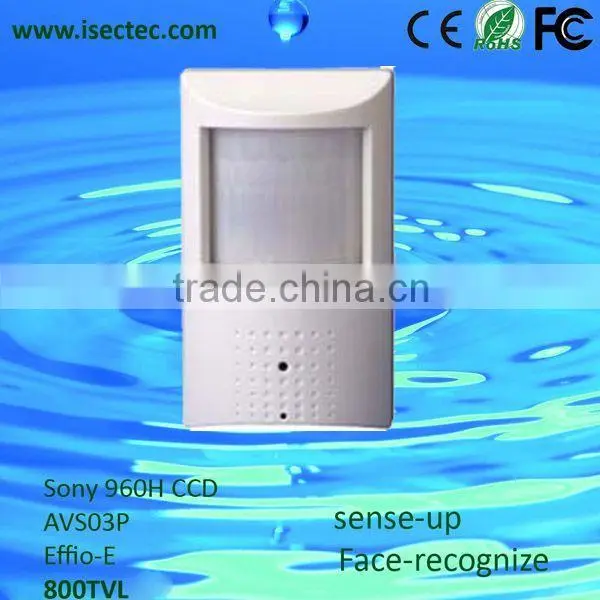

Sony Ccd Sensor Cctv Doorbell camera with 420tvl-800tvl Plastic hidden camera

Specifications

Plastic hidden camera
2Y warranty
Fast delivery & T/T for payment
8Y factory experience
CE/FCC/ROHS

Sony Ccd Sensor Cctv Doorbell camera with 420tvl-800tvl Plastic hidden camera



Features



1. PIR Hidden Camera

2. Sony Color CCD or Sharp Color CCD option

3. Sony Low Illumination CCD 0.1lux

4. Sharp ccd 0.5lux

5. High definition up to 700TVL(650/540/480/ 420TVL option)

6. 700TVL and 650TVL camera with built-in OSD, controlled by OSD cable

7. Standard lens:  3.7mm pinhole lens  2.5/2.8mm pinhole lens is optional

8. Without IR LED

9. 70(W)x120(H)x48(D)mm

10. 0.25kg



Model	IC-H-ESR	IC-H-ESS	IC-H-ESQ	IC-H-EHM	IC-H-ESK	IC-H-ESF
Image Sensor	1/3" SONY 960H CCD	1/3" SONY 960H CCD	1/3" SONY 760H CCD	1/3" SHARP 760H CCD	1/3" SONY Super HAD II CCD	1/3" SONY Super HAD II CCD
CCD model no.	ICX811AK(PAL) ICX810AK(NTSC)	ICX811AK(PAL) ICX810AK(NTSC)	ICX639BK(PAL) ICX638BK(NTSC)	RJ2365DB(PAL) RJ2355DB(NTSC)	ICX633BK(PAL) ICX632BK(NTSC)	ICX633BK(PAL) ICX632BK(NTSC)
DSP model no.	AVS03P	Effio-E CSD4140GG	Nextchip 2040E	Nextchip 2040E	Nextchip 2030E	SONY CXD3142R
Horizontal Resolution	800TVL OSD	700TV Lines OSD	650TV Lines OSD	650TV Lines OSD	480TV Lines Hi-sensitivity	420TV Lines Hi-sensitivity
TV System	PAL / NTSC
Effective Pixels	PAL:1020(H)*596(V) NTSC:1020H*508(V)		PAL:752(H)*582(V) NTSC:768(H)*494(V)		PAL:500(H)*582(V) N:510(H)*492(V)
Lens	built-in 3.7mm pinhole lens; 2.5mm pinhole lens is optional
Scanning System	2:1 Interlace
Sync System	Internal Synchronization
S/N Ratio	More than 48dB(AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec; PAL 1/50~1/100,000Sec
Video Output	1Vp-p,75ohm, BNC
Gain Control(AGC)	adjustable				Auto
White Balance	adjustable				Auto
Backlight Compensation	adjustable				Auto
Mirror	ON/OFF
Privacy Masking	ON/OFF (8 areas)
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Power Supply	DC12V, 300mA
Dimension	70(W)x120(H)x48(D)mm
Case Color	white
Weigt	0.25kg

Deatails













Why choose us?

u  Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.

u  9 years R&D and export experience and leading and professional manufacturer in CCTV industry.

u  High quality (material) with competitive and reasonable price.

u  2 year warranty and lifetime maintenance.

u  Fast delivery: usually within 3-10 work days since payment arrived.

u  Professional technical support; Best pre-sale, sale and after-sale service.

u  Welcome OEM & ODM, mixed order.

u  CE, FCC, RoHS passed.

Quality Control:

u  All raw materials are carefully selected and inspected.

u  Advanced production equipment is used and routinely inspected and serviced.

u  All operators and employees are thoroughly trained.

u  All products have passed the European Union RoHS standard and are CE, FCC certified.

u  Professional logistics personnel are employed to control the damage during the physical distribution of products.









Questions about our Plastic hidden camera:

u  Q: How long is the warranty?

u  A: 2 -years-warranty since delivered out.

u  Q: What's the MOQ?

u  A: 1pc for sample, 20pcs for OEM order.

u  Q: How long is the delivery time?

u  A: Sample order 3-5 working days, bulk order 5-10 working days.

u  Q: How do make payment?
