Help Center2016 New Design Easy Using 4ch AHD Hybrid DVR Kits 720P AHD Camera
Related Products
-
New 8ch Real-time 720P AHD DVR Security SystemUS$ 52 - 52MOQ: 1 Unit -
4ch Cctv Dvr Kit 720P HD Surveillance System Security KIT 4ch AHD DVR KITUS$ 32 - 32MOQ: 1 Set
-
AHD CAMERA Kits DIY Your Own Security System With 1mp Ahd Camera and Ahd DvrNegotiableMOQ: 1 Piece
-
New Camera de Seguridad for 2015 4 Piece 1mp AHD CAMERA and 1 Piece AHD DVRNegotiableMOQ: 1 Piece
-
AHD CAMERA Kits Including 1piece 4ch 720p Ahd Dvr , 4 Pieces 720p Ahd CameraNegotiableMOQ: 1 Piece

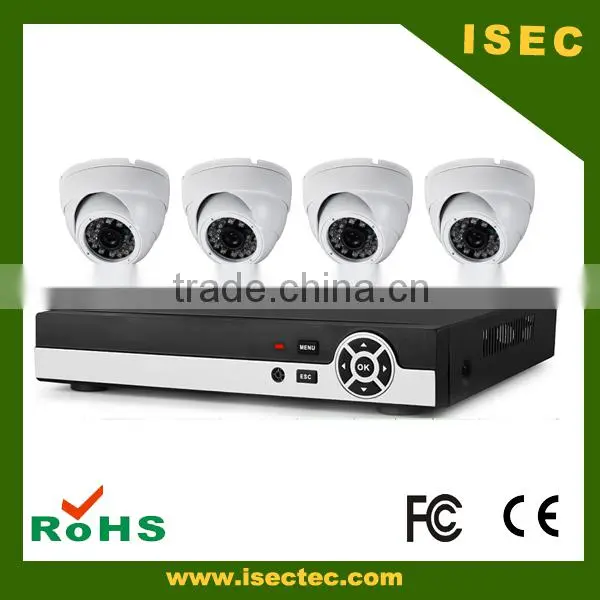

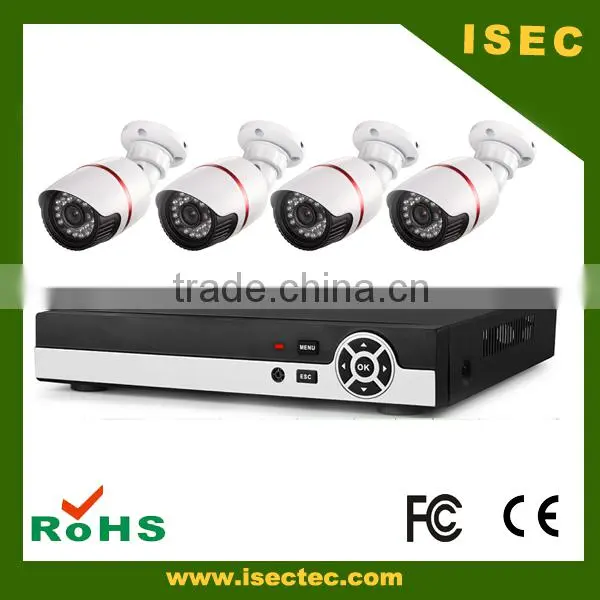

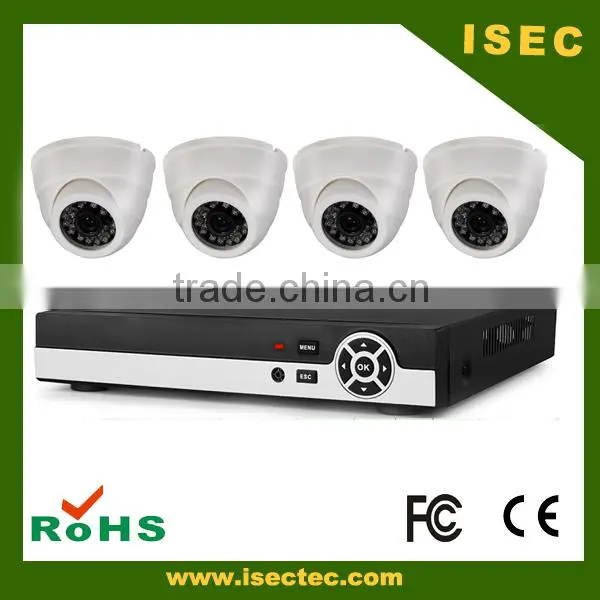

2016 New design easy using 4ch AHD Hybrid DVR kits with 720P AHD camera
AHD Hybrid DVR kits
Include:
1Pcs 4ch AHD DVR:
4ch H.264 720P real-time DVR
GM8283 processor
AHD and analog and IP hybrid DVR
Video: 4ch BNC input, 1CH BNC output
VGA: 1ch VGA output
HDMI: 1ch HDMI input
Model: 1, AHD: 4CH*720P
2, AHD+Analog: 2CH*720P+2CH
3, Analog: 4CH*960H
4, IPC: 4CH*720P
audio:4ch input /1ch output
Alarm: no
HDD:1*4TB SATA HDD
4Pcs AHD bullet Camera:
4pcs* IC-LDW20-AA7E
1mp AHD camera ir cut filter, 20ir, 3.6mm lens
camera color: black/white/grey
1pc*12V 5A with 1 to 4 splitter
4pcs*15 meters power+video cable
AHD Hybrid DVR Feature:
| System | Model | IC-AVR1004LE | ||||||
| Main Processor | GM8283 | |||||||
| Operating System | Embedded LINUX | |||||||
| User Interface | GUI, | |||||||
| Display | 1/4 | |||||||
| Video | Video Standards | PAL 625 line,50 f/s;NTSC 525 line 60 f/s | ||||||
| Video Compression | H.264 | |||||||
| Video Recording | D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s | |||||||
| Encode Capacity | 100/120fps(D1) | |||||||
| Motion Detection | Zones:64(8*8)detection zones | |||||||
| Record & Playback | Recording Mode | Manual>Alarm>Video Detection>Continuous | ||||||
| Playback | Multi CHs playback simultaneously | |||||||
| Search Mode | Time/Date,Alarm,Motion Detection & exact search | |||||||
| Storage & Backup | Space Occupation | Audio 28.8MB/H ;Video 25~450 MB/H | ||||||
| Record Storage | Local Hard disk and Network | |||||||
| Interface | Video Input | 4CH | ||||||
| Video Output | 1CH TV output BNC,1.0Vp-p,75Ω,1 VGA output | |||||||
| Audio Input | 1CH/4CH | |||||||
| Audio Output | 1CH | |||||||
| Net Interface | RJ-45 | |||||||
| PTZ Control | Support | |||||||
| USB Interface | 2 x USB2.0 | |||||||
| Hard Disk | 1 SATA ports | |||||||
| Dimension | L233*W300*H45 |
|||||||
AHD bullet camera Feature:
| Model | IC-LDW20-AA7E |
| Image Sensor | 1/4" GC CMOS |
| Horizontal Resolution | 1MP/720P, OSD, HDNR, D-WDR |
| TV System | PAL/NTSC |
| Effective Pixels | PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V) |
| IR LED | 24pcs Ø5mm IR LEDs |
| IR project distance | 20 meters |
| Lens | standard: 3.6mm |
| 6mm, 12mm lens optional | |
| Minimum Illumination | 0 Lux/F2.0 (LED ON) |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Scanning System | NTSC:525 Lines,60 Field/sec, |
| PAL:625 Lines 50 Field/sec | |
| Sync System | Internal Synchronization |
| Gamma Characteristic | 0.45 |
| S/N Ratio | ≥65dB (AGC OFF) |
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; |
| Video Output | Composite Signal (1.0Vp-p, 75Ω), BNC |
| Gain Control(AGC) | Auto |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Operation Temperature | -10C~ +50C RH95% MAX |
| Storage Temperature | -20C~ +60C RH95% MAX |
| Waterproof | IP66 |
| Power Supply | DC12V,400mA |
| Dimension | Ø119X83(H)mm |
| Camera Case Color | default: black/white/grey |
| weight | 0.5kg |
AHD cameras effect:

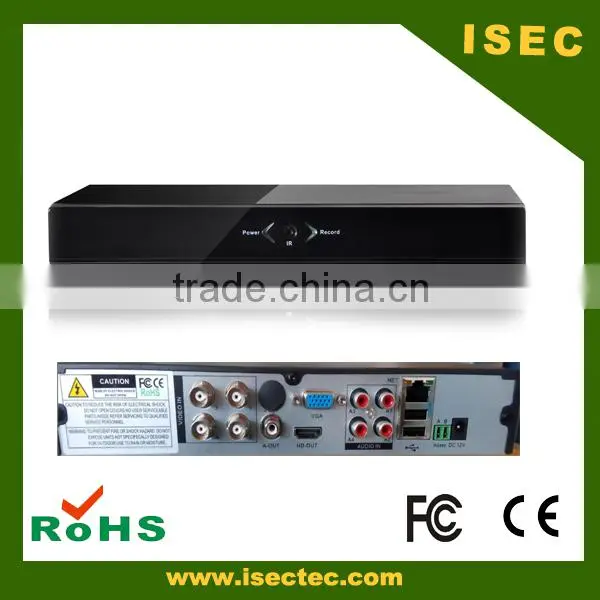

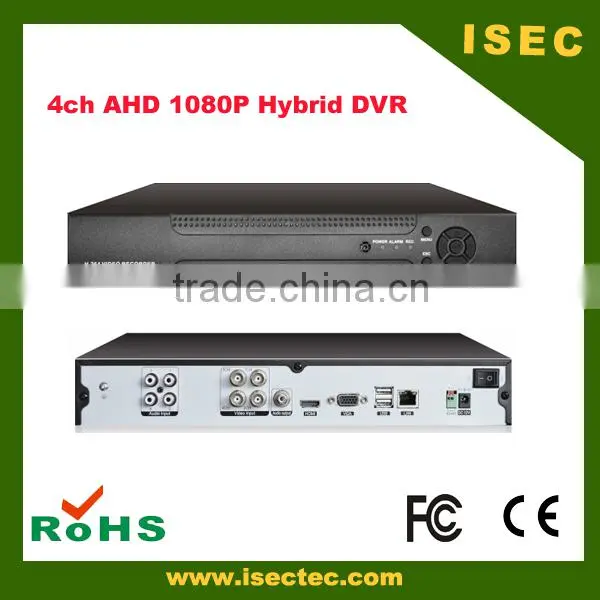

AHD Hybrid DVR:
AHD camera kits packaging:
AHD camera kits Shipping:
1. 2 years warranty
2. CE/FCC/RoHS certification
3. DHL, FedEX, UPS, Express, TNT for your optional, door to door.
4. 3~5 work days delivery time.
5. Professional technology team.
6. Friendship based on the businessship.
Company proview:
Contact me:
