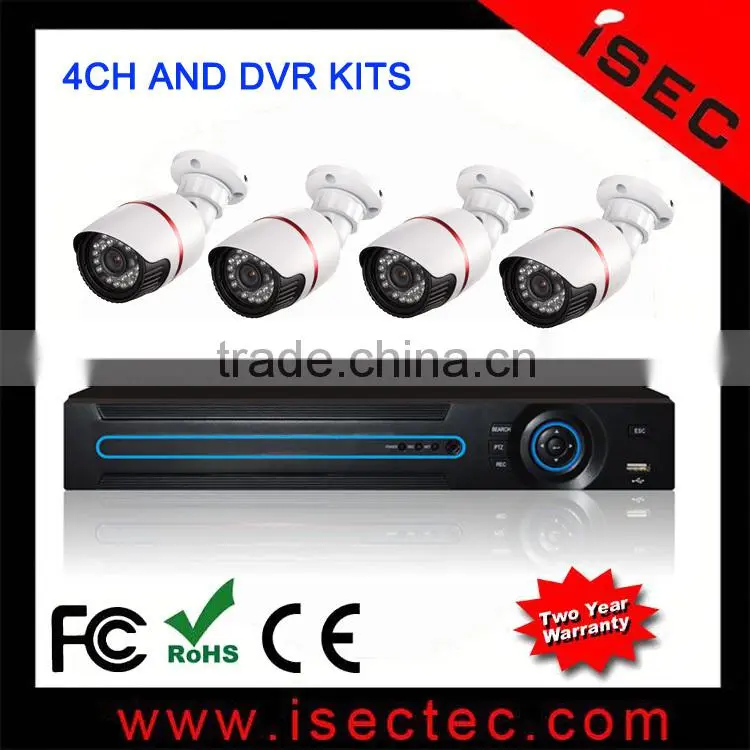

AHD CAMERA kits DIY your own security system with 1mp ahd camera and ahd dvr
♦ Product type: AHD CAMERA kits DIY your own security system with 1mp ahd camera and ahd dvr
♦ 720p/960p optional,
♦ Innovative Double Program Technology. One program for daytime, bring out the real color of objects; another program for nighttime, bring out clear picture at IR LED working, improve 40% sensitivity than a normal IR camera.
♦ IP66, Fully weatherproof and dustproof.
♦ 3.6mm fixed Lens .

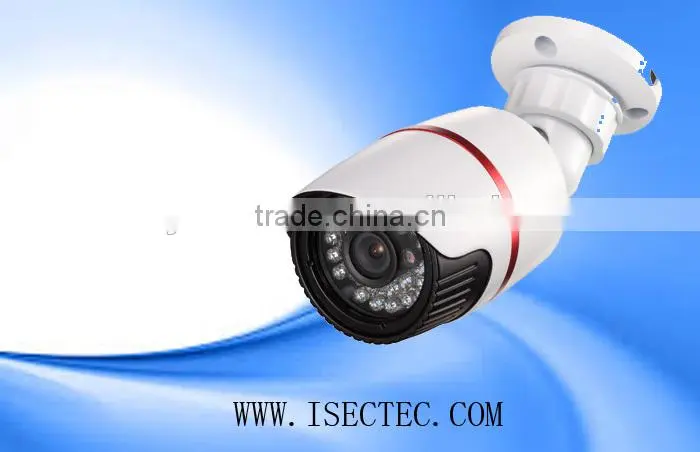

♦ Wall mount installation high quality security bullet cameras.
Detail Pictures
Model NO. |
IC-LBW20-MA7 |
IC-LBW20-MA7B |
IC-LBW20-MA7C |
IC-LBW20-MA7D |
VIDEO | ||||
Image Device |
1/4" 1MP OV9712 CMOS |
1/3" 1.3MP IMX238 CMOS |
1/4" 1MP AR0141A CMOS |
1/3" 1.3MP AR0130 CMOS |
DSP |
NVP2431 |
|||
TV System |
PAL/NTSC |
|||
Effective Pixels |
1280(H)×720(V) , 1MP |
1280(H)*960(V) 1.3MP |
1280(H)×720(V) , 1MP |
1280(H)*960(V) 1.3MP |
Scanning System |
Progressive Scan |
|||
Synchronization |
Internal |
|||
Image Resolution |
1280*720(720P) |
1280*960(960P) |
1280*720(720P) |
1280*960(960P) |
Frame rate |
PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720) |
|||
Min. Illumination |
Color: 1.0lux F1.2; B/W: 0 Lux(IR ON) |
|||
S/N Ratio |
>50dB |
|||
Video Output |
AHD/CVBS (960H) |
|||
LENS | ||||
Focal Length |
3.6mm lens |
|||
IR-CUT |
3MP IR filter cut |
|||
OPERATIONAL(OSD MENU) | ||||
Day & Night |
AUTO /COLOR /B/W /EXT |
|||
D-WDR |
OFF/ON/AUTO |
|||
Noise Reduction |
3DNR: OFF/Low / Middle / High |
|||
Back Light |
BLC/HSBLC/OFF |
|||
Auto Gain Control |
0~15 Adjustable |
|||
Defog |
OFF / AUTO |
|||
Motion Dectection |
ON(Motion area and sensitivity can be settled)/OFF |
|||
Sense Up |
OFF/AUTO(2X~30X Adjustable) |
|||
Pricacy Mask |
OFF/ON(8 Masks) |
|||
Electronic Shutter Speed |
2X~30X/AUTO/1/50 ~ 1/50,000sec |
|||
White Balance |
ATW/AWC→SET/INDOOR/OUTDOOR/MANUAL/AWB |
|||
Brightness |
0~100 Adjustable |
|||
Mirror |
OFF/MIRROR/V-FLIP/ROTATE |
|||
Sharpness |
OFF/AUTO(Level,Start AGC and End AGC can be settled) |
|||
OSD Language |
English, Chinese, Spanish, German, French, Russian, Portuguese, Italian, Polska, Nederland, Turkish |
|||
General | ||||
Infrared LED |
24pcs Ø5mm IR LEDs |
|||
IR Distance |
about 20 Meters |
|||
Infrared Spectrum |
850nm |
|||
Input Current |
400mA |
|||
Adapter Requirement |
DC 12V, 1A |
|||
Water-proof |
IP66 |
|||
MECHANICAL | ||||
Color |
White case |
|||
Bracket |
/ |
|||
ENVIRONMENTAL | ||||
Operation Temperature |
-10℃~ +50℃ |
|||
Storage Temperature |
-20℃~ +60℃ |
|||
♦ Package: 50pcs / carton
♦ Carton size: 42.4*40.4*42.4 cm
Shipping
s
Why choose us?
u Provide one-stop-products: from CCTV camera, IP camera, DVR to NVR, video balun, etc to meet your whole project needs.
u 9 years R&D and export experience and leading and professional manufacturer in CCTV industry.
u High quality (material) with competitive and reasonable price.
u 2 year warranty and lifetime maintenance.
u Fast delivery: usually within 3-10 work days since payment arrived.
u Professional technical support; Best pre-sale, sale and after-sale service.
u Welcome OEM & ODM, mixed order.
u CE, FCC, RoHS passed.
Quality Control:
u All raw materials are carefully selected and inspected.
u Advanced production equipment is used and routinely inspected and serviced.
u All operators and employees are thoroughly trained.
u All products have passed the European Union RoHS standard and are CE, FCC certified.
u Professional logistics personnel are employed to control the damage during the physical distribution of products.
Shenzhen Isec Tchnologies Co., Ltd is a leading manufacturer of security dome cameras, cctv camera, analog cameras, IP cameras, HD-SDI cameras, DVR, NVR, and accessories in Shenzhen, China.
