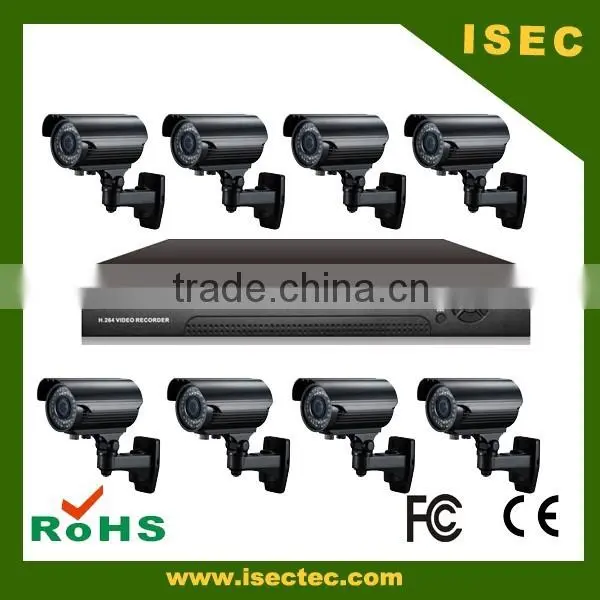

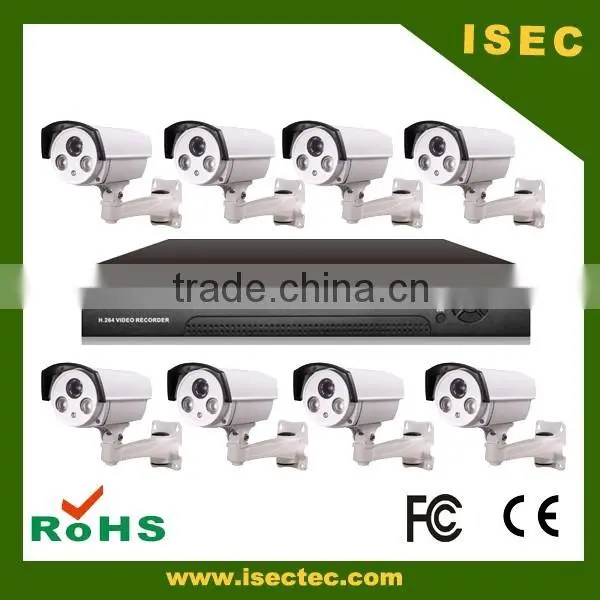

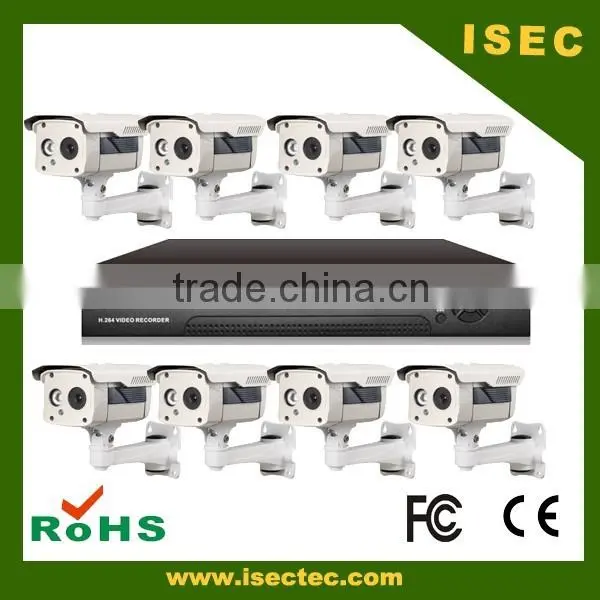

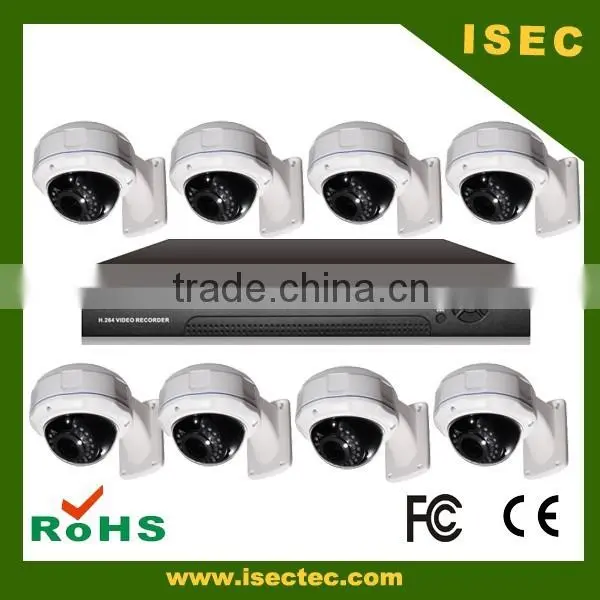

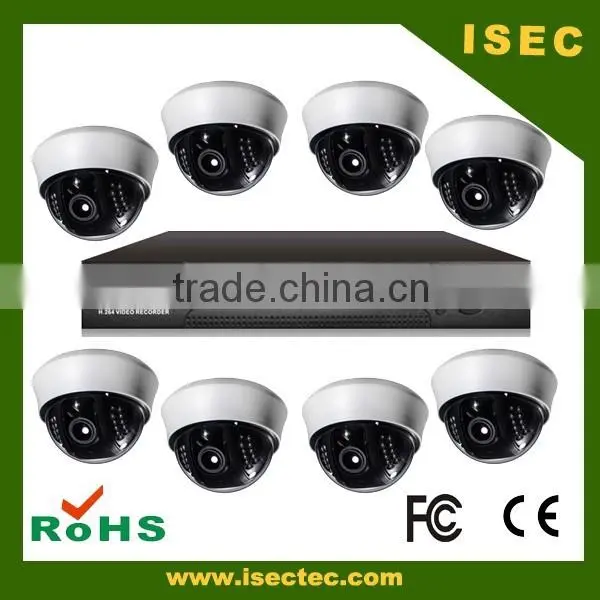

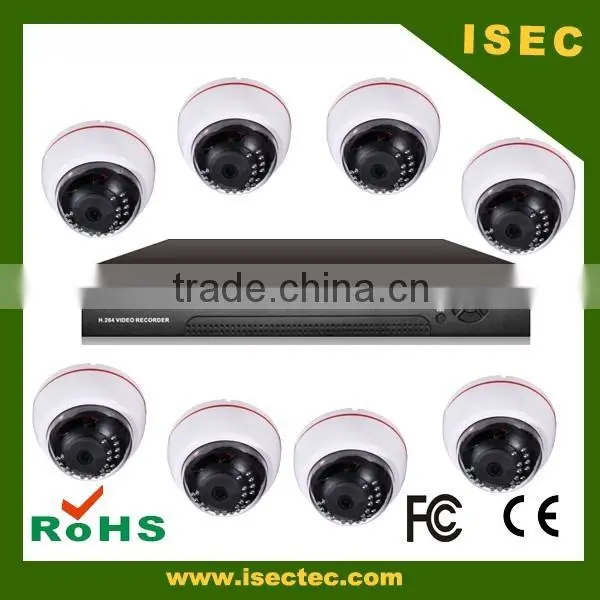

1080P Smart Phone 2MP CCTV AHD System Real Time Hybird DVR 8CH 1080P AHD Kits
AHD Hybrid DVR kits
Include:
1Pcs 8ch 1080P AHD Hybrid DVR:
--8ch H.264 1080P real-time DVR
--Hi3531 processor
--AHD and analog and IP hybrid DVR
--Video: 8ch BNC input, 1CH BNC output
--VGA: 1ch VGA output
--HDMI: 1ch HDMI input
--Model:
1.AHD: 8CH*1080P(compatible with 720P)
2.AHD+IP: 8CH*720P+4CH*IPC1080P
3.IP: 9CH*3.0M or 4CH*5.0M
--Audio: Audio: 4ch input / 1ch output
--Alarm: 4ch input / 1ch output
--HDD: 2*4TB SATA HDD, 1pc 2.5”, 1pc 3.5”
4Pcs/8pcs 1080P AHD Camera:
2mp AHD camera ir cut filter, 40ir, 2.8-12mm manual zoom lens
camera color: black
1pc*12V 5A with 1 to 8 splitter
8pcs*15 meters power+video cable
AHD Hybrid DVR Feature:
| System | Model | IC-AVR1408B | ||||||
| Main Processor | Hi3531 processor | |||||||
| Operating System | Embedded LINUX | |||||||
| User Interface | GUI, | |||||||
| Display | 1/4 | |||||||
| Video | Video Standards | PAL 625 line,50 f/s;NTSC 525 line 60 f/s | ||||||
| Video Compression | H.264 | |||||||
| Video Recording | D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s | |||||||
| Encode Capacity | 100/120fps(D1) | |||||||
| Motion Detection | Zones:64(8*8)detection zones | |||||||
| Record & Playback | Recording Mode | Manual>Alarm>Video Detection>Continuous | ||||||
| Playback | Multi CHs playback simultaneously | |||||||
| Search Mode | Time/Date,Alarm,Motion Detection & exact search | |||||||
| Storage & Backup | Space Occupation | Audio 28.8MB/H ;Video 25~450 MB/H | ||||||
| Record Storage | Local Hard disk and Network | |||||||
| Interface | Video Input | 8CH | ||||||
| Video Output | 1CH TV output BNC,1.0Vp-p,75Ω,1 VGA output | |||||||
| Audio Input | 1CH/4CH | |||||||
| Audio Output | 1CH | |||||||
| Net Interface | RJ-45 | |||||||
| PTZ Control | Support | |||||||
| USB Interface | 2 x USB2.0 | |||||||
| Hard Disk | 2 SATA ports | |||||||
| Dimension | L233*W300*H45 |
|||||||
AHD bullet camera Feature:
| Model | IC-LBMW40-AA2B |
| Image Sensor | 1/3" SONY CMOS |
| Horizontal Resolution | 2MP/1080P, OSD, HDNR, D-WDR |
| TV System | PAL/NTSC |
| Effective Pixels | PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V) |
| IR LED | 42pcs IR LEDs |
| IR project distance | 40 meters |
| Lens | standard: 2.8-12mm manual zoom lens |
| Minimum Illumination | 0 Lux/F2.0 (LED ON) |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Scanning System | NTSC:525 Lines,60 Field/sec, |
| PAL:625 Lines 50 Field/sec | |
| Sync System | Internal Synchronization |
| Gamma Characteristic | 0.45 |
| S/N Ratio | ≥65dB (AGC OFF) |
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; |
| Video Output | Composite Signal (1.0Vp-p, 75Ω), BNC |
| Gain Control(AGC) | Auto |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Operation Temperature | -10C~ +50C RH95% MAX |
| Storage Temperature | -20C~ +60C RH95% MAX |
| Waterproof | IP66 |
| Power Supply | DC12V,400mA |
| Dimension | 156(W) x89(H) x92.5(D)mm |
| Camera Case Color | default: black |
| weight | 1.5kg |
1080P AHD cameras effect:
1080P AHD Hybrid DVR:
AHD camera kits packaging:
AHD camera kits Shipping:
1. 2 years warranty
2. CE/FCC/RoHS certification
3. DHL, FedEX, UPS, Express, TNT for your optional, door to door.
4. 3~5 work days delivery time.
5. Professional technology team.
6. Friendship based on the businessship.
