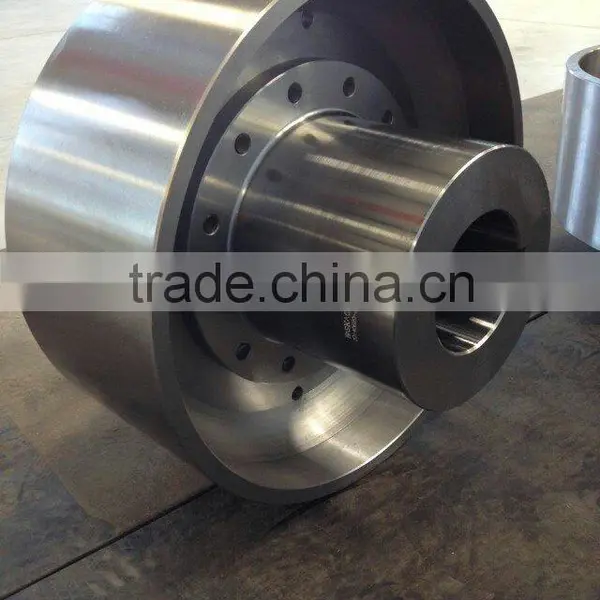

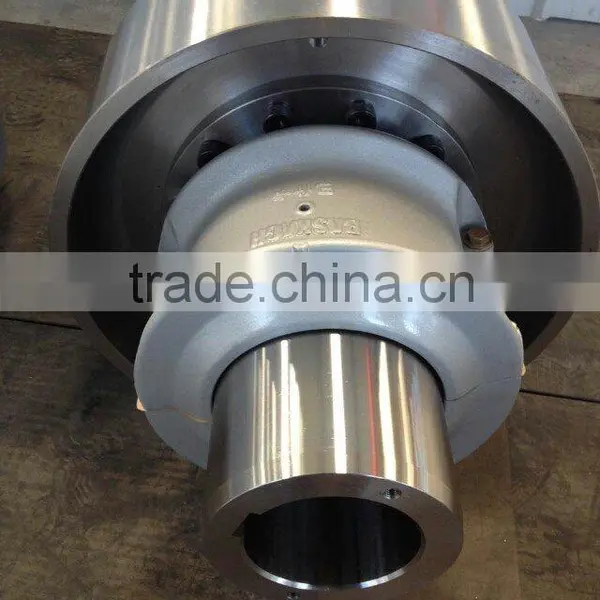

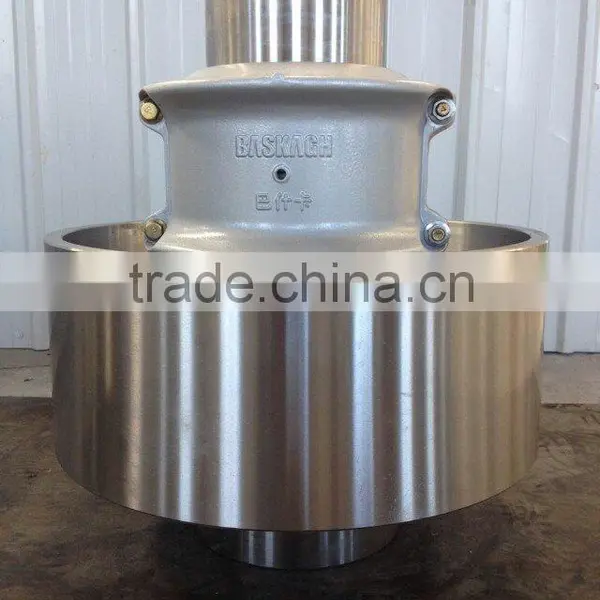

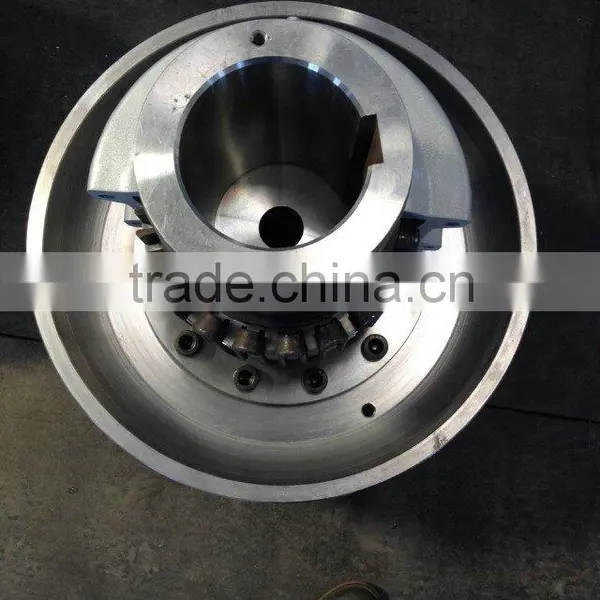

High Quality Economic Grid Coupling With Brake Wheel

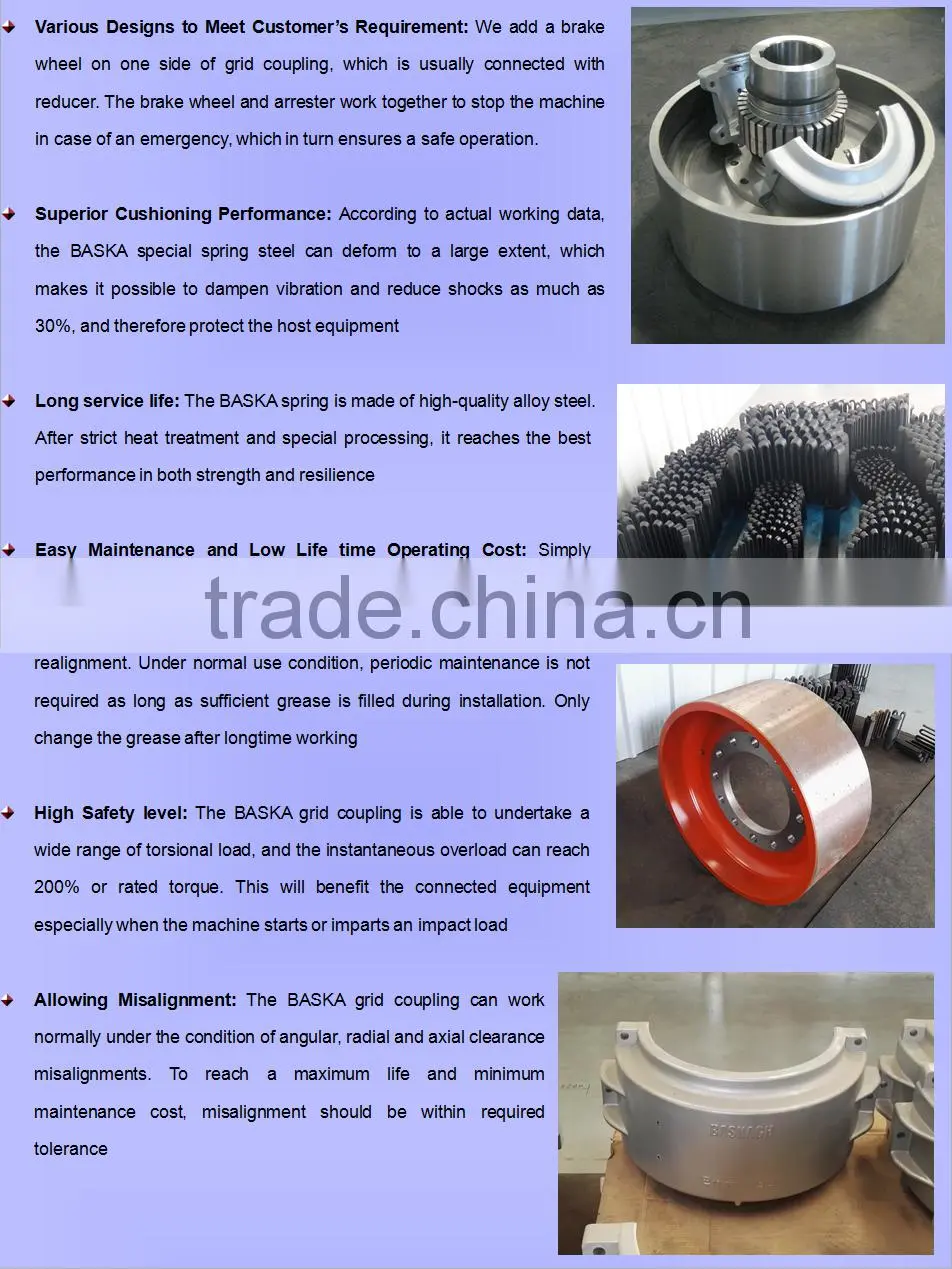

Product features of grid coupling with brake wheel:

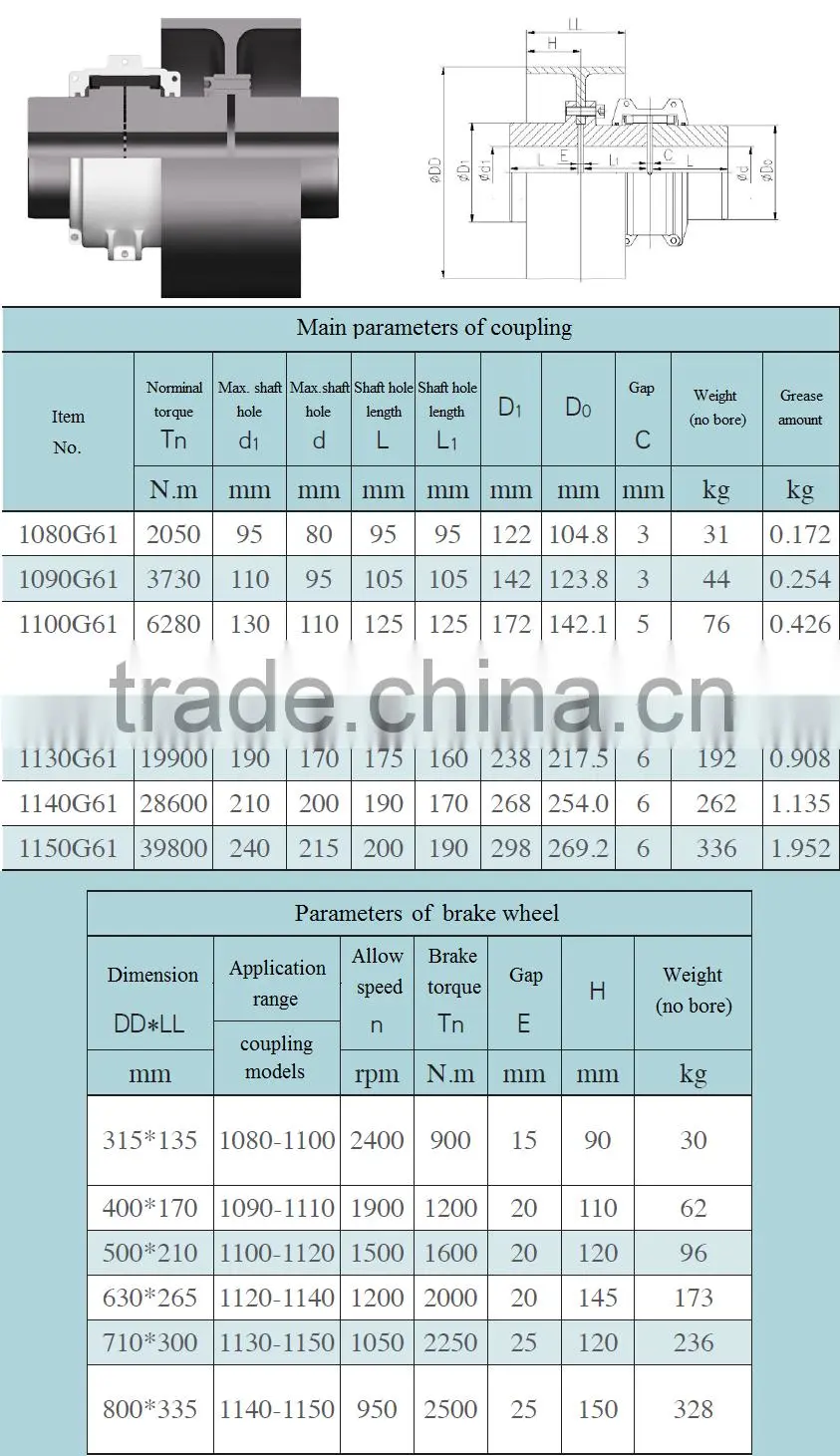

Product models of grid coupling with brake wheel:
Customize your product
|
1. Application to: e.g. conveyor, crusher, compressor, etc. 2. Driving end related parameters: Motor power(KW): Motor rotation speed(rpm): Reducer speed ratio: |
|
For cylindrical shaft, please provide: Shaft end gap length B(mm): Center height H(mm): Diameter of brake wheel(mm): High speed shaft: Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ; Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ; Low speed shaft: Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ; Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ; | |
Notice:
1. If you do not provide B or H, it is defaulted to enough space for installation based on parameters in catalog.
2. If your requirement is different from this drawing, please provide your technical drawing.
Item |
Content |
Package |
Standard export wooden package with fumigation or client required package. |
Delivery |
About 30 to 45 days after receiving down payment. The accurate time is determined by the model of product. |
Payment term |
T/T |
Customer service |
The time of warranty is one year. During the time of warranty, if the products damage, we would give response during 48 hours and send technician to handle. |
Beijing Baska Guanhua Technology Co., Ltd was established in Beijing on 28th March, 2013. It is a wholly-owned subsidiary of Tonghua Mining Machinery Co., Ltd-a professional mining machinery supplier in China. Tonghua was founded in 1998 and is located in Datong, Shanxi province, which is a professional manufacturer engaged in the research, development, production, sale and service of belt conveyor, scraper conveyor, grid couplings, backstop and coal washing equipment, etc. It occupies an area of 161,334m2 and has more than 2,200 employees. We have excellent teams who focus on product design & development, quality control & inspection and company running. We also have a large-scale production capacity. Every year we normally produce about 600 sets of belt conveyors, 100 sets of scraper conveyors and 90 sets of coal washing equipment, etc. In 2006, Tonghua gained both ISO 9001 International Quality Certificate and ISO 14001 International Environmental Certificate and had established a comprehensive modern enterprise management mode. For a dozen years we have consistently followed the fundamental principles of survival starts from quality, benefits derive from management and development comes from trust.
* Drum Gear Coupling * Belt Conveyor * Backstop
*Vibrating screen *Pully *Idler Roller
