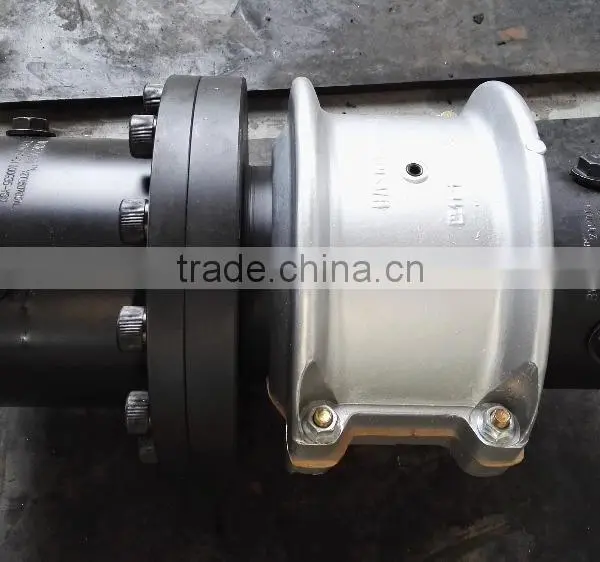

High Quality Economic Grid Coupling With Flange

1. Application to: e.g. conveyor, crusher,               compressor, etc.

2. Driving end related parameters:

     Motor power(KW):

     Motor rotation speed(rpm):

     Reducer speed ratio:

For cylindrical shaft, please provide:

Shaft end gap length B(mm):

Center height H(mm):

High speed shaft:

Driving end: shaft diameter d₁(mm)             , shaft length L₁(mm)             ,

                      key groove width b(mm)           , key groove depth t(mm)          ;

Driven end: shaft diameter d₂(mm)              , shaft length L₂(mm)             ,

                      key groove width b(mm)           , key groove depth t(mm)          ;

Low speed shaft:

Driving end: shaft diameter d₁(mm)             , shaft length L₁(mm)             ,

                      key groove width b(mm)           , key groove depth t(mm)          ;

Driven end: shaft diameter d₂(mm)              , shaft length L₂(mm)             ,

                      key groove width b(mm)           , key groove depth t(mm)          ;

Item

Content

Package

Standard export wooden package with fumigation or client required package.

Delivery

About 30 to 45 days after receiving down payment.

The accurate time is determined by the model of product.

Payment term

T/T

Customer service

The time of warranty is one year.

During the time of warranty, if the products damage, we would give response during 48 hours and send technician to handle.
