AHD 4ch Complete AHD DVR Kits, 8ch AHD Camera Kits, AHD Security System

Name: AHD 4ch Complete AHD DVR Kits, 8ch AHD Camera Kits, AHD Security System
Brand: ISEC
SKU: 100463933
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ISEC

Model Number:

IC-LDMW30-FA7 + IC-AVR0401

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ISEC

Model Number IC-LDMW30-FA7 + IC-AVR0401

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, OV9712

Technology Infrared

Special Features Waterproof / Weatherproof

Product Description

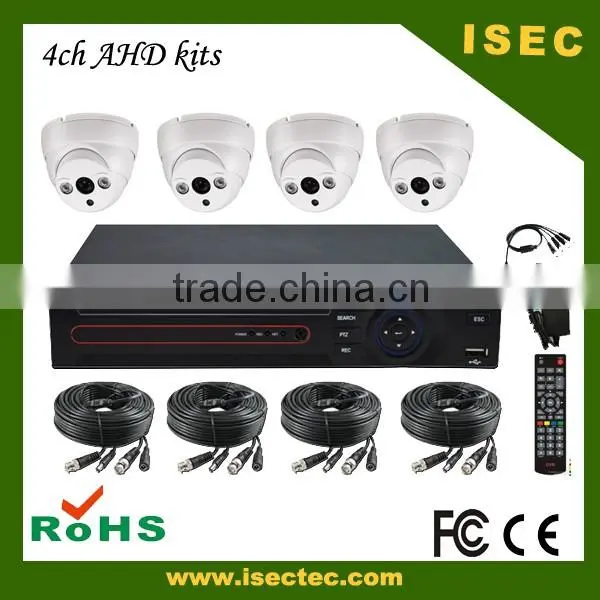

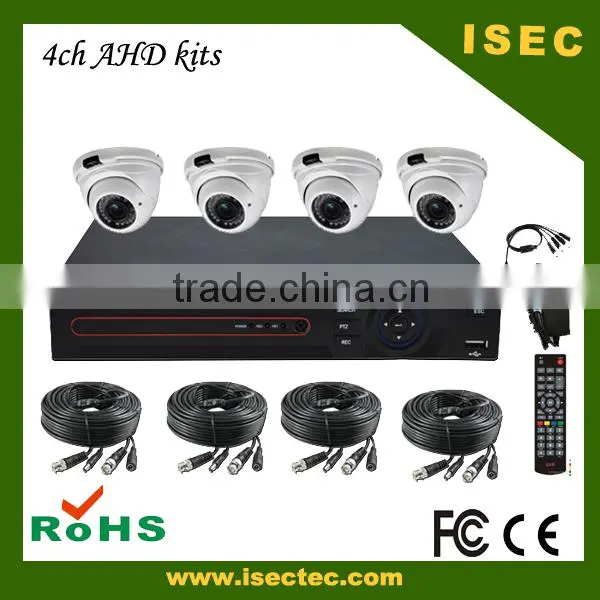

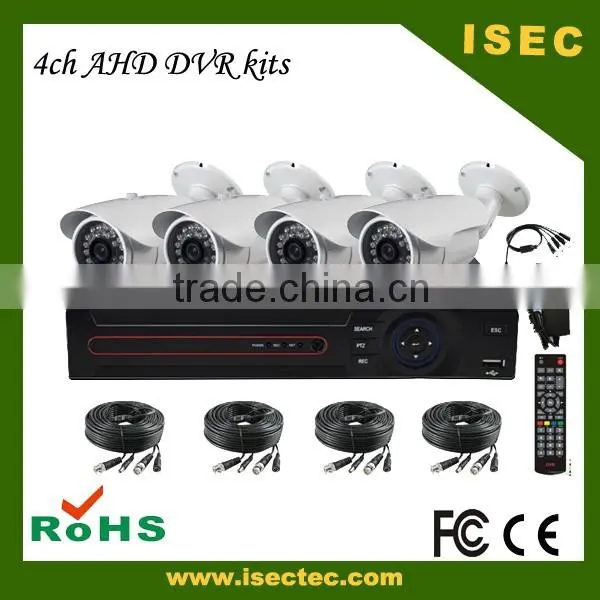

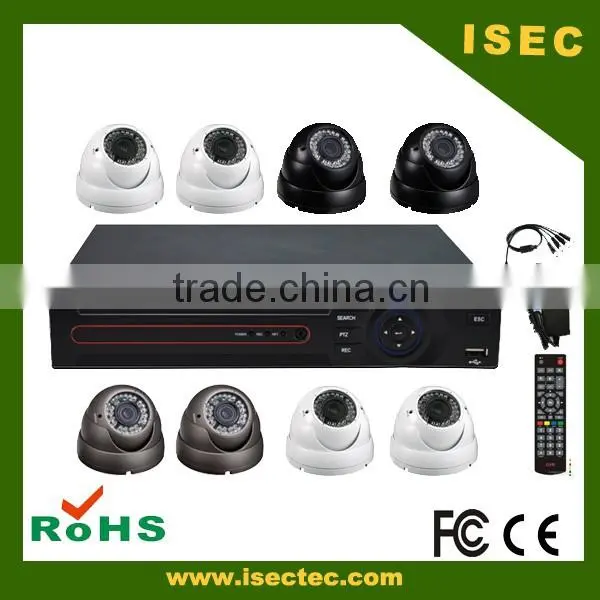

AHD 4ch Complete AHD DVR kits, 8ch AHD camera kits, AHD security system

Include:

1Pcs AHD DVR:

1pc*A7104E

4ch AHD DVR, 1ch Audio1080P HDMI, no 3G wifi
support 1*4TB HDD

4Pcs AHD Camera:

4pcs*AHD-5621-A
1mp AHD camera ir cut filter, 30ir, 2.8-12mm manual zoom lens

camera color: black/white

1pc*12V 5A with 1 to 4 splitter

4pcs*15 meters power+video cable

AHD DVR Feature:

System	Model	HS-7104
	Main Processor	HI3515
	Operating System	Embedded LINUX
	User Interface	GUI,
	Display	1/4
Video	Video Standards	PAL 625 line,50 f/s;NTSC 525 line 60 f/s
	Video Compression	H.264
	Video Recording	D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
	Encode Capacity	100/120fps(D1)
	Motion Detection	Zones:64(8*8)detection zones
Record & Playback	Recording Mode	Manual>Alarm>Video Detection>Continuous
	Playback	Multi CHs playback simultaneously
	Search Mode	Time/Date,Alarm,Motion Detection & exact search
Storage & Backup	Space Occupation	Audio 28.8MB/H ;Video 25~450 MB/H
	Record Storage	Local Hard disk and Network
Interface	Video Input	4CH
	Video Output	1CH TV output BNC,1.0Vp-p,75Ω,1 VGA output
	Audio Input	1CH/4CH
	Audio Output	1CH
	Net Interface	RJ-45
	PTZ Control	Support
	USB Interface	2 x USB2.0
	Hard Disk	1 SATA ports
	Dimension	L233W300H45

AHD camera Feature:

Model	IC-LDW20-FA7
Image Sensor	1/4" 1MP CMOS Sensor
Horizontal Resolution	1MP 720P OSD, D-WDR, Sense-up, 3DNR, Defog, HLC/BLC, Privacy Zone Masking, Dynamic Motion Detection
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)
IR LED	36pcs Ø5mm IR LEDs
IR project distance	30 meters
Lens	standard: 2.8-12mm manual zoom lens
Lens	6-15, 9-22mm lens optional
Minimum Illumination	0 Lux/F2.0 (LED ON)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Scanning System	NTSC:525 Lines,60 Field/sec,
Scanning System	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characteristic	0.45
S/N Ratio	≥65dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGC)	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	Ø119X83(H)mm
Camera Case Color	default: white
weight	1kg
