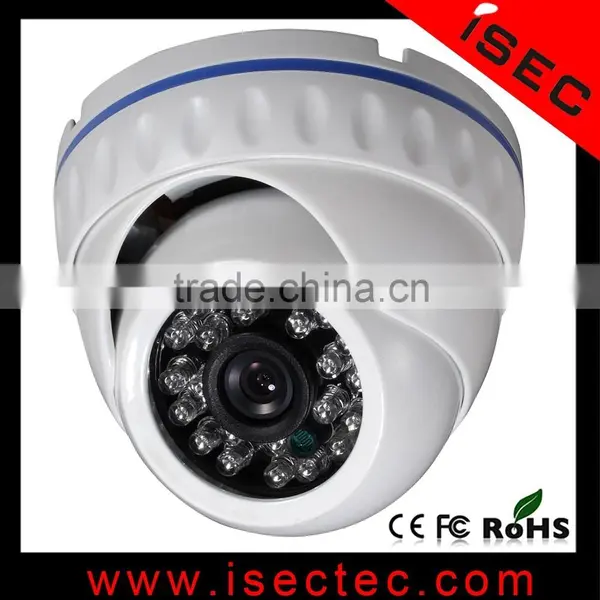

2015 Hot New 720P 960P 1080P AHD CCTV Camera

Model NO.

IC-LDW20-BA7

IC-LDW20-BA7B

IC-LDW20-BA7C

IC-LDW20-BA7D

VIDEO

Image Device

1/4" 1MP OV9712 CMOS

1/3" 1.3MP  IMX238 CMOS

1/4" 1MP AR0141A CMOS

1/3" 1.3MP AR0130 CMOS

DSP

NVP2431

TV System

PAL/NTSC

Effective Pixels

1280(H)×720(V) , 1MP

1280(H)*960(V) 1.3MP

1280(H)×720(V) , 1MP

1280(H)*960(V) 1.3MP

Scanning System

Progressive Scan

Synchronization

Internal

Image Resolution

1280*720(720P)

1280*960(960P)

1280*720(720P)

1280*960(960P)

Frame rate

PAL: 25fps(at)720P(1280×720); NTSC: 30fps(at)720P(1280×720)

Min. Illumination

Color: 1.0lux(at)F1.2; B/W: 0 Lux(IR ON)

S/N Ratio

>50dB

Video Output

AHD/CVBS (960H)

LENS

Focal Length

3.6mm lens

2.8/6mm lens option

IR-CUT

3MP IR filter cut

OPERATIONAL(OSD MENU)

Day & Night

AUTO /COLOR /B/W /EXT

D-WDR

OFF/ON/AUTO

Noise Reduction

3DNR: OFF/Low / Middle / High

Back Light

BLC/HSBLC/OFF

Auto Gain Control

0~15 Adjustable

Defog

OFF / AUTO

Motion Dectection

ON(Motion area and sensitivity can be settled)/OFF

Sense Up

OFF/AUTO(2X~30X Adjustable)

Pricacy Mask

OFF/ON(8 Masks)

Electronic Shutter Speed

2X~30X/AUTO/1/50 ~ 1/50,000sec

White Balance

ATW/AWC→SET/INDOOR/OUTDOOR/MANUAL/AWB

Brightness

0~100 Adjustable

Mirror

OFF/MIRROR/V-FLIP/ROTATE

Sharpness

OFF/AUTO(Level,Start AGC and End AGC can be settled)

OSD Language

English, Chinese, Spanish, German, French, Russian, Portuguese, Italian, Polska, Nederland, Turkish

General

Infrared LED

24pcs Ø5mm IR LEDs

IR Distance

about 20 Meters

Infrared Spectrum

850nm

Input Current

400mA

Adapter Requirement

DC 12V, 1A

Water-proof

IP66

MECHANICAL

Color

White case

Bracket

/

Dimensions

Ø92X76(H)mm

Net Weight

0.4kg/pcs

ENVIRONMENTAL

Operation Temperature

-10℃~ +50℃

Storage Temperature

-20℃~ +60℃
