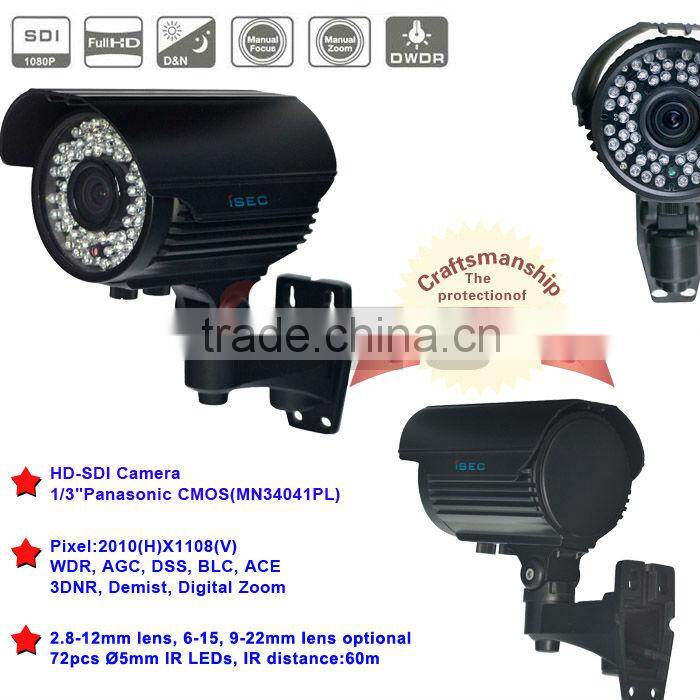

Bullet IP66 Waterproof Ir Cctv CVI Camera

Bullet IP66 Waterproof Ir Cctv CVI Camera thumbnail-1
Bullet IP66 Waterproof Ir Cctv CVI Camera thumbnail-2
Bullet IP66 Waterproof Ir Cctv CVI Camera thumbnail-3
Bullet IP66 Waterproof Ir Cctv CVI Camera photo-1

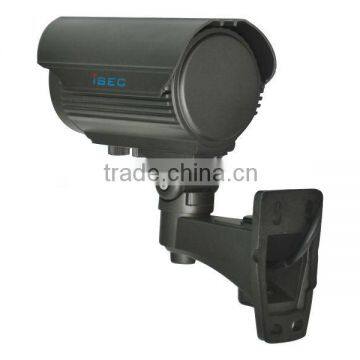

Bullet IP66 Waterproof Ir Cctv CVI Camera photo-2

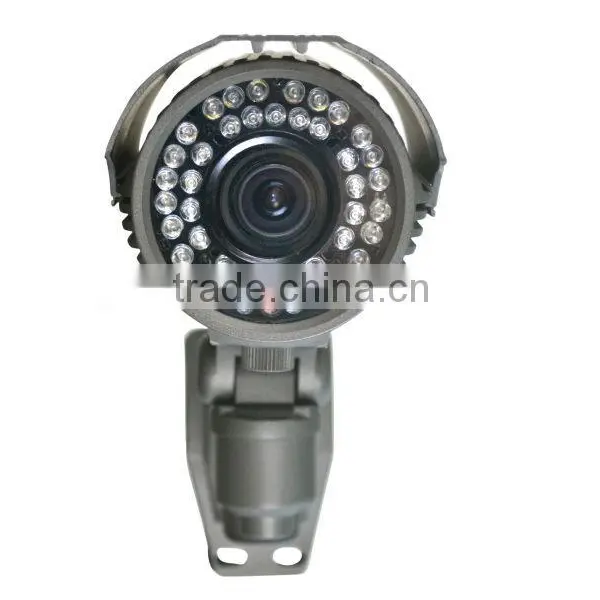

Bullet IP66 Waterproof Ir Cctv CVI Camera photo-3
US$ 31.5 - 60.3 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC
Model Number:
IC-LBMW60-C SERIES
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC
Model Number IC-LBMW60-C SERIES
Type Analog Camera
Style Bullet Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

Bullet IP66 Waterproof Ir Cctv CVI Camera

Bullet IP66 Waterproof Ir Cctv CVI Camera


Product Description
Model IC-LBMW60-CSR IC-LBMW60-CSS IC-LBMW60-CSQ IC-LBMW60-CHM IC-LBMW60-CSK IC-LBMW60-CSF
Image Sensor 1/3" SONY 960H CCD 1/3" SONY 960H CCD 1/3" SONY 760H CCD 1/3" SHARP 760H CCD 1/3" SONY Super HAD II CCD 1/3" SONY Super HAD II CCD
CCD model no. ICX811AK(PAL)
ICX810AK(NTSC)		 ICX811AK(PAL)
ICX810AK(NTSC)		 ICX639BK(PAL)
ICX638BK(NTSC)		 RJ2365DB(PAL)
RJ2355DB(NTSC)		 ICX633BK(PAL)
ICX632BK(NTSC)		 ICX633BK(PAL)
ICX632BK(NTSC)
DSP model no. AVS03P Effio-E
CSD4140GG		 Nextchip 2040E Nextchip 2040E Nextchip 2030E SONY CXD3142R
Horizontal Resolution 800TVL
OSD		 700TV Lines
OSD		 650TV Lines
OSD		 650TV Lines
OSD		 480TV Lines
Hi-sensitivity		 420TV Lines
Hi-sensitivity
TV System PAL / NTSC
Effective Pixels PAL:1020(H)*596(V)
NTSC:1020H*508(V)		 PAL:752(H)*582(V)
NTSC:768(H)*494(V)		 PAL:500(H)*582(V)
N:510(H)*492(V)
IR LED 72pcs Ø5mm IR LEDs
IR distance 60 meters
Infrared Spectrum 850nm
Lens 2.8-12mm/6-15mm/9-22mm manual zoom lens for optional
Min Illumination 0 Lux/F2.0 (LED ON)
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Scanning System 2:1 Interlace
Sync System Internal Synchronization
S/N Ratio More than 48dB(AGC OFF)
Electronic Shutter Time NTSC 1/60~1/100,000Sec; PAL 1/50~1/100,000Sec
Video Output 1Vp-p,75ohm, BNC
Gain Control(AGC) adjustable    Auto
White Balance adjustable    Auto
Backlight Compensation adjustable    Auto
Mirror ON/OFF
Privacy Masking ON/OFF (8 areas)
Operation Temperature -10C~ +50C RH95% MAX
Storage Temperature -20C~ +60C RH95% MAX
Waterproof IP66
Power Supply DC12V, 450mA
Braket Metal waterproof case, Ceiling mount

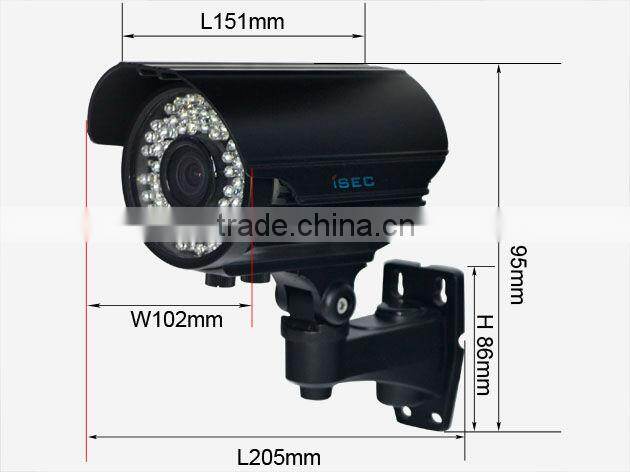

Dimension 161(W) x94(H) x102(D)mm
Case Color Default
Weigt 1.5kg

Bullet IP66 Waterproof Ir Cctv CVI Camera



Features:

Security Camera

Varifocal Weatherproof IR Bullet camera

1/3”Sony/Sharp CCD

800/700/650/480/420 TVL available

1/3” 1/4” 1/3.4” 1/3.7” CMOS

1000/700/600/480/420 TVL available

2.8-12mm Manual zoom lens, 6-15/ 9-22mm lens optional

72pcs IR LED, 60m IR range

Waterproof: IP66

Dimension: Ø161(W) x94(H) x102(D)mm

Weight: 1500g

Bullet IP66 Waterproof Ir Cctv CVI Camera


Packaging & Shipping




Our Services

Why choose us?

u  Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.

u  9 years R&D and export experience and leading and professional manufacturer in CCTV industry.

u  High quality (material) with competitive and reasonable price.

u  2 year warranty and lifetime maintenance.

u  Fast delivery: usually within 3-10 work days since payment arrived.

u  Professional technical support; Best pre-sale, sale and after-sale service.

u  Welcome OEM & ODM, mixed order.

u  CE, FCC, RoHS passed.



Quality Control:

u  All raw materials are carefully selected and inspected.

u  Advanced production equipment is used and routinely inspected and serviced.

u  All operators and employees are thoroughly trained.

u  All products have passed the European Union RoHS standard and are CE, FCC certified.

u  Professional logistics personnel are employed to control the damage during the physical distribution of products


Company Information
Welcome to visit our company

Certifications:






FAQ

Questions about our Security Camera:

u  Q: How long is the warranty?

u  A: 2 -years-warranty since delivered out.

u  Q: What's the MOQ?

u  A: 1pc for sample, 20pcs for OEM order.

u  Q: How long is the delivery time?

u  A: Sample order 3-5 working days, bulk order 5-10 working days.

u  Q: How do make payment?
