Lower price 960P Waterproof CCTV AHD Camera Built-in IR-CUT
Features:
Waterproof IR cctv AHD camera
AHD 720 module, AHD signal, 960p AHD camera
2.8-12mm manual zoom lens
6-15, 9-22mm lens optional

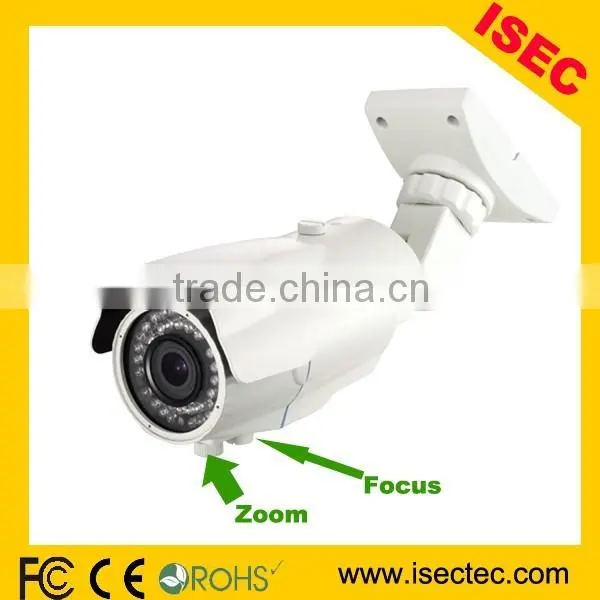

bottom screws for zoom/focus adjustment
42pcs Ø5mm IR LEDs
IR distance:40m
0 lux with IR on

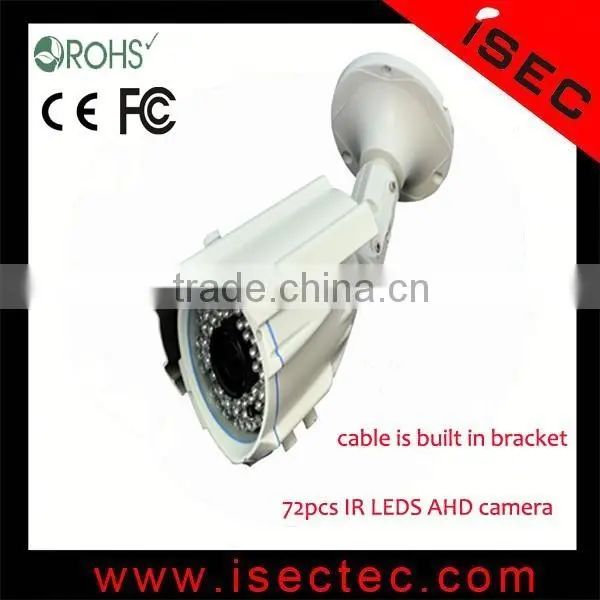

cable is built in bracket
waterproof:IP66
157(W) x93(H) x96(D)mm
1.3kg
Picture of AHD camera module:
Application of waterproof cctv AHD camera:
Functions:
Specifications:
Model NO. |
IC-LBMW40-IA7 |
IC-LBMW40-IA7B |
IC-LBMW40-IA7C |
IC-LBMW40-IA7D |
VIDEO | ||||
Image Device |
1/4" 1MP OV9712 CMOS |
1/3" 1.3MP IMX238 CMOS |
1/4" 1MP AR0141A CMOS |
1/3" 1.3MP AR0130 CMOS |
DSP |
NVP2431 |
|||
TV System |
PAL/NTSC |
|||
Effective Pixels |
1280(H)×720(V) , 1MP |
1280(H)*960(V) 1.3MP |
1280(H)×720(V) , 1MP |
1280(H)*960(V) 1.3MP |
Scanning System |
Progressive Scan |
|||
Synchronization |
Internal |
|||
Image Resolution |
1280*720(720P) |
1280*960(960P) |
1280*720(720P) |
1280*960(960P) |
Frame rate |
PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720) |
|||
Min. Illumination |
Color: 1.0lux F1.2; B/W: 0 Lux(IR ON) |
|||
S/N Ratio |
>50dB |
|||
Video Output |
AHD/CVBS (960H) |
|||
LENS | ||||
Focal Length |
2.8-12mm manual zoom lens |
|||
IR-CUT |
3MP IR filter cut |
|||
OPERATIONAL(OSD MENU) | ||||
Day & Night |
AUTO /COLOR /B/W /EXT |
|||
D-WDR |
OFF/ON/AUTO |
|||
Noise Reduction |
3DNR: OFF/Low / Middle / High |
|||
Back Light |
BLC/HSBLC/OFF |
|||
Auto Gain Control |
0~15 Adjustable |
|||
Defog |
OFF / AUTO |
|||
Motion Dectection |
ON(Motion area and sensitivity can be settled)/OFF |
|||
Sense Up |
OFF/AUTO(2X~30X Adjustable) |
|||
Pricacy Mask |
OFF/ON(8 Masks) |
|||
Electronic Shutter Speed |
2X~30X/AUTO/1/50 ~ 1/50,000sec |
|||
White Balance |
ATW/AWC→SET/INDOOR/OUTDOOR/MANUAL/AWB |
|||
Brightness |
0~100 Adjustable |
|||
Mirror |
OFF/MIRROR/V-FLIP/ROTATE |
|||
Sharpness |
OFF/AUTO(Level,Start AGC and End AGC can be settled) |
|||
OSD Language |
English, Chinese, Spanish, German, French, Russian, Portuguese, Italian, Polska, Nederland, Turkish |
|||
General | ||||
Infrared LED |
42pcs Ø5mm IR LEDs |
|||
IR Distance |
about 40 Meters |
|||
Infrared Spectrum |
850nm |
|||
Input Current |
400mA |
|||
Adapter Requirement |
DC 12V, 1A |
|||
Water-proof |
IP66 |
|||
MECHANICAL | ||||
Color |
White case |
|||
Bracket |
/ |
|||
Dimensions |
Ø119X83(H)mm |
|||
Net Weight |
0.85kg/pcs |
|||
ENVIRONMENTAL | ||||
Operation Temperature |
-10℃~ +50℃ |
|||
Storage Temperature |
-20℃~ +60℃ |
|||
