1MP IR Dome Digital Cmos AHD Camera With 3.6mm Lens

Name: 1MP IR Dome Digital Cmos AHD Camera With 3.6mm Lens
Brand: ISEC
SKU: 100462301
Availability: InStock

US$ 16.1 - 16.1 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ISEC

Model Number:

IC-LDW20-FA7

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ISEC

Model Number IC-LDW20-FA7

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, OV9712

Technology Infrared

Special Features Waterproof / Weatherproof

Product Description

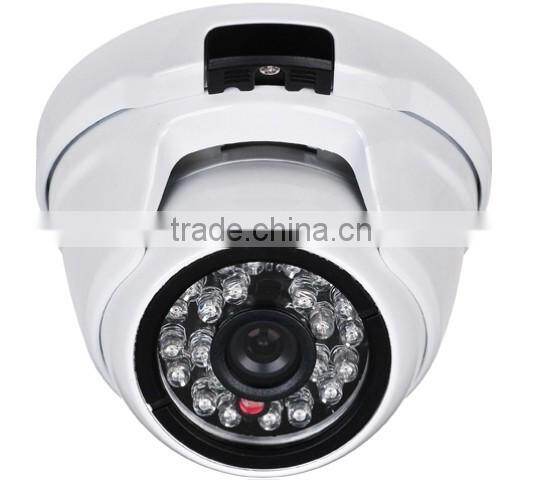

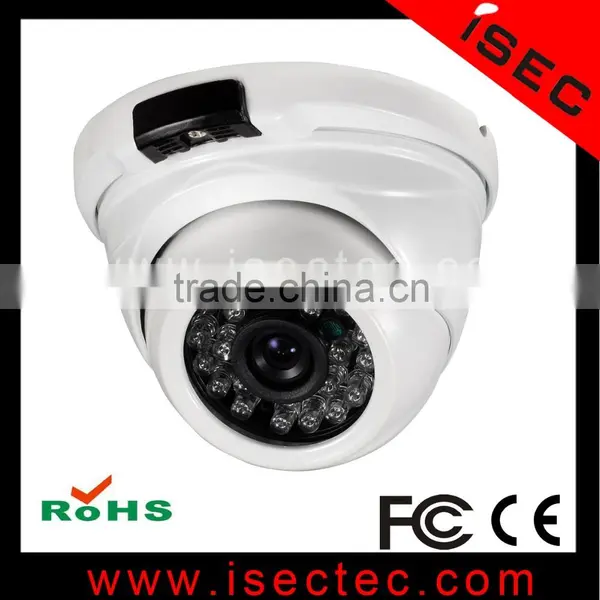

MP IR dome digital cmos AHD camera with 3.6mm lens

Main feature:

Waterproof IR Dome AHD camera

1, The CMOS & DSP are original OV9712+NVP2431H

2, 1MP 720P

3, OSD, controlled by cable

4, Fully weather, and dust proofed, to a rating of IP66 which make it ideal for outdoor use

5, Built-in infrared LED, may work under zero degree of illumination environment

6, 24(f 0.5) LED IR illuminators view up to 20m

7, 3.6mm lens, 2.8/6mm lens option

8, Waterproof IP66

9, Aluminum Alloy Housing.

10, DC12V Power supply

11, Easy to install

12,CE/FCC/RoSH approved.

Specifications:

Model	IC-LDW20-FA7
Image Sensor	1/4" 1MP CMOS Sensor

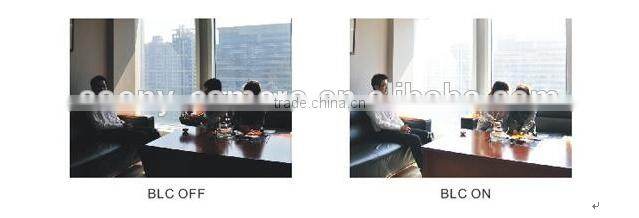

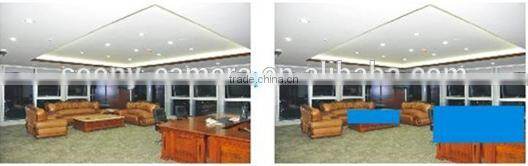

Horizontal Resolution	1MP 720P OSD, D-WDR, Sense-up, 3DNR, Defog, HLC/BLC, Privacy Zone Masking, Dynamic Motion Detection
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)
IR LED	24pcs Ø5mm IR LEDs
IR project distance	20 meters
Lens	standard: 3.6mm fixed lens
Lens	2.8/6mm lens option
Minimum Illumination	0 Lux/F2.0 (LED ON)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Scanning System	NTSC:525 Lines,60 Field/sec,
Scanning System	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characteristic	0.45
S/N Ratio	≥65dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGC)	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	Ø119X83(H)mm
Camera Case Color	default: white
weight	1kg
