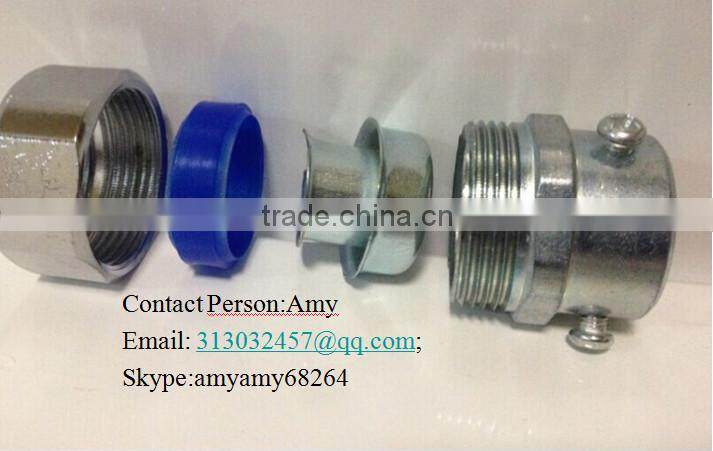

3 inch rigid galvanized zinc connector
Application:
DGJ self-fixed conduit joint connects tube and no-thread steel pipe.
Characteristics:
1 DGJ joint can connect no-screwed steel pipe with steel tube and connect steel pipe with hose and reduce the fixing crew process
2 Material: zinc alloy with zinc plated.
3.With single ferrule inside,compact structure
4.Compression,self-sleeve type parts
5.Material :zinc alloy with zinc plated.
6.Stainless steel ,aluminum alloy is also available .Chromic or nickel plated is according to your requirment.
7.One end is connected with flexible conduit ,the other end is with metal pipe.
8.Size is from 3/8" to 6"
Specification chart
| Metric System | BRITISH IMPERIAL SYSTEM | specification | Packing information | |||||||
| A | B | C | D | E | F | G | DKJ | DGJ | ||
| NFGY-DKJ-DGJ | 3/8" | 31.5 | 10.5 | 22 | 18 | M4*7 | 37 | 17.5 | 650 | 400 |
| NFGY-DKJ-DGJ | 1/2" | 35 | 13 | 26.5 | 22.5 | M4*7 | 43 | 21.5 | 450 | 350 |
| NFGY-DKJ-DGJ | 3/4" | 38 | 13 | 31.6 | 27.3 | M4*7 | 46 | 27 | 300 | 220 |
| NFGY-DKJ-DGJ | 1" | 40 | 13 | 39 | 34.2 | M4*7 | 49 | 33.6 | 200 | 150 |
| NFGY-DKJ-DGJ | 1-1/4" | 42 | 15 | 49 | 43 | M5*8 | 49 | 42.5 | 125 | 100 |
| NFGY-DKJ-DGJ | 1-1/2" | 46 | 15 | 55 | 49 | M5*8 | 54 | 48.2 | 100 | 90 |
| NFGY-DKJ-DGJ | 2" | 50 | 17 | 69 | 61.5 | M5*8 | 62 | 60.2 | 50 | 50 |
| NFGY-DKJ-DGJ | 2-1/2" | 64 | 22.5 | 84 | 76.5 | M6*10 | 73 | 76 | 30 | 30 |
| NFGY-DKJ-DGJ | 3" | 66 | 22.5 | 96 | 89 | M6*10 | 77 | 89 | 25 | 20 |
| NFGY-DKJ-DGJ | 4" | 75 | 25 | 125 | 116 | M6*10 | 86 | 115 | 14 | 12 |
| NFGY-DKJ-DGJ | 5" | 84 | 29 | 152 | 140 | M6*10 | 99 | 141 | 6 | 6 |
| NFGY-DKJ-DGJ | 6" | 85 | 30 | 174.5 | 168 | M6*10 | 111 | 166 | 4 | 4 |
Packing information:plastic bags+carton box or +wooden pallet
15days or depends on the PO's qty, your urgent PO priority.
All zinc alloy/ self- fixed conduit joint conduit or connector could be available, and your special requirment could be made either.
Your inquiry would be welcomed.
Nanfang could also develop the mould according your requirement and do produce the items according to the mould.
Business Type: manufacturer, trading company (Good quility, competative price)
Location: Zhejiang, China (Mainland)(near Shanghai, and Hangzhou)
Year established: 2004
Main customers: Mid East, Eastern Asia
Main market: Mid East, Western Europe, Africa, Eastern Europe, South America
Company certification:ISO 9001:2008; SGS;UL(listed)
Contract information:
Contact Person:Amy;
Skype:amyamy68264;
Phone:86 13738402328(always would be availabel, any comments would be appreciated)
QQ:313032457
Address:Tongjiashan Industical Center, Moushan Town, Yuyao City, Zhejiang Provinance, China.
