Specifications
Belt Cleaner*compact and efficient design
*easy to maintain
*improving belt tracking
Primary Belt Cleaner
1. Belt Cleaner
BASKA offers a wide range of primary, secondary and tertiary belt cleaners of different types, as well as very effective belt plows, pulley cleaners etc.
Designed to keep the conveyor belt, and pulleys and rollers as clean as possible,
thus prolonging service life, improving belt tracking, minimizing spillage, raising performance and improving safety and economy.
They are of quality, compact and efficient design and easy to maintain.
2. Roller & Idler
Product Description
Beijing Baska Guanhua Technology Co., Ltd is a manufacturer specialized in Heavy Duty Roller.Our high quality products had been supplied satisfactorily to industries such as
Mining, Cement, Pulp & Paper, Fertilizer & Power Plant, both for Domestic and Export markets. Our Products are designed to comply with universal standards : JIS, DIN and CEMA since 2000.
BASKA belt conveyor rollers are designed for smooth rotation, low noise, long service life and great operating economy.
Available in a wide range of types, sizes, designs and materials, they can be selected exactly to suit the speed, weight and width of the belt,
the properties of the load and the full range of environmental conditions expected.
BASKA idler sets are precision-engineered for smooth operation, long service life and great operating economy. Consisting of the base frame and/or brackets complete with the roller or rollers,
they are available in a wide range of designs for different placements, troughing angles and functional demands. BASKA idlers permit great flexibility in conveyor design and can be fitted easily to existing structures.
The types of our idler roller :
Carrying idler, return idler, impact idler, training idler, trough idler, transition idler, spiral idler, Frame Roller, taper shape idler, guide idler, front-tilt idler, idler(round pipe section).
Technical Parameter :

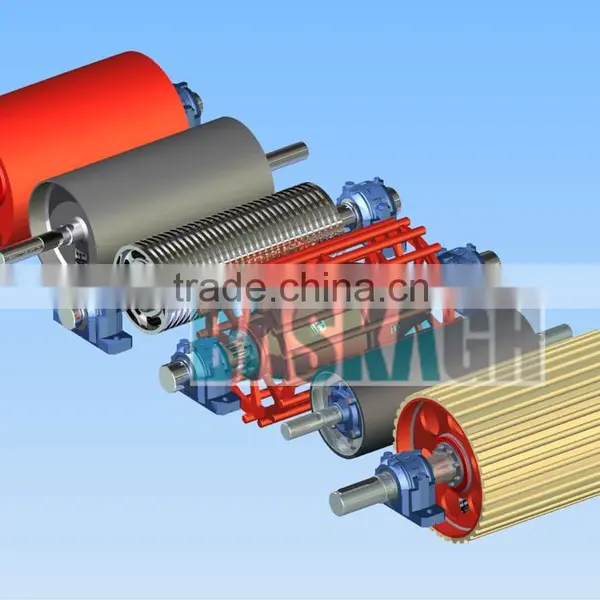

3. Pulley
Our pulley manufacturing process provides the customer with significant advantages:
♦ True concentric run out provides: maximum contact with the belt, consistent belt content discharge, less deflection of shaft and less stress on the bearings.
Thick pulley shell absorbs more stress. Large crown angle provides superior belt tracking capabilities.
♦ Pulley is divided into plain, lagging and cast lagging types.
Parameter for reference:
Processing technic:
Using the international standard designing and manufacturing technology, our company has improved the designing and production ability to a higher level. The idlers produced here enjoy minimum revolving resistance, long life, small maintain work and high load capability.
The company adopts special fine welding steel pipe for idler, and does puncture processing in the tube. The roundness is controlled in special tolerance scope. The axle is manufactured by fine cold drag steel according to standard tolerance. The bearing housing has been manufactured after stamping many times by the imported cold griped steel.
The idler shell and bearing housing have been welded together by the automatic welding machinery hand. Then it forms a whole high strength structure.
The bearing, which uses the world famous brand, is the big roving crack, deep groove ball and double sealing bearing. It makes the idler has the ideal static and dynamic balance that is better than the national standard.
The above technical conditions can guarantee the idler enjoy 50000 hours of working life.
4. Conveyor Belt:

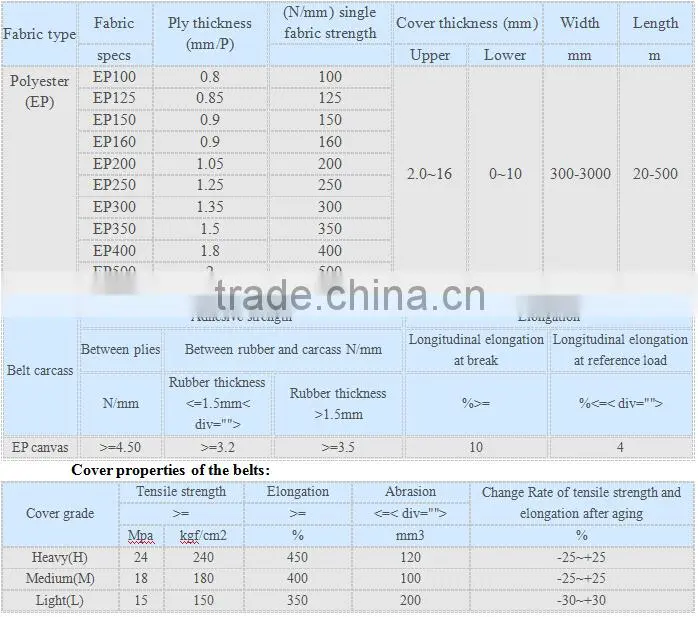

Specifications
cold weather conveyor belt
1.Plies:3-12ply
2:Width:300-2200mm
3.Thickness:4-50mm
4.Tensile Strength: 8-25Mp
Widely used high quality cold weather conveyor belt
1. Material : Nature Rubber , Polyester Canvas,Nylon ,Cotton
2. Usage : Transportation for Mining , architectural industry,port,etc
3. International standard as: DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
Features:
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical,
good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life,
it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance,
heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
Polyester conveyor belt:
Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and poly-amide in weft.
The belt has the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength,
suitable for medium, long distance and heavy-load transportation of materials.
Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.
5. Belt Conveyor
* About BASKAGH Belt Conveyor
The BASKAGH conveyors are for heavy duty operations whether in construction, long distance or short distance.
It is made to suit the need and specifications of a project. Utilizing the latest technology in Mining and Construction Technology,
the BASKAGH Conveyors are durable, reliable, efficient and quality tested to provide safe conveyance of different materials and items.
It now can design and produce belt conveyor which has max belt width of 2.2m, belt speed of 5.6m/s, belt strength of 6,300 N/mm
and conveying capacity of 5000 t/h. It is the result of our technical cooperation with scientific research institutes and
well-renowned universities in Beijing, Shanghai, Datong etc. It passed the certification of National Coal Mine Safety.
Our belt conveyors are widely accepted by national owned companies like Datong Coal Mine Group Co., Ltd.,
Shenhua Group Corporation Limited., Shanxi Coking Coal Group Co., Ltd., INNER MONGOLIA YITAI GROUP CO.,LTD.
China National Coal Group Corp. etc.
Some are exported to Kazakhstan and Kyrgyzstan.
For belt conveyor, we offer 3 types: DTL Fixed Belt Conveyor, DTC Large Angle Belt Conveyor, DST Extensible Belt Conveyor.
6. Brief Advantages of our factory
*16 years experience in mining machinery manufacturing
*Well equipped with complete facilities, more than 50 rich experienced engineers and
more than 2000 skilled employees
*Highly advanced digital processing equipment.
*All mining machinery we made are also performing in our self owned coal mine.
7. Our Factory
8. Product Process
9. Quality Certificates (ISO9001; ISO2004; MA)
10. We also supply
* Conveyor Components
* Scraper Conveyor
* Couplings
* Backstop
* Taper Lock Hub
* Coal Washing Equipment
Thank you for your reading.
And if you are interested in our products, please send us inquiries. We will reply you in time.
