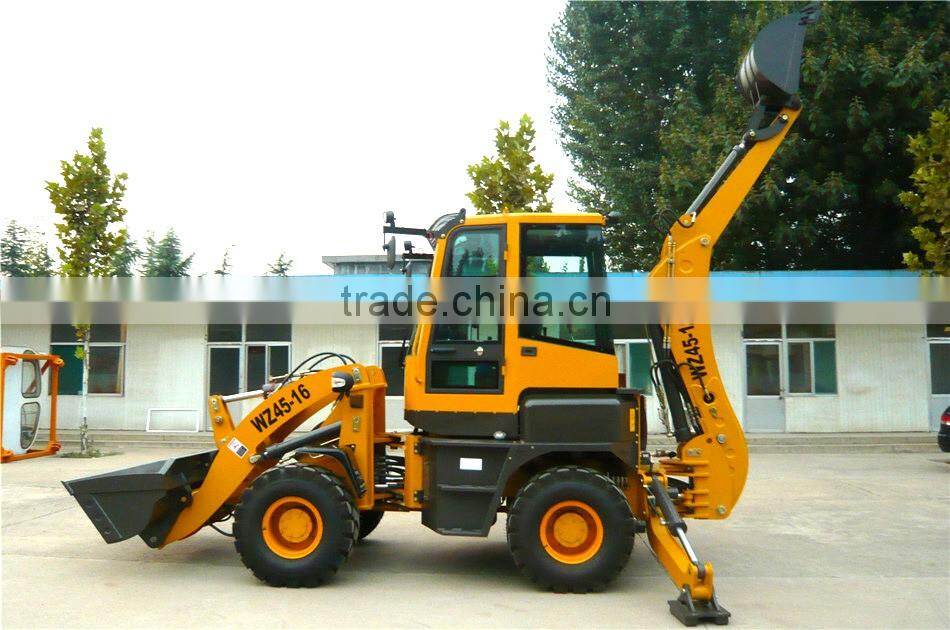

WZ45-16 Wheel Loader

WZ45-16 Wheel Loader thumbnail-1
WZ45-16 Wheel Loader thumbnail-2
WZ45-16 Wheel Loader thumbnail-3
WZ45-16 Wheel Loader thumbnail-4
WZ45-16 Wheel Loader thumbnail-5
WZ45-16 Wheel Loader thumbnail-6
WZ45-16 Wheel Loader photo-1

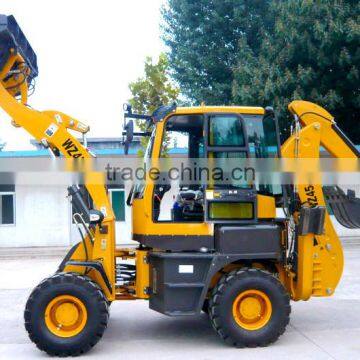

WZ45-16 Wheel Loader photo-2

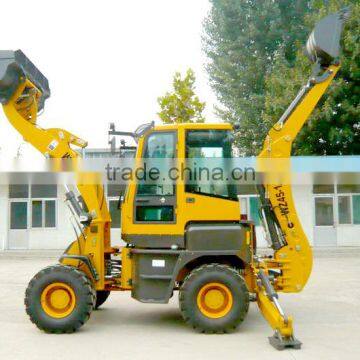

WZ45-16 Wheel Loader photo-3

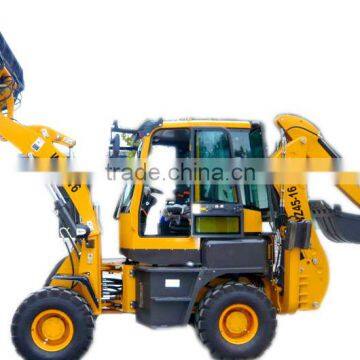

WZ45-16 Wheel Loader photo-4

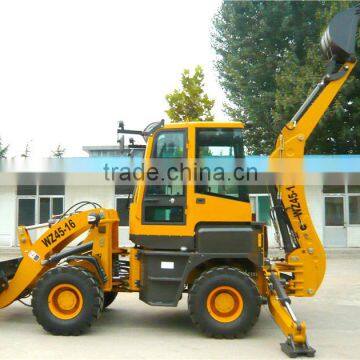

WZ45-16 Wheel Loader photo-5

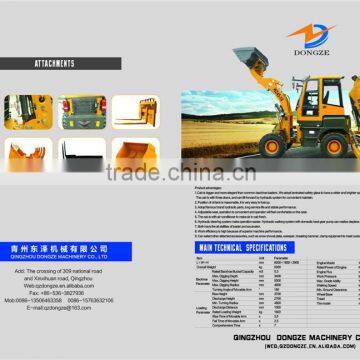

WZ45-16 Wheel Loader photo-6
US$ 16,500 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
DONGZE
Model Number:
WZ45-16 backhoe loader
Contact Supplier Request Quote Chat Now
Qingzhou Dongze Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name DONGZE
Model Number WZ45-16 backhoe loader
Place of Origin Shandong, China
Type Backhoe Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6000*1885*2900mm
Rated Load 1600kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Overseas service center available
Product Description

Product Application

For loading

                                              Item
                    Unit
          Parameter
Total Length
mm
5000
Total Height
mm
2900
Total Width
mm
1850
Total Operating Weight
kg
5000
                                                                                                                                              Backhoe Parameter
Rated Backhoe Bucket Capacity
m3
0.3
Max. Digging Depth
mm
3400
Max. Digging Height
mm
5000
Max. Digging Radius
mm
4600
Turning Angle of Movable Arm
°
180
                                                                                                                                                                                                                                                                                          Loading Parameter
Rise Height
mm
3700
Discharge Height
mm
2700
Min. Turning Radius
mm
4800
Discharge Distance
mm
1000
Rated Loading Weight
kg
1600
Rise Time of Movable Arm
s
3.5
Fall Time of Movable Arm
s
2.5
Comprehensive Time
s
7
Engine Model
Xinchai A498BT1
Rated Power of Engine
KW
36.8
Engine Flux
ml/r
40
Work Pressure
Mpa
16~18
Max. Grade Ability
%
25
Walking Speed
km/h
18~28
Min. Ground Clearance
mm
260
Wheel Base
mm
2000
Tread
mm
1530
Tire model
mm
20.5-16

Main Features

1. Cab is bigger and more elegant than common backhoe loaders. We adopt laminated safety glass to have a wider and brighter space and also to make view more wider. The cab is with three doors, and can tilt forward by hydraulic system for convenient maintain.

2. Position of oil tank is reasonable, it is very easy to fuel up.

3. Adopt famous brand hydraulic parts, long service life and stable performance.

4. Adjustable seat, operation is convenient and operator will feel comfortable on the seat.

5. The cab is with air conditioner to make air in cab fresh.

6. Hydraulic steering system make operation easier. Hydraulic walking system with domestic best gear pump can realize stepless speed change.

7. Both have the all abilities of loader and excavator.

8. Work efficiency is high because of superior machine performance.

9. Can select other attached accessories, such as snow shovel plate, sweeper, breaking hammer, clamp equipment to meet customer’s different requirements.



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

Packing & Delivery
Packaging
Size
6000*1885*2900mm
Weight
5300kg



Packaging Details
Packing in containers
