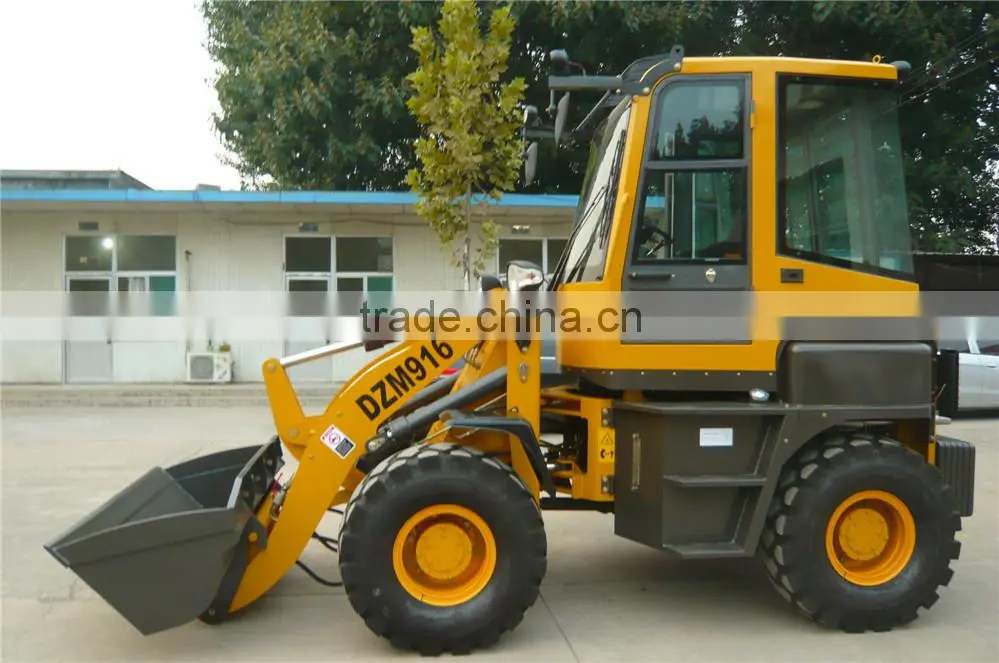

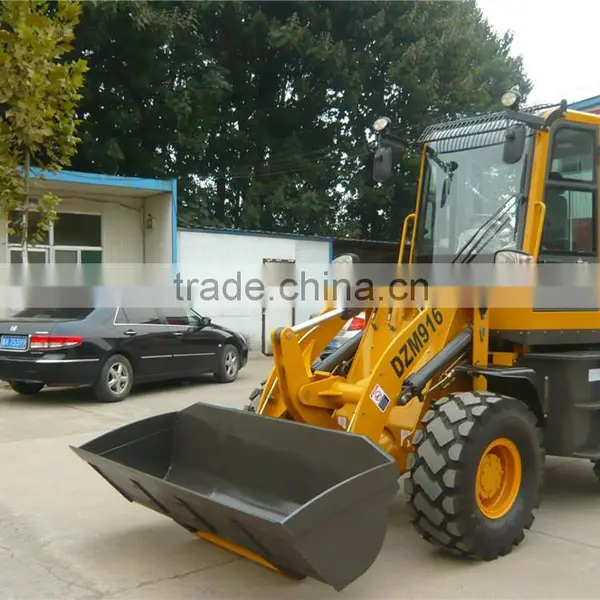

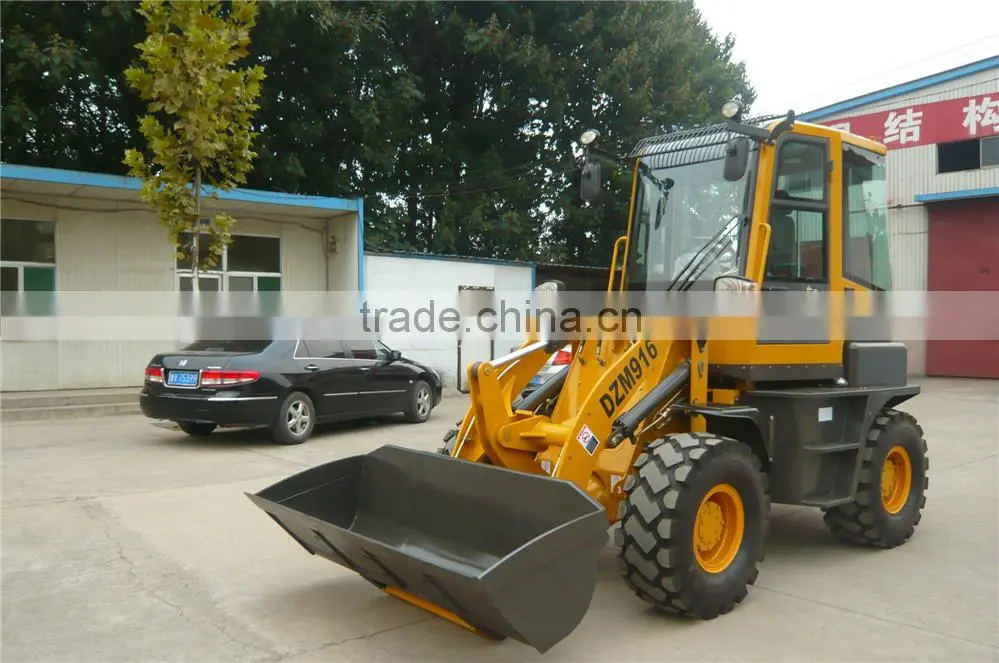

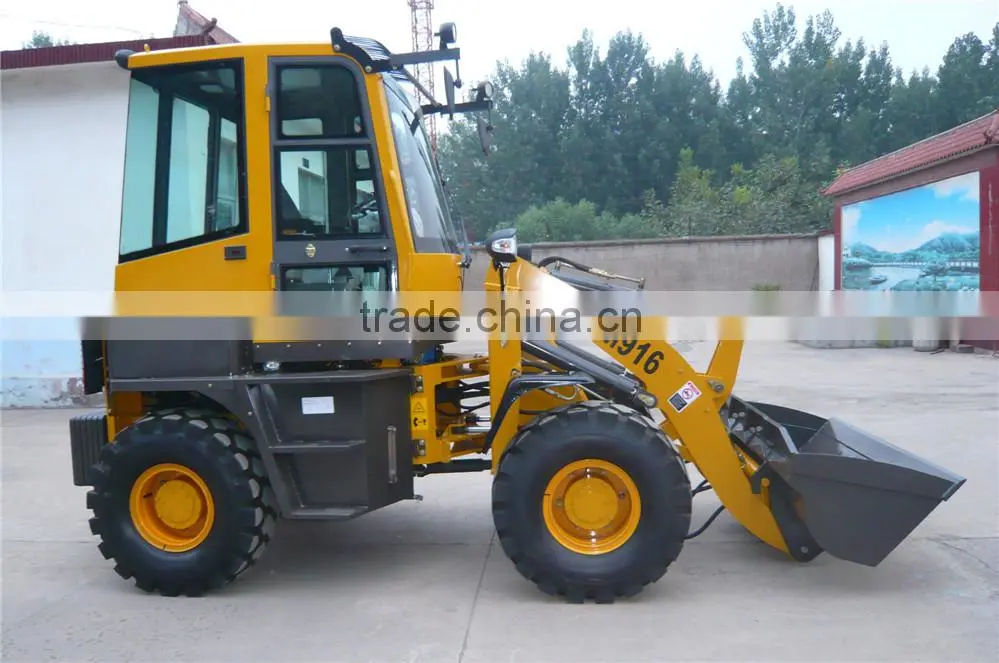

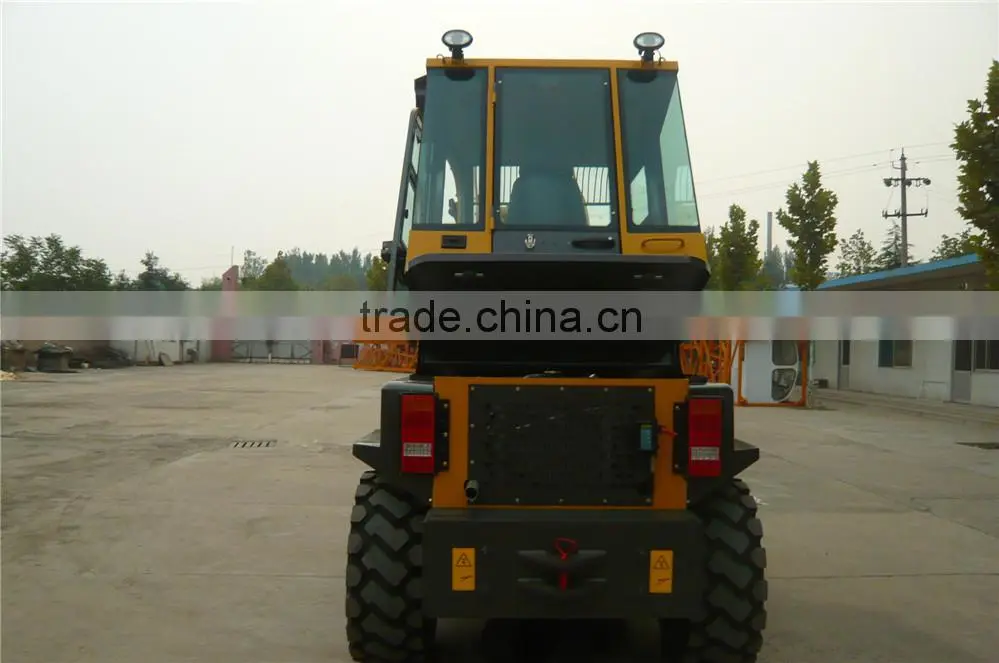

DZW916 Wheel Loader With Price
US$ 15,800 - 15,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
DONGZE
Model Number:
DZW916 wheel loader
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
DONGZE
Model Number
DZW916 wheel loader
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
4500mmX1850mmX2790mm
Rated Load
1600kg
Certification
ISO9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

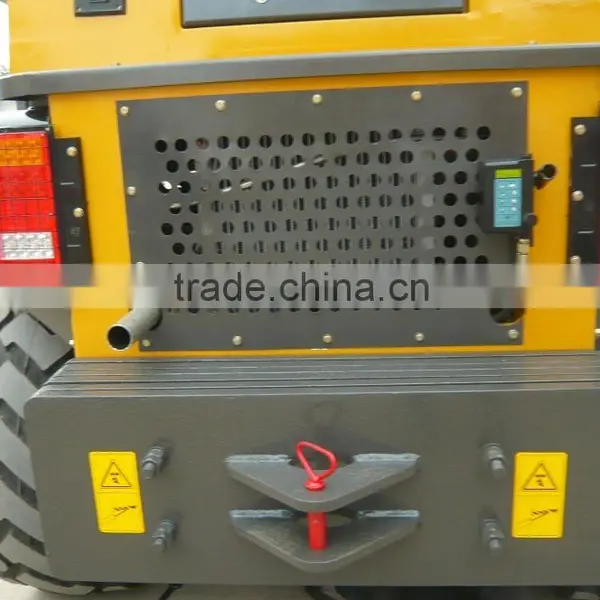

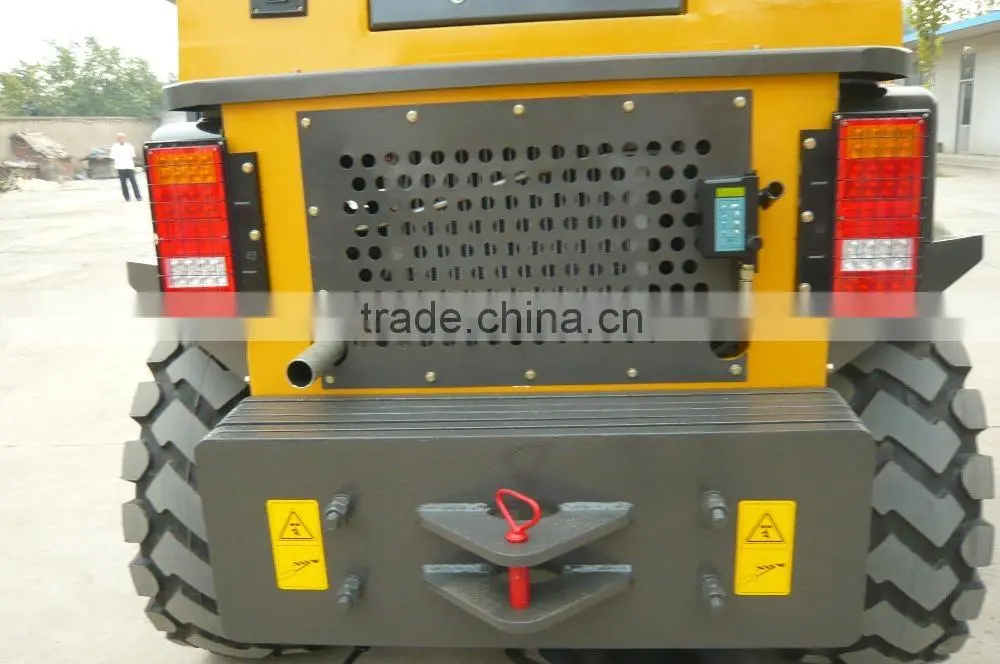

I. Weight type balance weight:
- 1. Add or remove balance weight blocks according to the requirement of customer.
- 2. Recycling utilization.

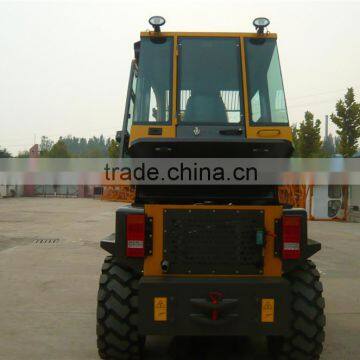

II. Cab:
- 1. The cab can tilt forward for convenient maintain.
- 2. Cab is bigger, operator can make the seat flat to have a rest, three-door design makes room ventilation better.
- 3. Front window with a very good upper view angle for operator, there is no blind angle when lifting arm up.
III. Without rear machine cover.
- 1. Car body is short.
- 2. It is safe, flexible and reliable when car is back.
IV. Front quick-change straight axis integrative structure
- 1. Breakout force is large.

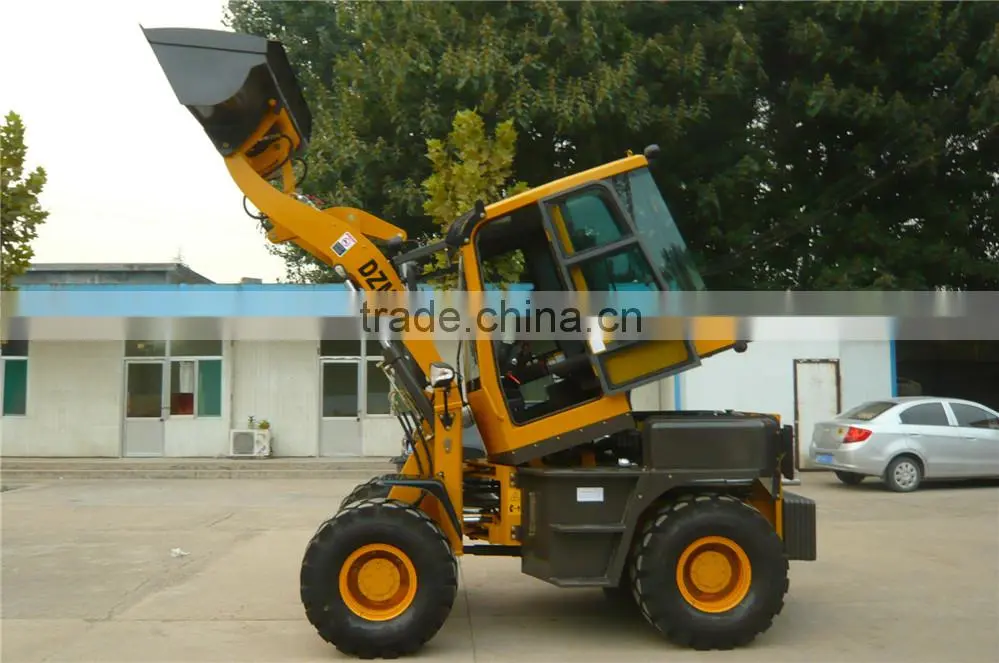

- 2. Dumping height is high.
- 3. Structure is simple, operation is easy.
Item |
Unit |
Parameter |
|
LXWXH |
mm |
4500X1850X2790 |
|
Overall weight |
kg |
3700 |
|
Loading Parameter |
Rise Height |
mm |
3700 |
Discharge Height |
mm |
2700 |
|
Min. Turning Radius |
mm |
4800 |
|
Discharge Distance |
mm |
1000 |
|
Rated Loading Weight |
kg |
1600 |
|
Rise Time of Movable Arm |
s |
3.5 |
|
Fall Time of Movable Arm |
s |
2.5 |
|
Comprehensive Time |
s |
7 |
|
Engine Model |
Xinchai A498BT1 |
||
Rated Power of Engine |
KW |
36.8 |
|
Engine Flux |
ml/r |
40 |
|
Work Pressure |
Mpa |
16~18 |
|
Max. Grade Ability |
% |
25 |
|
Walking Speed |
km/h |
18~28 |
|
Min. Ground Clearance |
mm |
260 |
|
Wheel Base |
mm |
2000 |
|
Tread |
mm |
1530 |
|
Tire model |
mm |
20.5-16 |
|
