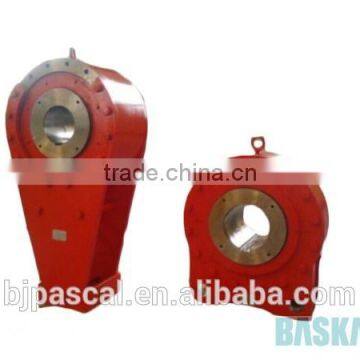

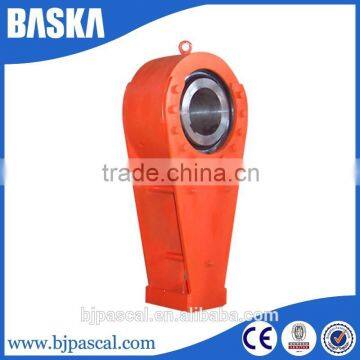

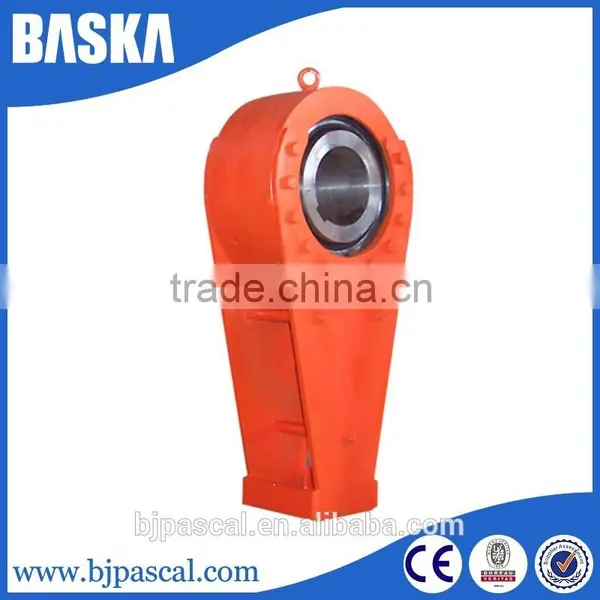

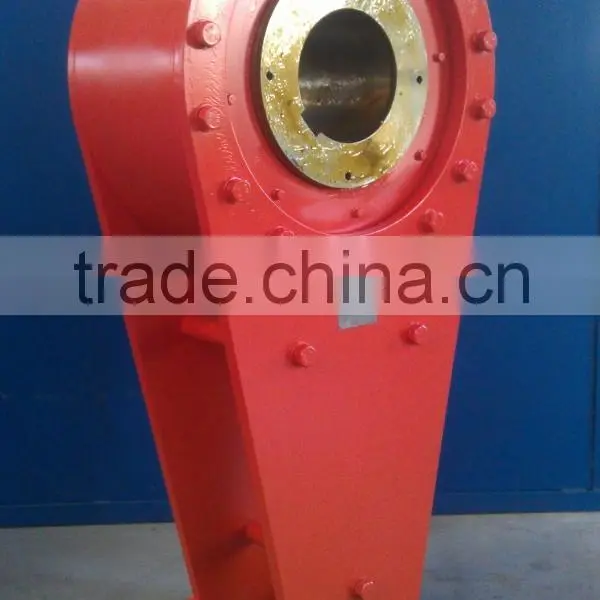

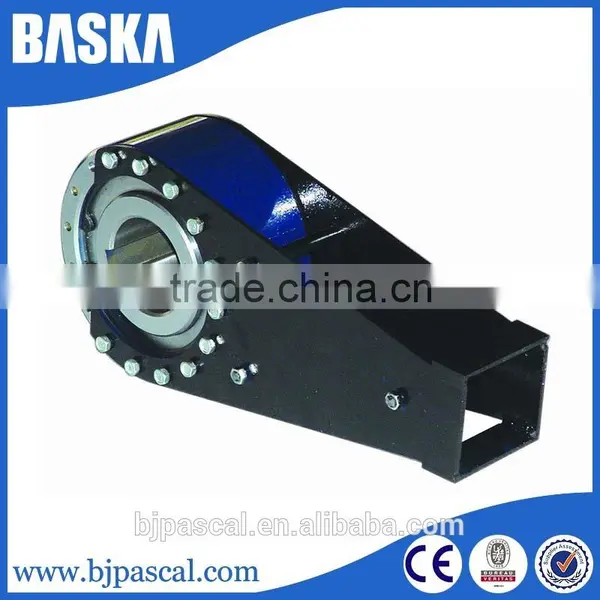

Wholesale Mining Belt Conveyor Backstop
1. Features of NJ(NYD) Belt Conveyor Backstop
NJ(NYD) backstop, applied to low speed shaft, is an anti-reversal contact-type device. Compared to other backstops, with supplying the same reverse torque, NJ(NYD) type backstop has the following features:
l Low weight
l Compact structure
l High anti-reverse reliability
l Quick release
l Low requirement for installation accuracy
2. Application of NJ(NYD) Belt Conveyor Backstop
NJ(NYD) backstops are extensively used in inclined belt conveyor, bucket elevators, scraper conveyor, and other equipments who have anti-reversal requirement. It will effectively prevent reverse rotation or glide in case of heavy load or sudden stoppage of the equipment due to any reason, thereby avoiding the accident because of the material being transported fall-off the machine.

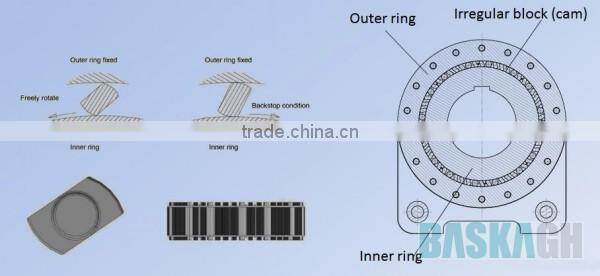

3. Working principle:
Several irregular blocks are arranged regularly between outer ring and inner ring. When the inner ring is rotating in the working direction, the irregular blocks contact with the outer ring and inner ring gently. When the inner ring rotates in the counter-working direction, irregular blocks will be deflect driven by spring force and wedge outer ring and inner ring closer together to afford backstop torque.

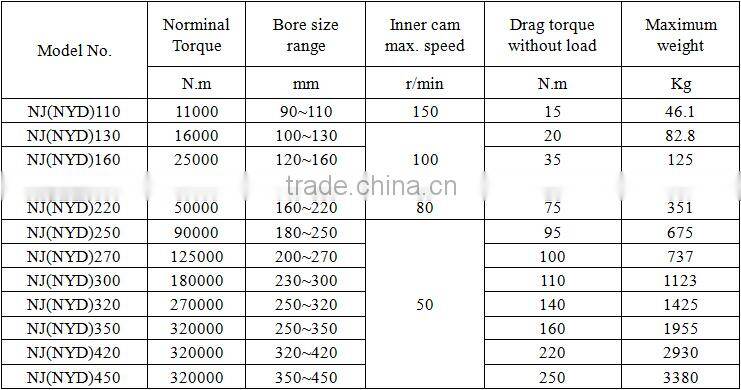

4. Models of NJ(NYD) belt conveyor backstop and parameters

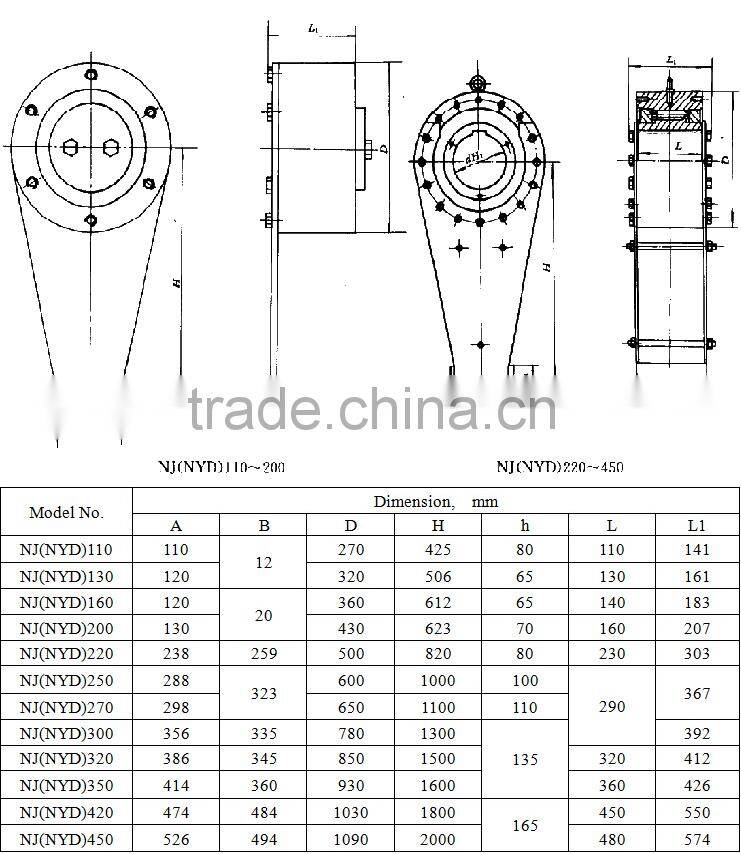

5. Installation size

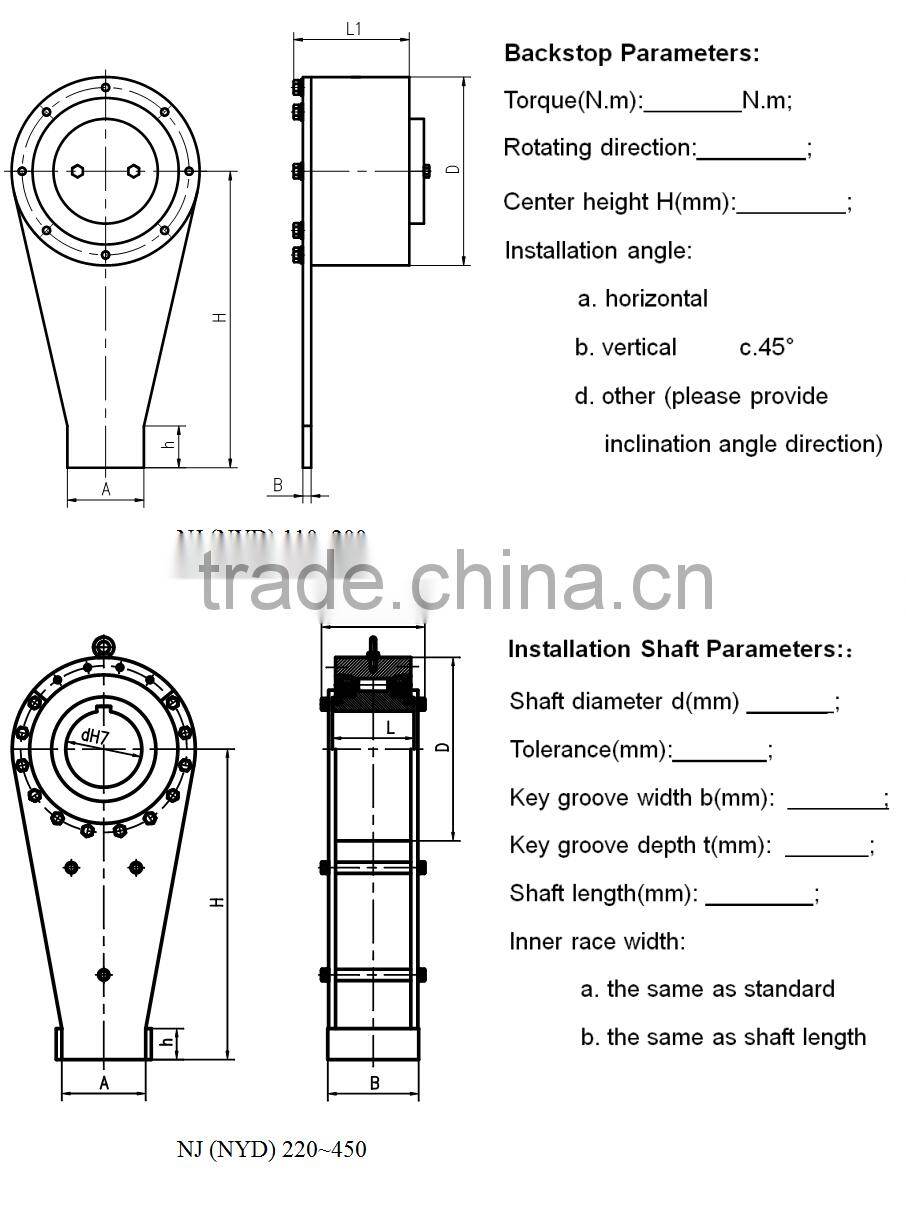

6. Customize your product
Item |
Content |
Package |
Standard export wooden package with fumigation or client required package. |
Delivery |
About 20 to 45 days after receiving down payment. The accurate time is determined by the model of product. |
Payment term |
T/T |
Customer service |
The time of warranty is one year. During the time of warranty, if the products damage, we would give response during 48 hours and send technician to handle. |
Beijing Baska Guanhua Technology Co., Ltd was established in Beijing on 28th March, 2013. It is a wholly-owned subsidiary of Tonghua Mining Machinery Co., Ltd-a professional mining machinery supplier in China. Tonghua was founded in 1998 and is located in Datong, Shanxi province, which is a professional manufacturer engaged in the research, development, production, sale and service of belt conveyor, scraper conveyor, couplings, NJ(NYD) backstop, DSN backstop for belt conveyor and coal washing equipment, etc. It occupies an area of 161,334m2 and has more than 2,200 employees.

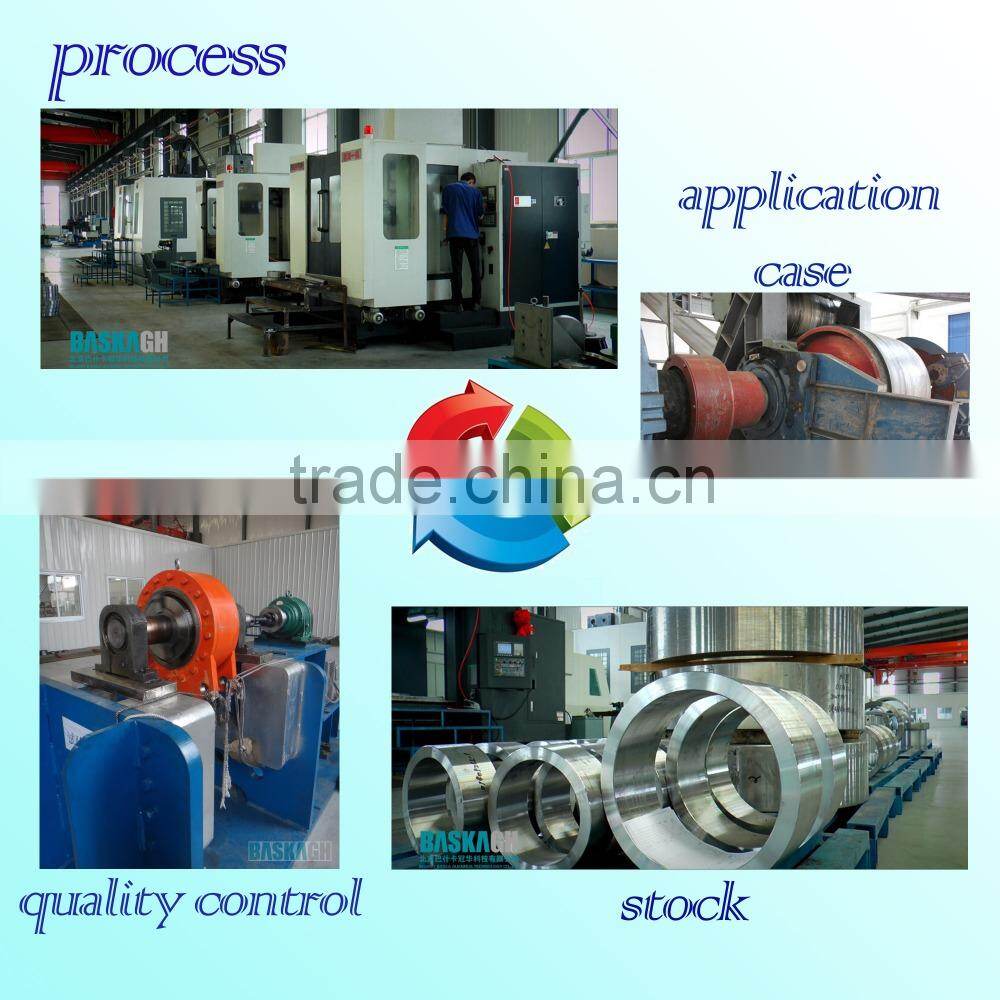

We have excellent teams who focus on product design & development, quality control & inspection and company running. We also have a large-scale production capacity. Every year we normally produce about 600 sets of belt conveyors, 100 sets of scraper conveyors and 90 sets of coal washing equipment, etc. In 2006, Tonghua gained both ISO 9001 International Quality Certificate and ISO 14001 International Environmental Certificate and had established a comprehensive modern enterprise management mode. For a dozen years we have consistently followed the fundamental principles of survival starts from quality, benefits derive from management and development comes from trust.
