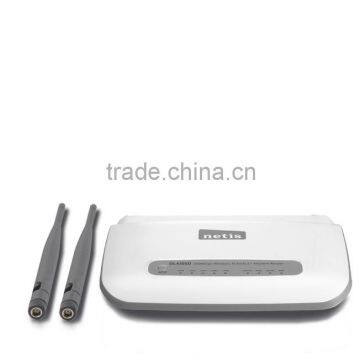

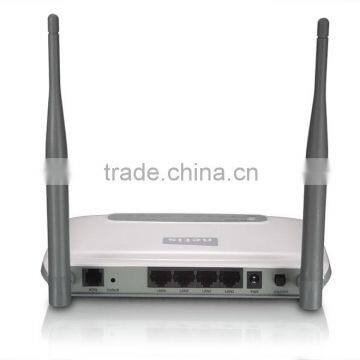

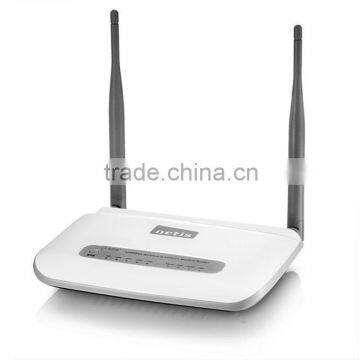

Home > Computer Products > Network Hardware & Parts > Router > Netis 300Mbps Wireless N ADSL2+ Modem Router, Detachable Antennas
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Enterprise
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Netis 300Mbps Wireless N ADSL2+ Modem RouterNegotiableMOQ: 1000 Pieces -
Netis 300Mbps Wireless N ADSL2+ Modem RouterNegotiableMOQ: 1000 Pieces
-
Netis 150Mbps Wireless N ADSL2+ Modem Router, Detachable AntennaNegotiableMOQ: 1000 Sets
-
Netis 150Mbps Wireless N ADSL2+ Modem RouterNegotiableMOQ: 1000 Pieces
-
Netis 300Mbps Wireless N ADSL2+ Modem Router, Detachable AntennasNegotiableMOQ: 1000 Sets
Products Status
Stock
Type
Wireless
Application
Enterprise
Function
QoS, VPN, Other, QoS, VPN, a high speed ADSL modem, a 4-Port 10/100Mbps NAT router
LAN Ports
4
WAN Ports
1
Certification
CE FCC
Brand Name
netis
Model Number
DL4305D
Place of Origin
Guangdong, China
What it does
The netis DL4305D is an All-in-One device that combines the functions of a high speed ADSL modem, a 4-Port 10/100Mbps NAT router and a wireless access point. It is designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the DL4305D brings with it much higher speed than dial-up connections. Complying with the IEEE 802.11n standard, users will get up to 15X the speed and 5X the range of conventional 11g products. It also provides some practical functions, such as SNMP, TR-069 and more. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming.
Features
- Wireless N speed up to 300Mbps
- 3 in 1: ADSL 2/2+ Modem, Wireless N Access Point and 4-Port Router, in a single device
- Easy wireless security encryption with single WPS button
- 2*5dBi external antennas provide extended range for better signal coverage and reception.
Specification
| Hardware | |
| Interface | 4 * 10/100M Auto MDI/MDIX RJ45 1 * RJ11 |
| LED | PWR LAN1-LAN4 Internet ADSL WLAN WPS |
| Power Supply | DC 5V/2A(Output) |
| Button | WPS Power |
| Dimensions (L x W x H ) | 183*125.2*30.72 mm |
| Software | |
| Standards | IEEE 802.3,IEEE 802.3u |
| Data Rate | Downstream: Up to 24Mbps Upstream: Up to 1Mbps |
| ADSL Feature | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.992.3 ITU-T G .992.5 ITU-T K.2.1 |
| ATM / PPP Protocol | ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225) |
| Main Feature | DHCP, DHCP relay NAT, Static Routing VPN (PPTP, L2TP, IPSec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP snooping V1/V2 Virtual server, DMZ, ACL (Access Control List) UPnP |
| Management | Web Based Configuration (HTTP), Remote management, Telnet management, command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools |
| Wireless Standards | IEEE802.11g, 802.11b,802.11n |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Speed | Up to 300Mbps |
| Wireless Security | Provides 64/128-bit WEP encryption security and wireless LAN ACL(Access Control List),WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security |
| Wireless Security Power | 20dBm |
| Antenna Type | 2*5dBi detachable |
| Others | |
| Certification | CE FCC |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Package | 1 * DL4305D 1 * Quick Installation Guide 1 * Power Adapter 1 * Ethernet Cable 2 * RJ11 Cable 1 * Splitter |
