Home > Computer Products > Network Hardware & Parts > Router > Fast Wireless ADSL Modem Router With IPTV Function

Fast Wireless ADSL Modem Router With IPTV Function

Name: Fast Wireless ADSL Modem Router With IPTV Function
Brand: netis
SKU: 100454535
Availability: InStock

Fast Wireless ADSL Modem Router With IPTV Function thumbnail-1

Fast Wireless ADSL Modem Router With IPTV Function photo-1

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Products Status:

Stock

Type:

Wireless

Application:

Enterprise

Contact Supplier Request Quote Chat Now

Shenzhen Netcore Industrial Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Type Wireless

Application Enterprise

Function Other, ADSL2+ Modem Router

LAN Ports 4

WAN Ports Other, 1 * RJ11 ADSL Port

Certification CE, FCC

Brand Name netis

Model Number DL4311

Place of Origin Guangdong, China

Fast Wireless ADSL Modem Router with IPTV Function

Product Description

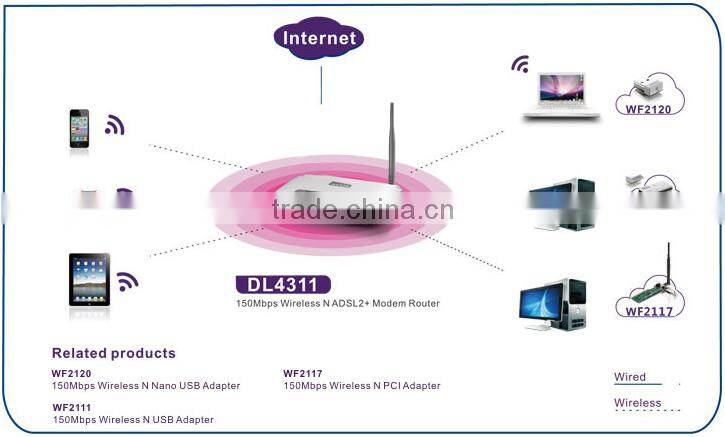

The netis DL4311 is a 3-in-1 device that combines the functions of a high speed ADSL2+ modem, 4-port NAT router and wireless N access point. It is designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the DL4311 brings with it much higher speed than dial-up connections. It also provides some practical functions, such as Port Mapping for IPTV, Ethernet WAN, SNMP, IPv6, TR-069 and more. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming.

Features

High speed ADSL2+ modem, 4-port NAT router and wireless N access point in one device
ADSL2/2+ standards ensuring high-speed Internet access up to 24Mbps downstream
Excellent wireless N speed up to 150Mbps
Port mapping function ensuring wonderful IPTV experience
Ethernet WAN offers additional connectivity option for Cable or Fiber modem
Built-in firewall to safeguard home network from potential Internet attacks
IPv6 supported for improved network usability and experience
4KV super lightning protection to avoid device damage caused by tough thunderstorms
Easy setup wizard providing quick and hassle free installation

Specification

Fast Wireless ADSL Modem Router with IPTV Function
Hardware
Ethernet Standards	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Interface	1 * RJ11 ADSL Port, 4* 10/100Mbps Auto MDI/MDIX RJ45 LAN Port (Optional Ethernet WAN for LAN4)
LED	PWR, Internet, ADSL, LAN4, LAN3, LAN2, LAN1, WPS, WLAN
Power Supply	DC 12V/500mA(Output)
Button	WPS, Default, Power ON/OFF
Dimensions (L x W x H )	183125.230.72 mm

Software
ADSL Version	ADSL, ADSL2, ADSL2+
Data Rate	Downstream: Up to 24Mbps Upstream: Up to 1Mbps
ATM / PPP Protocol	ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and Routed Ethernet Encapsulation VC and LLC Based Multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225)
Main Feature	ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225)
Main Feature	DHCP, DHCP Relay NAT, Static Routing VPN (PPTP, L2TP, IPsec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP Snooping V1/V2 Virtual Server, DMZ, ACL (Access Control List) UPnP IPv6
Management	Web Based Configuration (HTTP), Remote Management, Telnet Management, Command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools
Wireless Standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Range	2.4-2.4835GHz
Wireless Speed	Up to 150Mbps
Wireless Security	WEP 64/128bits, WPA(TKIP/AES)/WPA2(TKIP/AES)/WPA2 Mixed, 802.1x Authentication Wireless MAC Filtering
Wireless Security Power	20dBm
Antenna Type	1* 5dBi Fixed Antenna

Others
Certification	CE, FCC
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
Package	1 * DL4311 1 * 12V/500mA Power Adapter 2 * RJ11 Telephone Cable 1 * RJ45 Ethernet Cable 1 * ADSL Splitter 1 * Quick Installation Guide (Multilingual)
