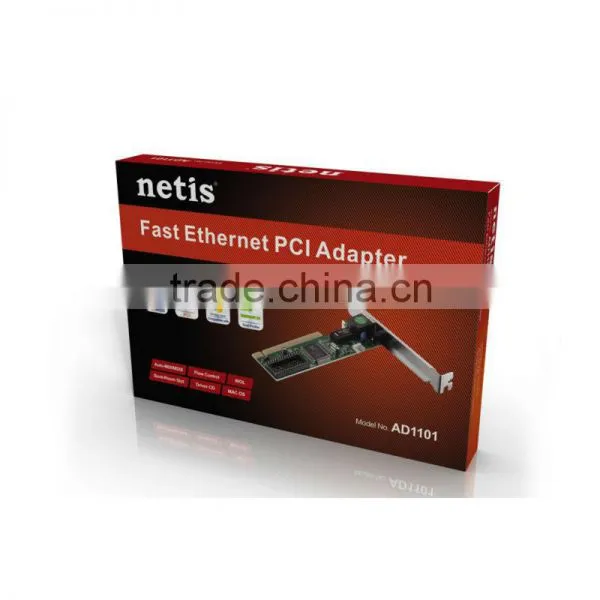

Netis Fast Ethernet PCI Adapter
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Laptop
Type:
Wireless
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Netis Gigabit Ethernet PCI-E AdapterNegotiableMOQ: 1000 Pieces -
Netis Gigabit Ethernet PCI AdapterNegotiableMOQ: 1000 Pieces
-
Netis EPON ONU for FTTC, FTTB, FTTHNegotiableMOQ: 1000 Sets
-
Netis ONU Optical Line Terminal With 8 EPON PortsNegotiableMOQ: 100 Pieces
-
Indoor GPON OLT With 1 GPON Port and 1 RJ45 PortNegotiableMOQ: 1000 Pieces
Products Status
Stock
Application
Laptop
Type
Wireless
Kind
Internal
Transmission Rate
10/100Mbps
Interface Type
PCI
Certification
FCC, CE
Brand Name
netis
Model Number
AD1101
Place of Origin
Guangdong, China
What it does
The netis AD1101 Fast Ethernet PCI Adapter is a highly integrated and cost-effective Adapter that supports 32-bit data transfer and reduces CPU loading using bus master architecture. It also provides WOL and Boot-ROM. The netis Fast Ethernet PCI Adapter keeps low cost and eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. It supports both 10Mbps and 100Mbps network speed both in Half-Duplex and Full-Duplex transfer modes, using Auto-Negotiation technology to detect the network speed. It also can be widely used in most modern Operating System.
Features
- Support 32-bit PCI interface
- Comply with the IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX specifications
- Support Full-Duplex, achieve up to 20M/200M network bandwidth
- Plug and Play
- Support Windows XP (32/64bits), Window 2000 (32/64bits), Windows 7 (32/64bits); Linux; Mac OS
Specification
| Hardware | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |
| Interface | 32-bit PCI 1 * 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | LNT/ACT |
| Cabling Type | UTP CAT 5 EIA/TIA-568 100-ohm screened twisted pair (STP) |
| Data Transmission Rate |
10/100Mbps(Half-duplex) 20/200Mbps(Full-duplex) |
| WOL | Supported |
| BOOT-ROM | Supported |
| Network Driver | Windows 98SE, Windows ME, Windows 2000, Windows XP (32/64bits), Windows Vista (32/64bits), Windows 7 (32/64bits) MAC OS 9.0/10.04/10.1/10.2 |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Package |
1 * AD1101 |
