Electrical Tools/cnc Machine Price Machine Spare Part

Name: Electrical Tools/cnc Machine Price Machine Spare Part
Brand: HaiNa
SKU: 100449895
Availability: InStock

Taian Haina Spindle Science & Technology Co., Ltd.

US$ 8,400 - 8,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Longgitudinal cutting

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Longgitudinal cutting

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 20mm

Place of Origin Cocos (Keeling) Islands

Brand Name HaiNa

Model Number NC0620

Voltage Three phase AC 380V

Power(W) 3 KW

Dimension(L*W*H) 1500*600*1200mm

Weight 1000kg

Certification IS0:9001

After-sales Service Provided Overseas third-party support available

Specifications

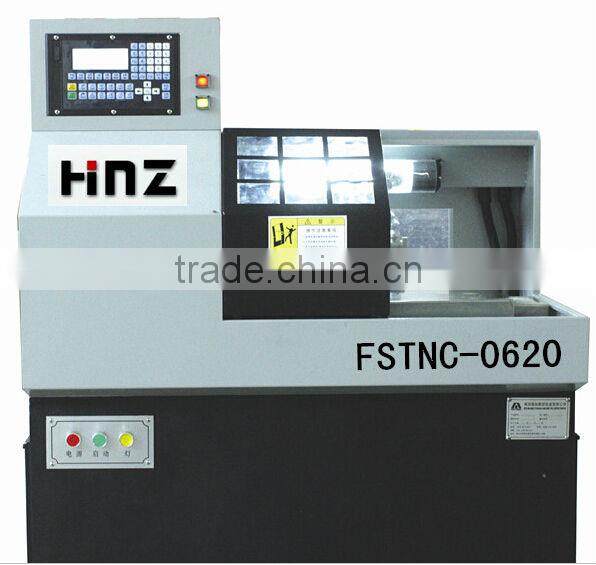

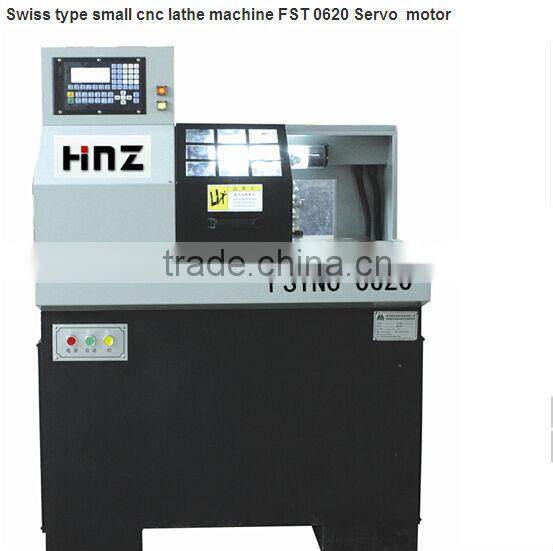

NC0620Servo CNC lathes/cnc machine price list
Application:aerospace,communications,refrigeration,home
appliances

1 NC 0620 Servo CNC lathes low cost ,dual rail structure 22mm/min
2 imported serov control motor
3 TaianSYNTEC control system

Technical Parameters / Configuration

Item	Specification	Parameter
1	Controlled and linkage axis numbers	2 axes (X, Z axis)
2	Maximum length of processing parts	120mm
3	Minimum setting unit	0. 001mm
4	Smallest movement unit (pulse equivalent)	X axis:0.0005mm Z axis:0. 001mm
5	Max Programming size	+9999.999 mm
6	Cutting speed	1~ 4000 mm/min
7	Tool changer placing mode	Row
8	Holders specifications	12
9	controlable tool holder number	8 (within the allowable range )
10	Rated Voltage	Three phase AC 380V
11	Rated Frequency	50 Hz
12	Maximum input power	3 KW
13	X axis Maximum travel	110 mm (Volume diameter 220mm )
14	Z axis Maximum travel	190mm
15	Maximum diameter of processing the bar	20mm
16	Servo motor (maximum no load speed)	10000 mm/min(X,Z axis)
17	Spindle motor power	2.2KW
18	Spindle speed range	50~4000(RPM)
19	Input compressed air pressure	0.4~0.6MPa
20	Control System	Taiwan SYNTEC
21	Motor	Panasonic servo motor(0.4KW)
22	Screw	X axis1404×294mm, Z axis 1604×360mm
23	Guide rail	Taiwan HIWIN Linear Guides
23	Inverter	INVT
24	Encoder	REP
25	Machine Net Weight(kg)	About 1000
