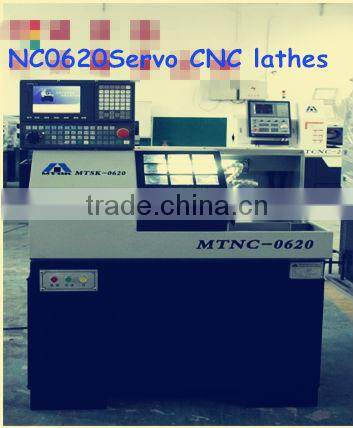

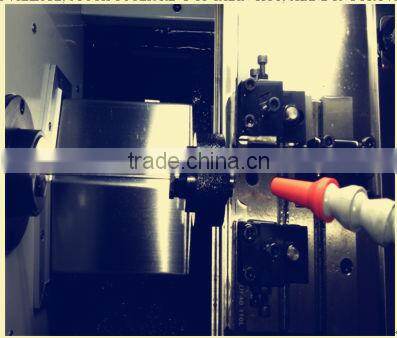

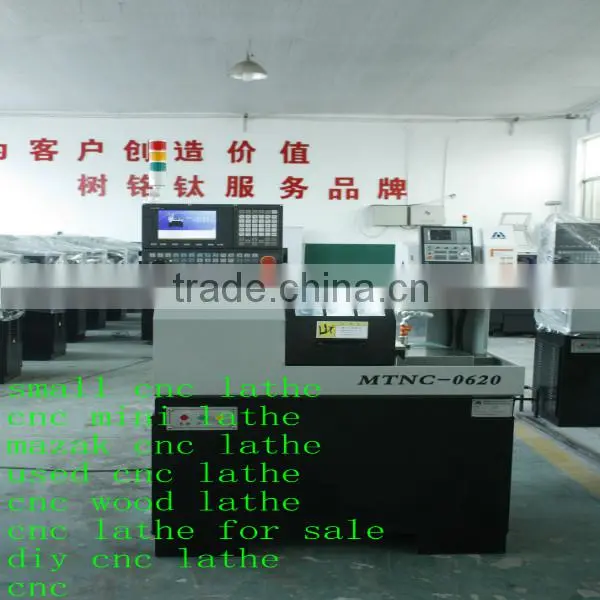

Normal CNC or Not and Turning Cente Type Lathes/ Heavy Duty Double Column Vertical Cnc Lathe Machine Quality Choice

Item

Specification

Parameter

1

Controlled and linkage axis numbers

2 axes (X, Z axis)

2

Maximum length of processing parts

120mm

3

      Minimum setting unit

0. 001mm

4

Smallest movement unit (pulse equivalent)

X axis:0.0005mm Z axis:0. 001mm

5

Max Programming size

+9999.999 mm

6

Cutting speed

1~ 4000 mm/min

7

Tool changer placing mode

Row

8

Holders specifications

12

9

Controlable tool number

8

10

Rated Voltage

Three phase AC 380V

11

Rated Frequency

50 Hz

12

Maximum input power

3 KW

13

X axis Maximum travel

110 mm (Volume diameter 220mm )

14

Z axis Maximum travel

190mm

15

Maximum diameter of processing the bar

20mm

16

Servo motor (maximum no load speed)

10000 mm/min(X,Z axis)

17

Spindle motor power

2.2KW

18

Spindle speed range

50~4000(RPM)

19

Input compressed air pressure

0.4~0.6MPa

20

Control System

       Taiwan SYNTEC

21

Motor

Panasonic servo motor(0.4KW)

22

Screw

X axis1404×294mm, Z axis 1604×360mm

23

Guide rail

Taiwan HIWIN Linear Guides

23

Inverter

INVT

24

Encoder

REP
