Help CenterBurgers Packing Machine
Related Products
Specifications
Burgers Packing Machine1.It can be move around.
2.The mobile packaging system is firstly produced in the China market.

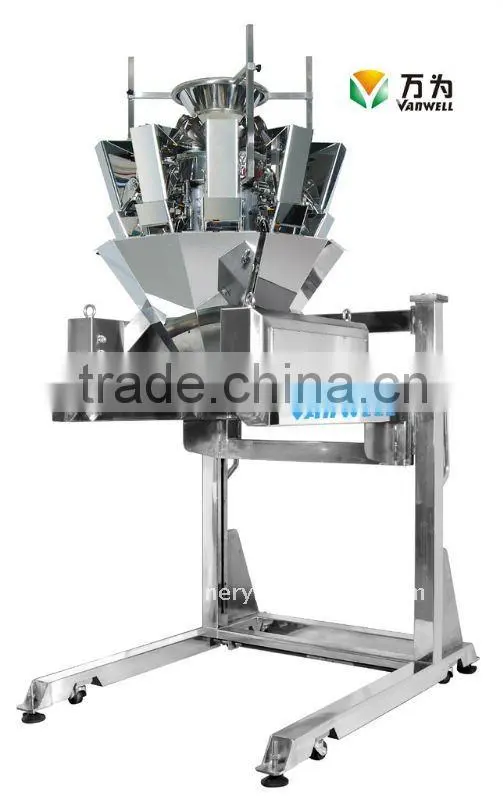

* VANWELL mobile packaging unit is firstly produced in the China market. The multihead weigher is loaded on the support frame, which is equipped with wheels and a lifting/lowering device allowing you to adjust the height and positioning to different package applications.
* Key benefits for you:
1.Extremely space saving.
2.Fast changeover between production shifts
3.Flexibility and versatility in the packaging run.
4.Easy and efficient cleaning and maintenance
5.Maximum utilization of the equipment
6.Four wheels in the bottom enable the whole system to move around easily,
7.Lift up-and-down through screw,so its more durable and stable
8.The whole system is noiseless

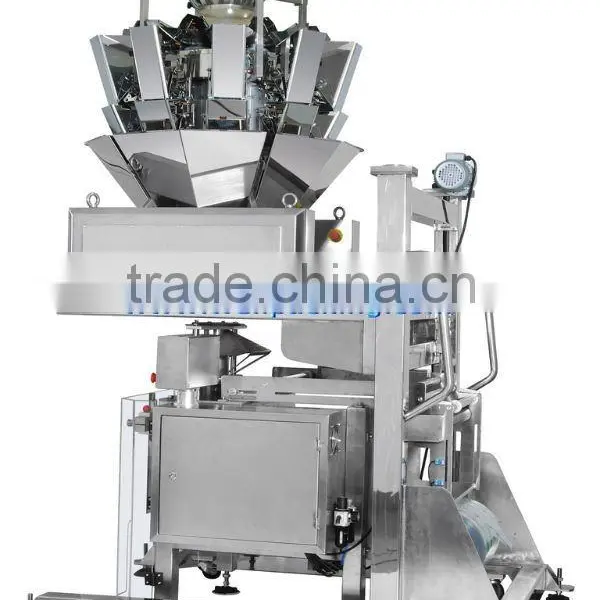

* VIP6 vertical packaging machine is the main and hot-sale product produced by VANWELL, to meet the request of higher level machines in the market.Its advantages include: Compact and strong design,friendly and easy control panel,Big size bag packing and stable running quality, and more…
* Applicable scope:
1,Solid Species Candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food etc.
2,Granule Species Grain, refined monosodium glutamate, granular drug, capsule, seed, chemistry condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.
3,Powder species milk powder, grape sugar, washing powder, chemistry condiment, refined sugar, pesticide, fertilizer etc.
4,Liquid Species & Thick liquid Species detergent, millet wine, soy sauce, vinegar, fruit juice, drink, tomato sauce, peanut butter, Jam, chili sauce, bean sauce etc.
* Features:
1.The newest popular design with strong construction;
2.Compact size allow more flexible applications and saving room;
3.With two more small wheels on each side to make the belt-driving more stable and produce perfect bags.
4.Pneumatic sealing system;
5.Film pulling system controlled by servo motor;
6.Human-friendly PLC control panel which greatly improves control precision, adjusting range, dependability and intelligence of the machine.,
7.Safe protection cover, meets CE-standard;
8.Make gusset bags and hanging hole bags according to customer's different requirement;
9.Double-belt transportation, placidly and quickly, small friction, little waste.
* Specification:
Items |
VIP6 compact VFFS |
Capacity |
20-60 bag/min (Dual servo upto 100 BPM) |
Bag size |
(L)120-200mm (W)120-300mm |
Bag type |
Pillow-type bag ,Gusset bag,PE bag |
Drive mode |
Single or dual servo motor |
Max film width |
Max 620mm |
Film thickness |
0.04-0.09mm |
Air consumption |
0.8Mps 0.4m3/min |
Main power/voltage |
2.5KW/ 220V 50Hz |
* Bag style:
1.Pillow bag
2.Gusset bag
3.Flat bottom bag
4.Punch bag and more...
* Optional:
1.Dual servo motor system
2.Bag support device
3.Gusset Device
4.PE Film Sealing System
5.Air Expeller
6.Hole Punch Device
7.Safety Switch and more...
More information please visit website:
