CNC controller Lathe machine /Cnc Milling Machine

Name: CNC controller Lathe machine /Cnc Milling Machine
Brand: HaiNa
Price: USD $35,000 - 37,000 / Set

FOB Price

USD $35,000 - $37,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, Longitudinal	CNC or Not:	CNC
Automatic Grade:	Automatic	Place of Origin:	Christmas Island	Brand Name:	HaiNa
Model Number:	CNC-20 F	Voltage:	380v	Power(W):	6kw
Dimension(LWH):	13808401480mm	Weight:	1750kg	Certification:	ISO:9001
After-sales Service Provided:	Overseas third-party support available

Product Description

Specifications

1 high efficiency,reasonable structure
Precision Lathe Operations on a CNC Mill

Parts	Type Items	CNC-20F
Main Parameter	Maximum diameter of processing the bar	Φ20
	Maximum length of processing parts	170
	Maximum drilling diameter	Φ6 / Φ8
	Maximum axial tapping screw	M6/CU M8 / M6/CU M10
	Total power	6KW
Spindle Parameter	Spindle speed range	200-10000r/min
	Spindle rotatable	Infinitely variable
	Height from Spindle center to table	950mm
	Spindle motor power	3KW
Feed section Parameter	X-axis screw specifications	1605
	Y / Z axis screw specifications	2010
	X / Y axis rails Specifications	20
	Z axis rails Specifications	25
	X(with holding brake),Y,Z axis Servo motor rated torque	0.75kw
Toolholder Partial Parameters	External Turning Tool	5 pieces
	External Turning Tool Specifications	10×10×120
	Non-rotating hole processing tool	ER16(4 pieces)
	Lateral rotary power tool	ER16(4 pieces)
	Dynamic milling head Power	0.4KW
	Dynamic milling head SpeedRange	50-4000(Servo)
Others	Lubrication pump power	25W
Others	Cooling system motor power	0.25KW

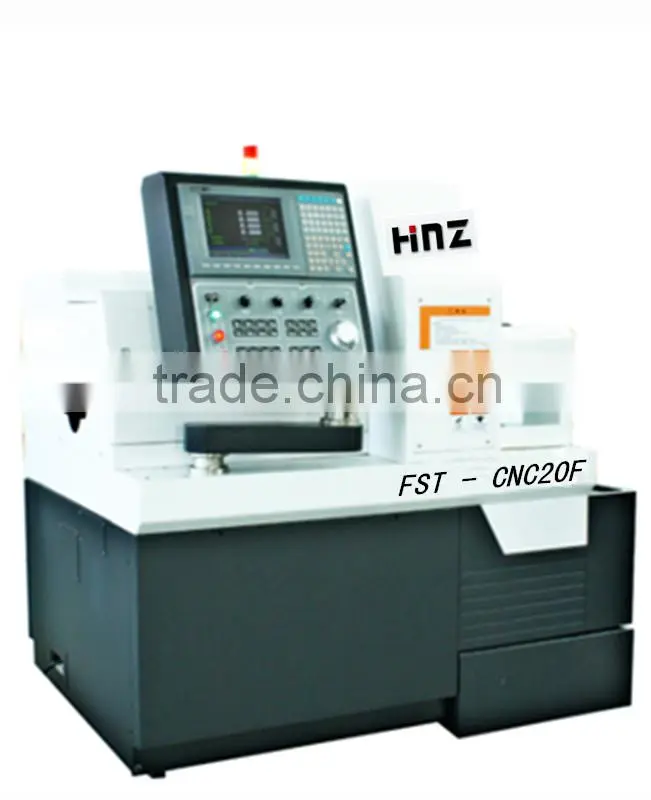

CNC-20 F series precision CNC Longitudinal turning and milling complex lathe

Precision Lathe Operations on a CNC Mill

CNC Mill Turn
