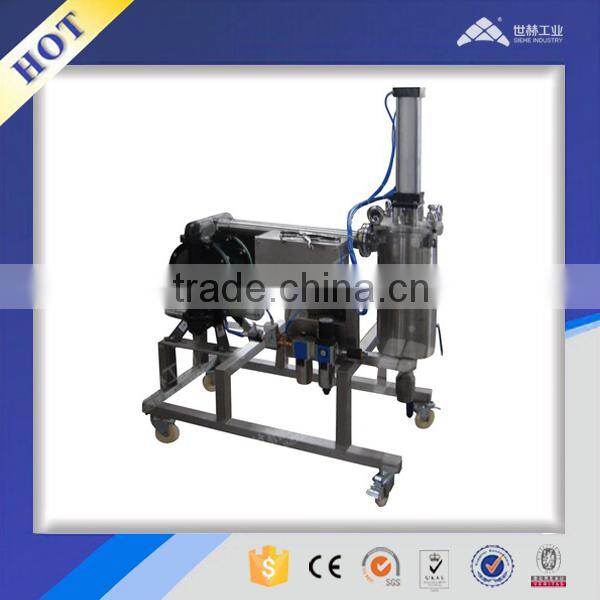

Industrial Micro Type Disc Self-cleaning Filter
Disc type Selfcleaning Filter is able to auto remove the particles accumulated on filtration surface through high efficient mechanical scraping type. And auto discharge the liquid with high impurity concentration collected inside the chamber through the time difference and pressure difference controlled by PLC. The discharged liquid can be recycled or disposed.
Working principle
Cleaning disc with spring moving up and down inside the filtration screen removes the impurity on the screen. Filtration liquid enters from the top to bottom, filtrate from the inside to outside of the screen. The impurities remain on the surface of the screen, easy to remove, collected to the collecting room. When it moves downward, all the impurities will be removed by the disc to the collecting room. When it moves upward, the disc remove the impurities from the screen surface and the liquid drives the impurities, go through the disc and enters to the collecting room to discharge the waste.
WHY US
| Better Sealing | Scraper type Selfcleaning Filter from Siehe Industry is with special sealing structure, combining with special sealing ring and special mouth of the filter bag, it can avoid any possible materials leakage. |
Longer service life in term of using | The possibility of reusing the filtration element is up to more than 95%, which solves the problem of the manual type filter. The manual one is blocked frequently and shall be replace and cleaned frequently, which it is labor consuming, serious materials waste and also costly. |
Higher filtration accuracy, wider application range | With high filtration accuracy, suitable for tiny particles or suspensions, filtration range can be from 20-3500 micron. |
Higher automation level |
It adopts fully automatic online continuous filtration to meet operation requirement of processing automation. With PLC control to realize following functions: Pressure difference selfcleaning, timing selfcleaning, manual selfcleaning, pressure difference is preferred and it can be connected with the center control room. |
