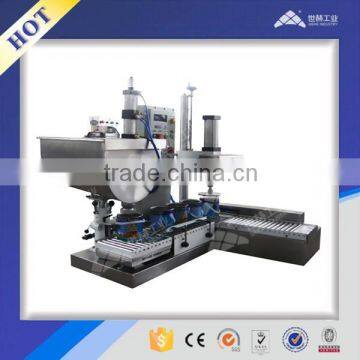

Weighing Type paint liquid Semi-automatic Filling Machine
Semiautomatic Filling Machine(Weighing Type )adopts gravimetric method to measure, by weighing sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipped with a pump in the front end of the feeding port, or pressuring the material tanks to sent material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. The equipment has advantages of high filling efficiency and small filling error. SIEHE Semiautomatic Filling Machine (Weighing Type ) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is not only suitable for the filling of liquid, but also for filling of ointment product.
Working Principle
Automatic control instrument receives weight signal from weighing sensor to control charging valve’s opening (0-90 degrees), to achieve the purpose of automatic filling; with a roller conveyor and lid-pressing/clamping device, the machine complete the material filling and sealing process.
WHY US
Filling quickly, wide application
Filling head can choose single or double , adopting double speed (slow and fast) filling, to effectively improve the filling speed, cost savings, and reduce the workers’ work pressure; Due to the weighing type design, it is suitable for round, square, flat and various diameter of filling.
Convenient operation, easy maintenance
Personalized design, operation of the machine can be finished by one person, use the roller conveyor, and the position of the barrel can be adjust by the works, never has any influence on the filling.
Filling with high precision, high degree of intelligence
The machine adopts international famous brand, Mettler Toledo weighing sensor, accuracy of scale can reach more than two over ten thousand, thus to ensure filling accuracy; Equipped with automatic control instrument, to realize automatic feeding; With functions of boot automatically reset, automatic weight error correction, poweroff protection, fault detection function, Wrong operation restore the factory Settings, etc., the intelligent advantage is obvious.
Environmental protection index outstanding and operation safe
The feeding of filling chooses pipe connection, immediately after filling, the lidclamping and lidpressing finished quickly, less solvent evaporation, and the environment is good; And explosion-proof type filling machine can be customized.
Other Specifications
Model |
Power Supply |
Air Source (MPa) |
Filling Range (kg) |
Filling Speed (Can/min) |
Division Value (g) |
Material |
Barrel Spec (mm) |
Filling Accuracy (kw) |
Roller Height (mm) |
Gland Way |
SGZ-5 |
220V,50HZ |
0.5 |
≤5 |
12-20 |
2/5 |
Material Contact SS304 Stainless Steel |
≤Ø200*300 |
±0.2% |
470 |
clamping/ pressing lid |
SGZ-30 |
220V,50HZ |
0.5 |
≤30 |
5-12 |
10 |
Material Contact SS304 Stainless Steel |
≤Ø350*400 |
±0.2% |
600 |
clamping/ pressing lid |
SGZ-50 |
220V,50HZ |
0.5 |
≤50 |
5-12 |
10 |
Material Contact SS304 Stainless Steel |
≤Ø350*400 |
±0.2% |
600 |
clamping/ pressing lid |
