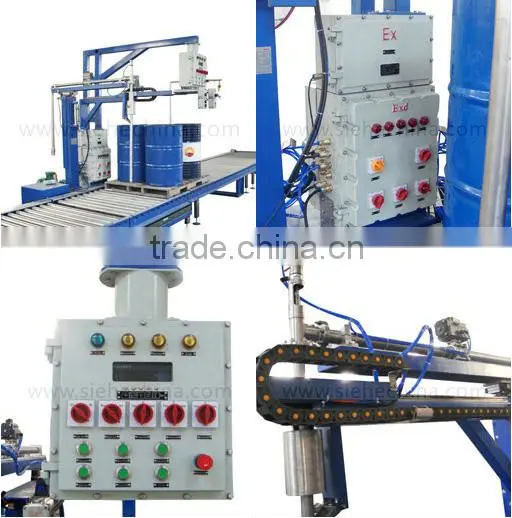

Automatic Barrel liquid Filling Machine
Introduction
Automatic Filling Machine (Four Drums) consists of the following: Automatic drum-in and drum-out convey system, materials automatic convey system, filtration system, automatic filling and weighing system, pending corridor and operation platform, control system etc. The whole system realizes the flow as follows: Automatic Drum-in---Automatic Tare Off---Mouth Searching---Automatic Filling Head Descending---Fast Speed Filling---Low Speed Accurate Filling---Automatic Filling Head Ascending after filling---Mouth Searching Again---Four Drum Filling Finishes---Automatic Drum-out---New Empty Drum go to Filling Position.
Features
It adopts weighing type filling. It is with high measurement precision and will not be affected by materials. It consists of two filling valves (Fast Fill and Slow Fill), which not only can speed up filling speed but also improve filling accuracy. The system realizes bottom filling which effectively avoids materials-splashing and reduces the generation of air bubbles, and it lifts synchronously during filling process. Once the filling is over, the filling valve leaves the mouth of the drum, and then it goes to next process. The whole process is of high efficiency and it is easy for operation. The system adopts PLC automatic control system of internationally famous brand. It has automatic and manual modes. More than 30 group of formula can be set and stored, which greatly improves the efficiency of production, makes data management easier.
Specification
- Power supply:380V,50/60Hz, can be customized
- Filling range:≤2000kg
- Dimension of material tank:≤φ600×h930
- Filling speed:40-60drums/hr
- Filling error:±0.1%
- Filling station:Four drums
- Dimension of weighing platform:1500*1500(mm)
- Materials:The part contacting with materials is SS304 or SS316L
- Environment requirement:Explosive proof or Non explosive proof
Application
Coating, paint, adhesive etc.
Custom designs are also available.
