Yoghurt/yogurt Homogenizing Mixer

Yoghurt/yogurt Homogenizing Mixer photo-1
Yoghurt/yogurt Homogenizing Mixer photo-2
Yoghurt/yogurt Homogenizing Mixer photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Other, emulsifying machine
Product Type:
Cosmetic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Other, emulsifying machine
Product Type Cosmetic
Application Liquid
Additional Capabilities Other, dispersing, mixing
Place of Origin Shanghai, China
Brand Name Siehe
Model Number SRHY
Max. Loading Capacity 5000L
Voltage 380V 50/60HZ(can be customized)
Power(W) 4-45 kw (customized)
Dimension(L*W*H) customized
Certification CE ISO BV SGS
Warranty 12 months, life long maintenance
After-sales Service Provided Engineers available to service machinery overseas

Yoghurt/yogurt homogenizing mixer





Product Description



High-shear omogenizing mixer (Hydraulic Lifting) is a batch type machine designed for big volume in industrial production.

Its working capacity is generally between 50-5000L. It narrows the particle size of Liquid-liquid and liquid-solid materials

through external mechanical force and distributes one phase materials into another phase or many other phases evenly to

realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. The

emulsifier is batch production, the working head adopt the new type of dual direction suction structure. The equipment can

 adopted to wide range viscosity and temperature, and can also customized ex-proof product.



[Production Capacity]: 50-5000L

[Applicable Materials]:Applicable for production process for solution, gel, suspension or emulsion of solid - liquid,

                                             liquid-liquid  materials such as juice, soup bases, milk production, tissue homogenate, cosmetics,

                                             surfactants, asphalt, emulsifier, oil field chemicals etc.

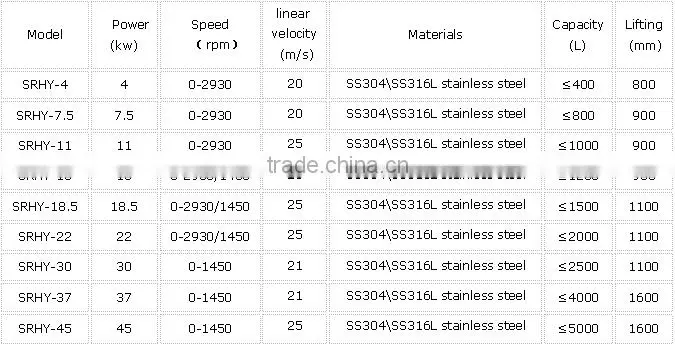

Technical Parameter



Remarks:
* The capacity is data based on water as medium. The model selection shall be based on the data such as the materials

  viscosity, density etc..

* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are

  required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
