Chilli sauce emulsifying machine
Chilli sauce High-shear Emulsifying machine (Hydraulic Lifting) is a batch type machine designed for big volume in industrial
production. Its working capacity is generally between 50-5000L. It narrows the particle size of Liquid-liquid and liquid-solid
materials through external mechanical force and distributes one phase materials into another phase or many other phases
evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion.
The emulsifier is batch production, the working head adopt the new type of dual direction suction structure. The equipment can
adopted to wide range viscosity and temperature, and can also customized ex-proof product.
[Production Capacity]: 50-5000L
[Applicable Materials]:Applicable for production process for solution, gel, suspension or emulsion of solid - liquid,
liquid-liquid materials such as juice, soup bases, milk production, tissue homogenate, cosmetics,
surfactants, asphalt, emulsifier, oil field chemicals etc.
High efficiency, high product quality
With linear velocity more than 20m/s, it can distribute one phase materials into another phase or many other phase evenly in a
short period to obtain fine homogenizing, dispersing emulsifying result. Its finished products are with stable quality and not
easy to be laminated.
High precision processing and long service life
The stator and rotor are forging materials processed in CNC machining center. The clearance between the stator and rotor is
very small to enable to get good shearing result, high emulsifying and dispersing efficiency. And the stator and rotor also can
be coated with nano materials to extend their service life.
Convenient and safe operation
Adopt hydraulic tank as lifting actuator. Control the hydraulic up, stop, down through the oil pump, easy operation and stable.
The emulsifying head fixed with the main shaft by hexagon socket screw, can be easily disassemble and replace. It is easy to
clean, and can change to different emulsifying head to achieve the best emulsifying and homogenizing effect. With different
clamping types to fix the tanks properly to prevent from accident due to the tank displacement during operation.
Customized options
Different options are available such as explosion-proof type, closed type, dual-shaft compound type, multi-tanks type, etc..
Material can be customized to be SS304 SS316L , coated with anti-corrosive and durable coating.
Remarks:
* The capacity is data based on water as medium. The model selection shall be based on the data such as the materials
viscosity, density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details
are required for correct model selection.

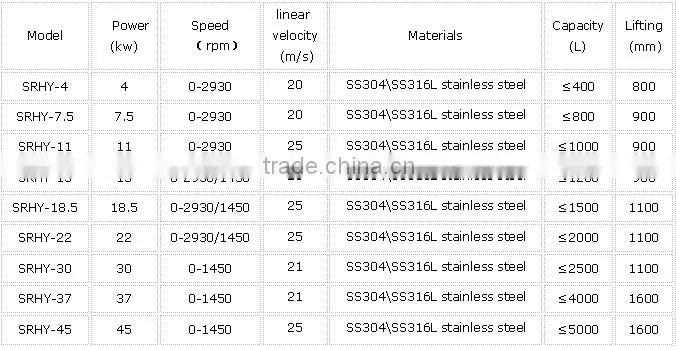

* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
