Home > Products > Emulsifiers > Mayonnaise homogenizing mixer

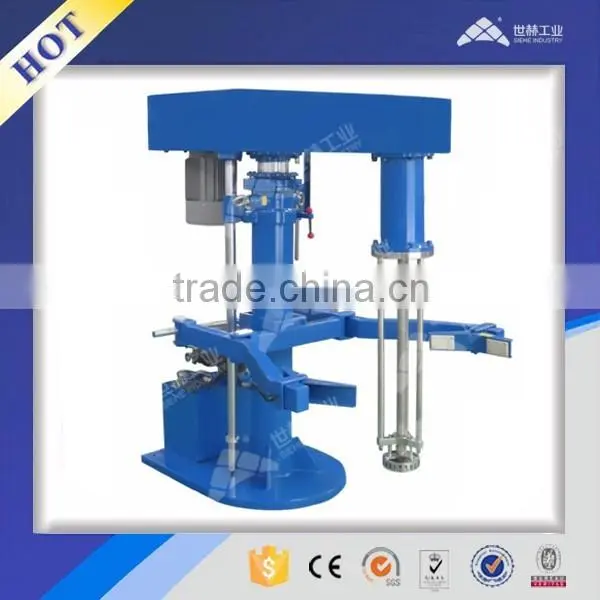

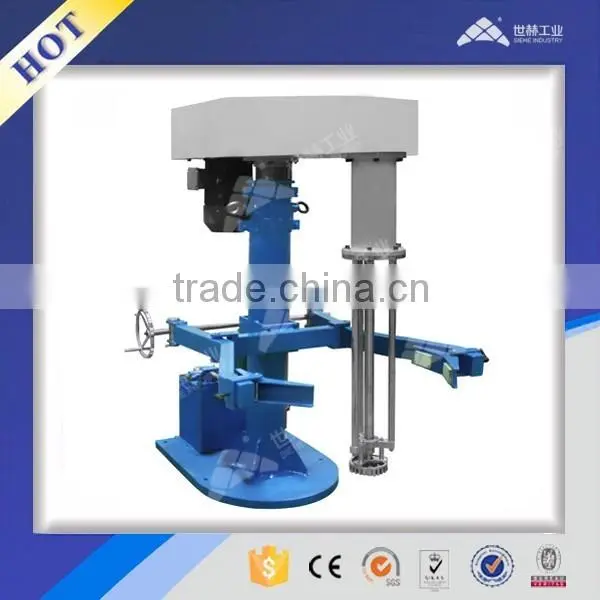

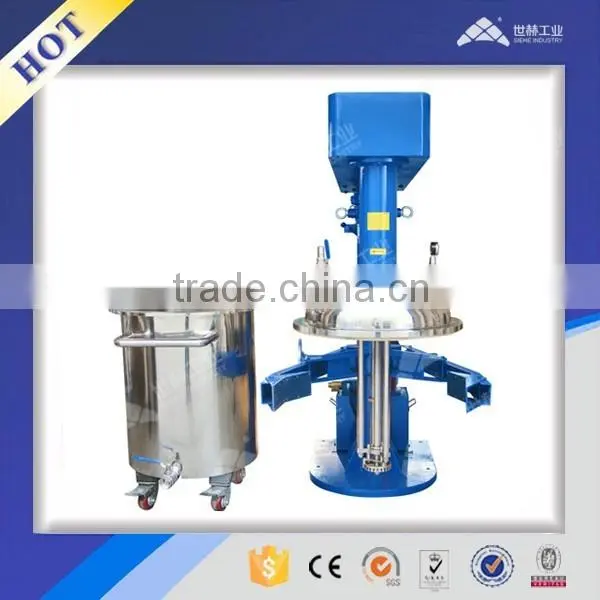

Mayonnaise homogenizing mixer
- 20 Set / Sets per Month
- Shanghai Port
- T/T
You May Like
Product Details
| Condition | New | Mixer Type | Other, emulsifying machine | |
| Product Type | Cosmetic | Application | Liquid | |
| Additional Capabilities | Other, dispersing, mixing | Place of Origin | Shanghai, China | |
| Brand Name | Siehe | Model Number | SRHY | |
| Max. Loading Capacity | 5000L | Voltage | 380V 50/60HZ(can be customized) | |
| Power(W) | customized | Dimension(L*W*H) | customized | |
| Certification | CE ISO BV SGS | Warranty | 12 months, life long maintenance | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mayonnaise homogenizing machine
1. Applications
Dye & pigment, Flavors, Food, Medicine, Cosmetics, Pesticides, Lubricant, Surfactant, Oil-field Chemical etc.
2. Reference Parameter
Power Supply: 380V, 50/60Hz(Can be customized).
Speed Adjustment: Frequency Converter.
Materials: The part contacting with materials is SS304 or SS316L.
3. Main Features
a. Claw shaped workhead (Dual direction suction) is stainless steel precision forged.
b. Good gap fitness and high tip speed ensure excellent emulsifying and homogenizing effect. c. All components are processed by the imported CNC and throgh dynamic and static balance test to ensure the stable and safe operation of the equipment.
d. Hydraulic Lifting Stand is stable and flexible.
e. The whole machine looks nice and operates easily.
4. Options
Material: SS304, ss316L
Multiple mixing vessels, removable
Clamp: belt clamp, manual rotation clamp, pneumatic clamp
Simple Cover, Cover lifting together with the headstock, Cover lifted separately
Mounted on mixing kettle or tank
Pressurized, Vacuumized
Explosion proof configuration
Model | Power (kw) | Speed (rpm) | linear velocity (m/s) | Materials | Capacity (L) | Lifting (mm) |
SRHY-4 | 4 | 0-2930 | 20 | SS304SS316L stainless steel | ≤400 | 800 |
SRHY-7.5 | 7.5 | 0-2930 | 20 | SS304SS316L stainless steel | ≤800 | 900 |
SRHY-11 | 11 | 0-2930 | 25 | SS304SS316L stainless steel | ≤1000 | 900 |
SRHY-15 | 15 | 0-2930/1450 | 25 | SS304SS316L stainless steel | ≤1200 | 900 |
SRHY-18.5 | 18.5 | 0-2930/1450 | 25 | SS304SS316L stainless steel | ≤1500 | 1100 |
SRHY-22 | 22 | 0-2930/1450 | 25 | SS304SS316L stainless steel | ≤2000 | 1100 |
SRHY-30 | 30 | 0-1450 | 21 | SS304SS316L stainless steel | ≤2500 | 1100 |
SRHY-37 | 37 | 0-1450 | 21 | SS304SS316L stainless steel | ≤4000 | 1600 |
SRHY-45 | 45 | 0-1450 | 25 | SS304SS316L stainless steel | ≤5000 | 1600 |
Remarks:
* The capacity is data based on water as medium. The model selection shall be based on the data such as the materials
viscosity, density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are
required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
