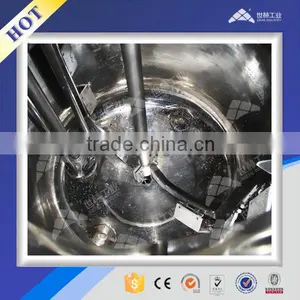

Juice homogenizing machine
Juice homogenizing machine narrows the particle size of liquid-liquid and liquid-solid materials through external mechanical
force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing,
dispersing and emulsifying result. As a result, the materials form a stable emulsion state. Juice homogenizing machine is a
batch type machine. The working head adopted new type of dual direction suction structure, and can have top, side and bottom
installation position. The equipment can combined with different agitators like dispersing and mixing, which realizing one
machine has multi-functions. The equipment can adopted to wide range viscosity and temperature, and it is fit for working
condition 100mbar vacuum, ex-proof (ATEX), and highest pressure 10bar.
[Materials Viscosity]: ≤10000 cps
[Production Capacity]: ≤10m³/batch
[Applicable Materials]:Applicable for solution, gel, suspension or emulsion of solid - liquid, liquid- liquid materials such as
juice, soup bases, milk production, tissue homogenate, cosmetics, surfactants, asphalt, emulsifier, oil field chemicals etc.
Model |
Power (kw) |
Capacity (L/batch) |
Speed |
linear velocity (m/s) |
Sealing type |
Materials |
SRH-4 |
4 |
≤400 |
0-2930 |
20 |
Lip seal/mechanical seals |
SS304/316L |
SRH-7.5 |
7.5 |
≤800 |
0-2930 |
20 |
Lip seal/mechanical seals |
SS304/316L |
SRH-11 |
11 |
≤1000 |
0-2930 |
25 |
Lip seal/mechanical seals |
SS304/316L |
SRH-15 |
15 |
≤1200 |
0-2930/1450 |
25 |
Lip seal/mechanical seals |
SS304/316L |
SRH-18.5 |
18.5 |
≤1500 |
0-2930/1450 |
25 |
Lip seal/mechanical seals |
SS304/316L |
SRH-22 |
22 |
≤2000 |
0-2930/1450 |
25 |
Lip seal/mechanical seals |
SS304/316L |
SRH-30 |
30 |
≤2500 |
0-1450 |
21 |
Lip seal/mechanical seals |
SS304/316L |
SRH-37 |
37 |
≤4000 |
0-1450 |
21 |
Lip seal/mechanical seals |
SS304/316L |
SRH-45 |
45 |
≤5000 |
0-1450 |
25 |
Lip seal/mechanical seals |
SS304/316L |
SRH-55 |
55 |
≤5000 |
0-1450 |
26 |
Lip seal/mechanical seals |
SS304/316L |
SRH-75 |
75 |
≤8000 |
0-1450 |
26 |
Lip seal/mechanical seals |
SS304/316L |
SRH-90 |
90 |
≤10000 |
0-1000 |
23 |
Lip seal/mechanical seals |
SS304/316L |
SRH-110 |
110 |
≤12000 |
0-1000 |
21 |
Lip seal/mechanical seals |
SS304/316L |
Remarks:
* The capacity is data based on water as medium. The model selection shall be based on the data such as the materials viscosity,
density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are
required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
