Hydraulic Lifting High Shear Emulsifier :
1. Introduction
High-shear Emulsifier(Hydraulic Lifting) is a batch type machine designed for big volume in industrial production. Its working capacity is generally between 50-5000L. It narrows the particle size of Liquid-liquid and liquid-solid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. The emulsifier is batch production, the working head adopt the new type of dual direction suction structure. The equipment can adopted to wide range viscosity and temperature, and can also customized ex-proof product.
[Materials Viscosity]: ≤5000 cps
[Production Capacity]: 50-5000L
[Application Industry]: Suitable for dispersing, emulsifying and homogenizing materials in industries such as biology, pharmacy, food, ink, textile auxiliary, cosmetic lubricating oil and fertilizer etc..
[Applicable Materials]:Applicable for production process for solution, gel, suspension or emulsion of solid - liquid, liquid- liquid materials such as juice, soup bases, milk production, tissue homogenate, cosmetics, surfactants, asphalt, emulsifier, oil field chemicals etc.
2. Technical Parameter:
Model |
Power (kw) |
Capacity (L) |
Rotation Speed (rpm) |
Stroke (mm) |
SRHY-4 |
4 |
≤400 |
0-2930 |
800 |
SRHY-7.5 |
7.5 |
≤800 |
0-2930 |
900 |
SRHY-11 |
11 |
≤1000 |
0-2930 |
900 |
SRHY-15 |
15 |
≤1200 |
0-2930/1450 |
900 |
SRHY-18.5 |
18.5 |
≤1500 |
0-2930/1450 |
1100 |
SRHY-22 |
22 |
≤2000 |
0-2930/1450 |
1100 |
SRHY-30 |
30 |
≤2500 |
0-1450 |
1100 |
SRH-37 |
37 |
≤3000 |
0-1450 |
1600 |
SRHY-45 |
45 |
≤4000 |
0-1450 |
1600 |
SRHY-55 |
55 |
≤5000 |
0-1450 |
1600 |
SRHY-75 |
75 |
≤6000 |
0-1450 |
1800 |
Remarks:
*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object
*Not all products are listed. For more, please contact with our sales engineer

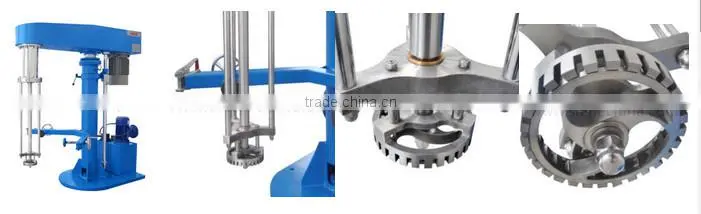

3. Pictures for reference
